Properties and application:
Internal threading toolholder
Clamping system: S
Insert type: ER16
Hardened and tempered shank up to 40 – 45HRC
Set contains clamping screw and wrench
Specifications:

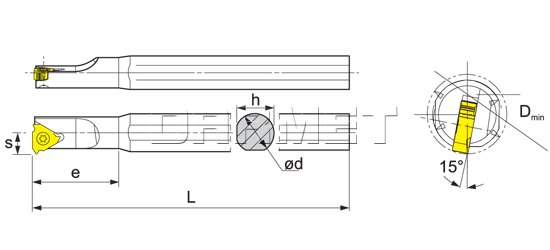

Parameter Value Unit
Indexable Threading Toolholder
Designation SIR 0016M16
d 16 mm
L 150 mm
Dmin 20 mm
s 12 mm
h 15,5 mm
e 40 mm
Insert ER16
