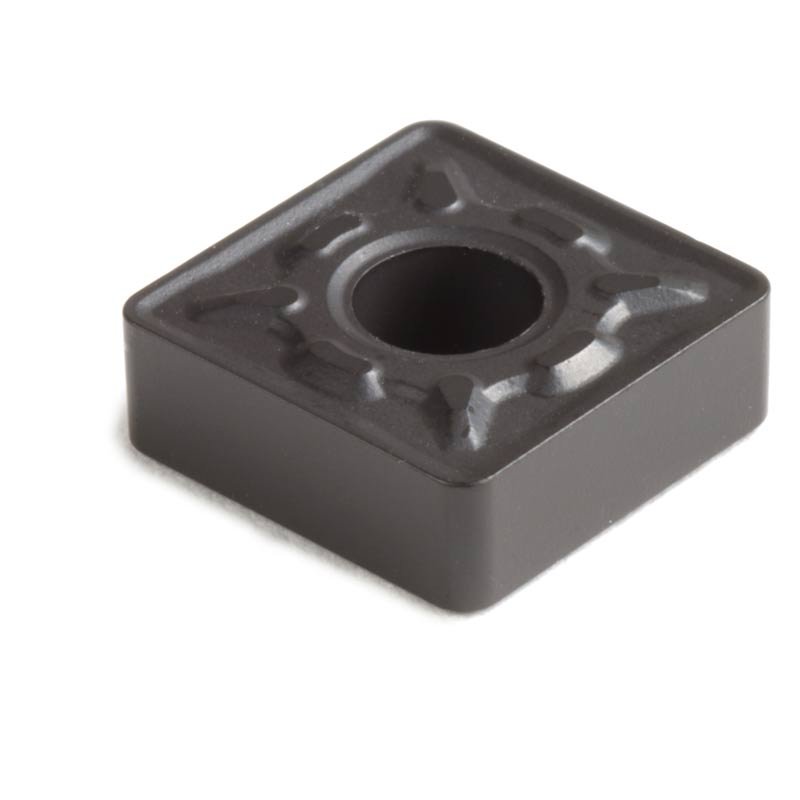

SNMG-433-EF COATED CARBIDE INSERT (6035-5432) (SKU: 6035-5432)
SNMG-432-EF Coated Carbide Insert

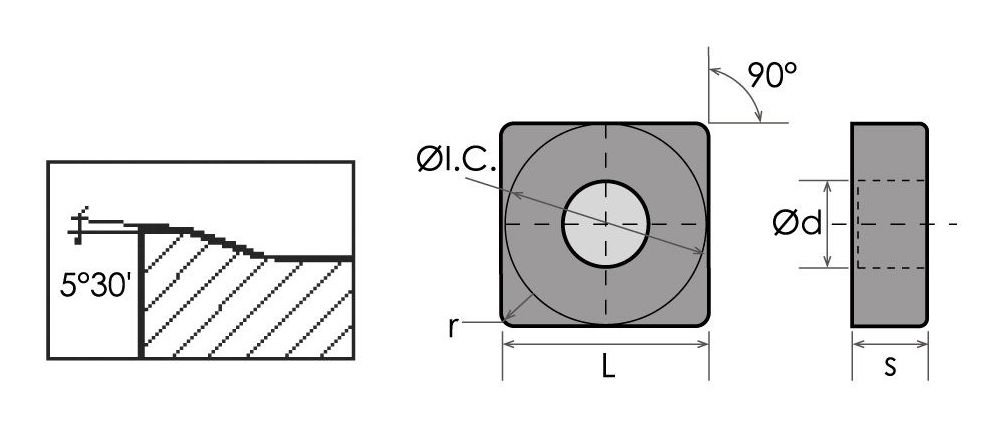

- I.C. is 1/2
- L is 1/2
- S is 3/16
- d is 13/64
- r is .0315
- ISO insert number is SNMG120408EF
- Chipbreaker has a specially designed rake angle and an inclined edge angle for machining stainless steel
- The edges are sharp making the cutting light and smooth allowing for good control of chips and a good surface quality
- Most suitable for ultra fine and fine machining of highly adhesive and plastic materials
- Grade XAF798 is a combination of 2-4 um nc-TiAIN coating and ultra-fine carbide substrate of high strength and toughness
- It is suitable for milling from light to medium load and bore machining of all kinds of materials, turning of stainless steel from finishing to semi-finishing and roughing turning of high-temperature alloys
Specifications
- SNMG-432-EF Coated Carbide Insert
- I.C. is 1/2″.
- L is 1/2″.
- S is 3/16″.
- d is 13/64″.
- r is .0472″.
- ISO insert number is SNMG120408EF.
- Chipbreaker has a specially designed rake angle and an inclined edge angle for machining stainless steel.
- The edges are sharp making the cutting light and smooth allowing for good control of chips and a good surface quality.
- Most suitable for ultra fine and fine machining of highly adhesive and plastic materials.
- Grade XAF798 is a combination of 2-4 um nc-TiAIN coating and ultra-fine carbide substrate of high strength and toughness.
- It is suitable for milling from light to medium load and bore machining of all kinds of materials, turning of stainless steel from finishing to semi-finishing and roughing turning of high-temperature alloys.
- .
- Weight: 0.02
- Dimensions: L 3, W 1, H 6
Benefits
- Industrial-grade tooling designed for dependable shop performance.
- Supports consistent results when applied with correct setup practices.
- A practical choice for U.S. machine shops and maintenance work.
Recommended use
- Confirm compatibility (size, interface, machine capacity) before ordering.
- Follow safe operating practices and use appropriate PPE.
- Optimize setup rigidity and process parameters for best results.
