SNMG-644-DR COATED CARBIDE INSERT (6049-1644) (SKU: 6049-1644)
SNMG-644-DR Coated Carbide Insert

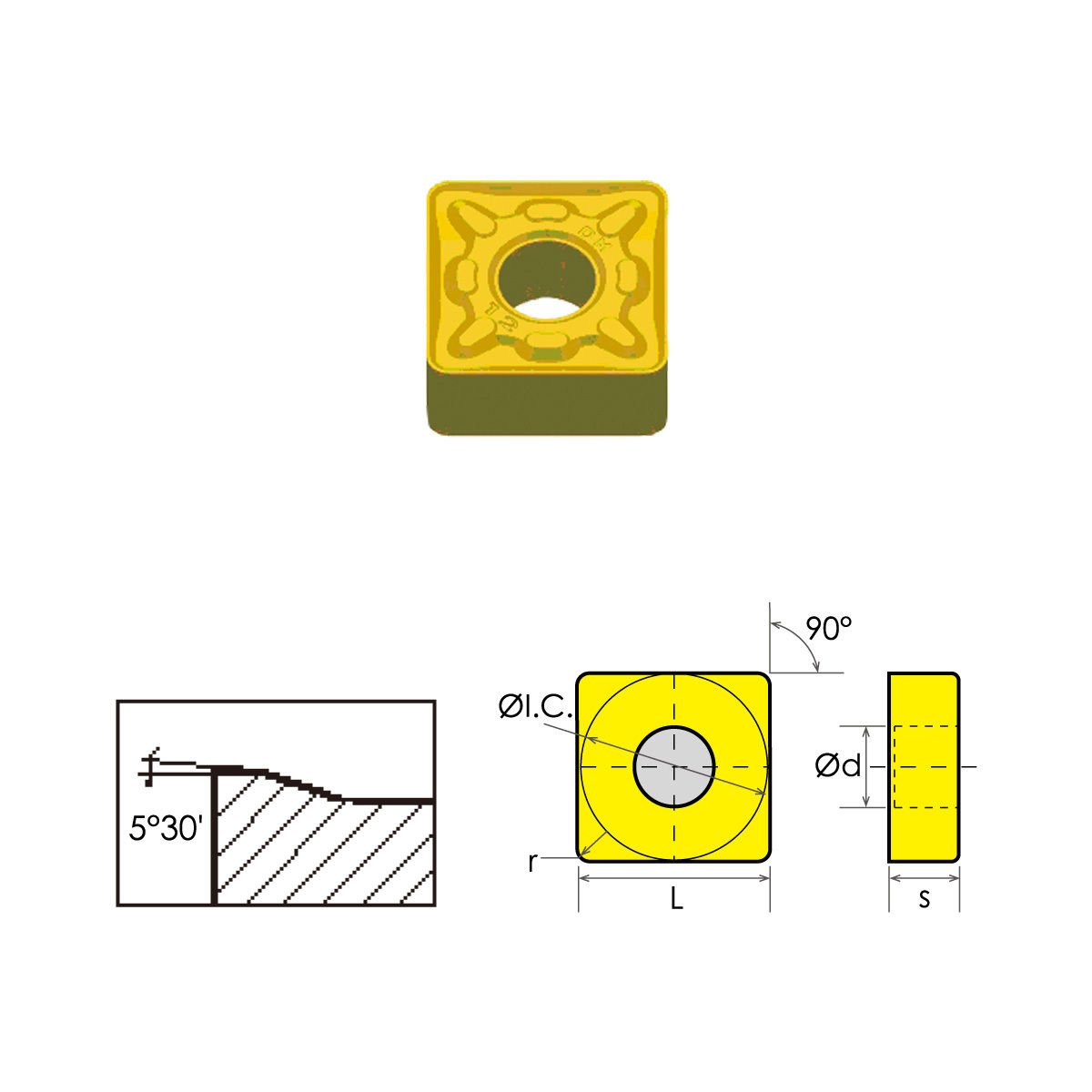

- I.C. is 3/4″
- L is 3/4″
- S is 1/4″
- d is 5/16″
- r is .0630″

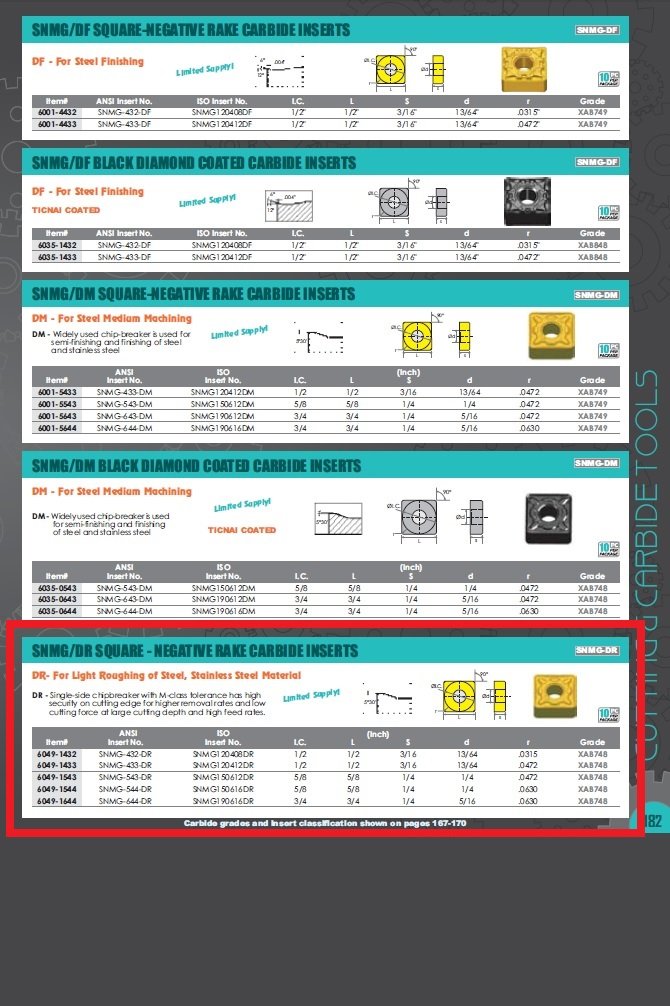

- ISO insert number is SNMG190616DR
- Perfect for light roughing of steel and stainless steel material
- Single-side chipbreaker with M-class tolerance has high security on cutting edge for higher removal rates and low cutting force at large cutting depth and high feed rates
- Grade XAB748 is made of thick TiCN and Al2O3 coating which has a high anti-plastic yield and cutting edge strength and is a preferred universal grade from steel finishing to roughing
- It holds steady in tough cutting conditions and can be used for dry-cutting
- The cutting speed can increase more than 25% under the same cutting conditions and they will last 30% longer at the same cutting speed
Specifications
- SNMG-644-DR Coated Carbide Insert
- I.C. is 3/4″.
- L is 3/4″.
- S is 1/4″.
- d is 5/16″.
- r is .0630″.
- ISO insert number is SNMG190616DR.
- Perfect for light roughing of steel and stainless steel material.
- Single-side chipbreaker with M-class tolerance has high security on cutting edge for higher removal rates and low cutting force at large cutting depth and high feed rates.
- Grade XAB748 is made of thick TiCN and Al2O3 coating which has a high anti-plastic yield and cutting edge strength and is a preferred universal grade from steel finishing to roughing.
- It holds steady in tough cutting conditions and can be used for dry-cutting.
- The cutting speed can increase more than 25% under the same cutting conditions and they will last 30% longer at the same cutting speed.
- Weight: 0.02
- Dimensions: L 3, W 1, H 6
Benefits
- Industrial-grade tooling designed for dependable shop performance.
- Supports consistent results when applied with correct setup practices.
- A practical choice for U.S. machine shops and maintenance work.
Recommended use
- Confirm compatibility (size, interface, machine capacity) before ordering.
- Follow safe operating practices and use appropriate PPE.
- Optimize setup rigidity and process parameters for best results.
