SWISS STYLE TEST INDICATOR & MAGNETIC INDICATOR HOLDER (4400-0023)

SWISS STYLE TEST INDICATOR & MAGNETIC INDICATOR HOLDER (4400-0023) (SKU: 4400-0023)

Swiss Style Test Indicator and Magnetic Indicator Holder

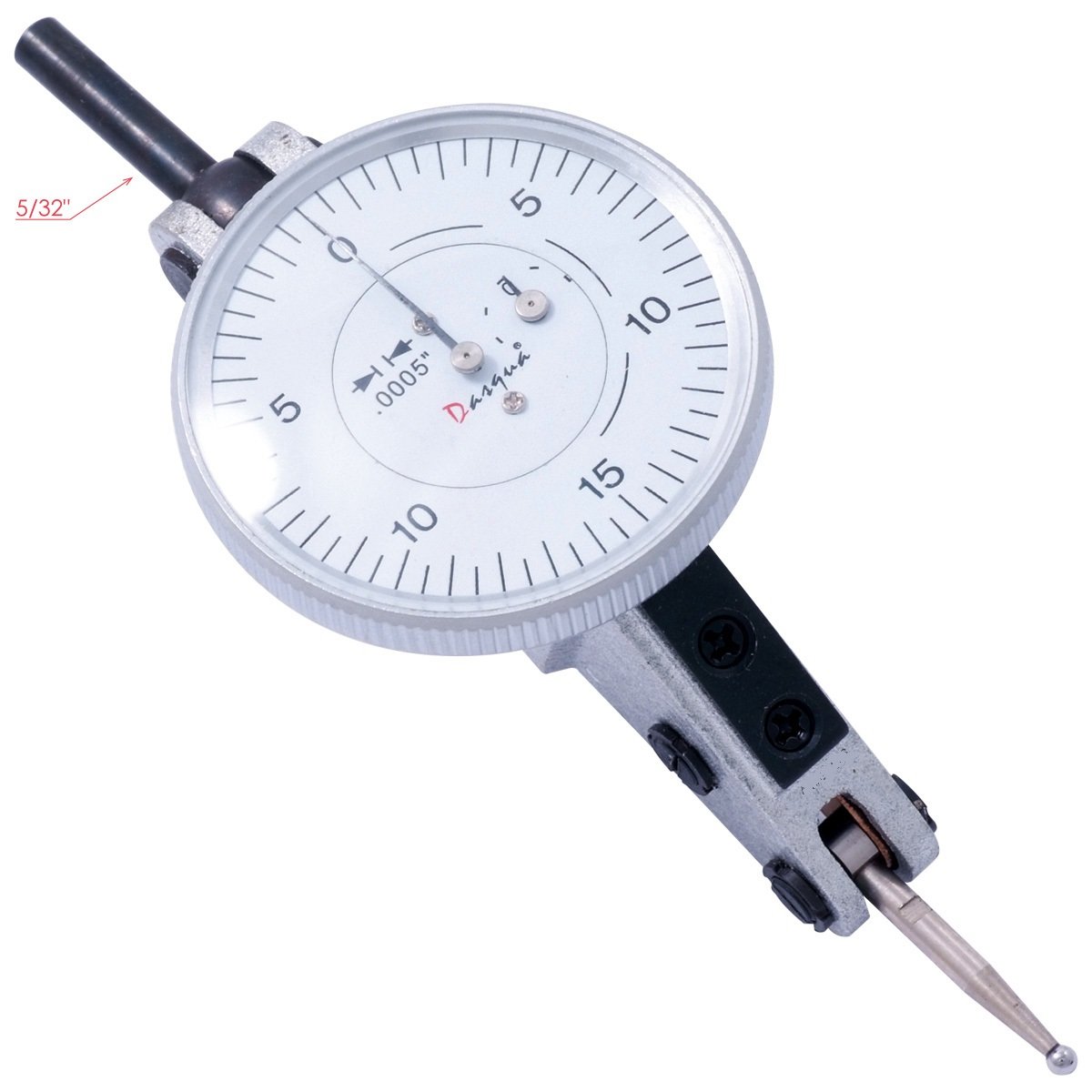

• The indicator is a horizontal dial test indicator
• This indicator has a 080″ Tungsten Carbide point
• Automatic reversal dial indicator with a dial diameter 1-1/2″
• Jeweled movement
• 210 degree swivel arc
• The dial reading is 0-15-0
• The range: 0-.060″ and the graduation is .0005″
• The dial is an easy to read tilted dial

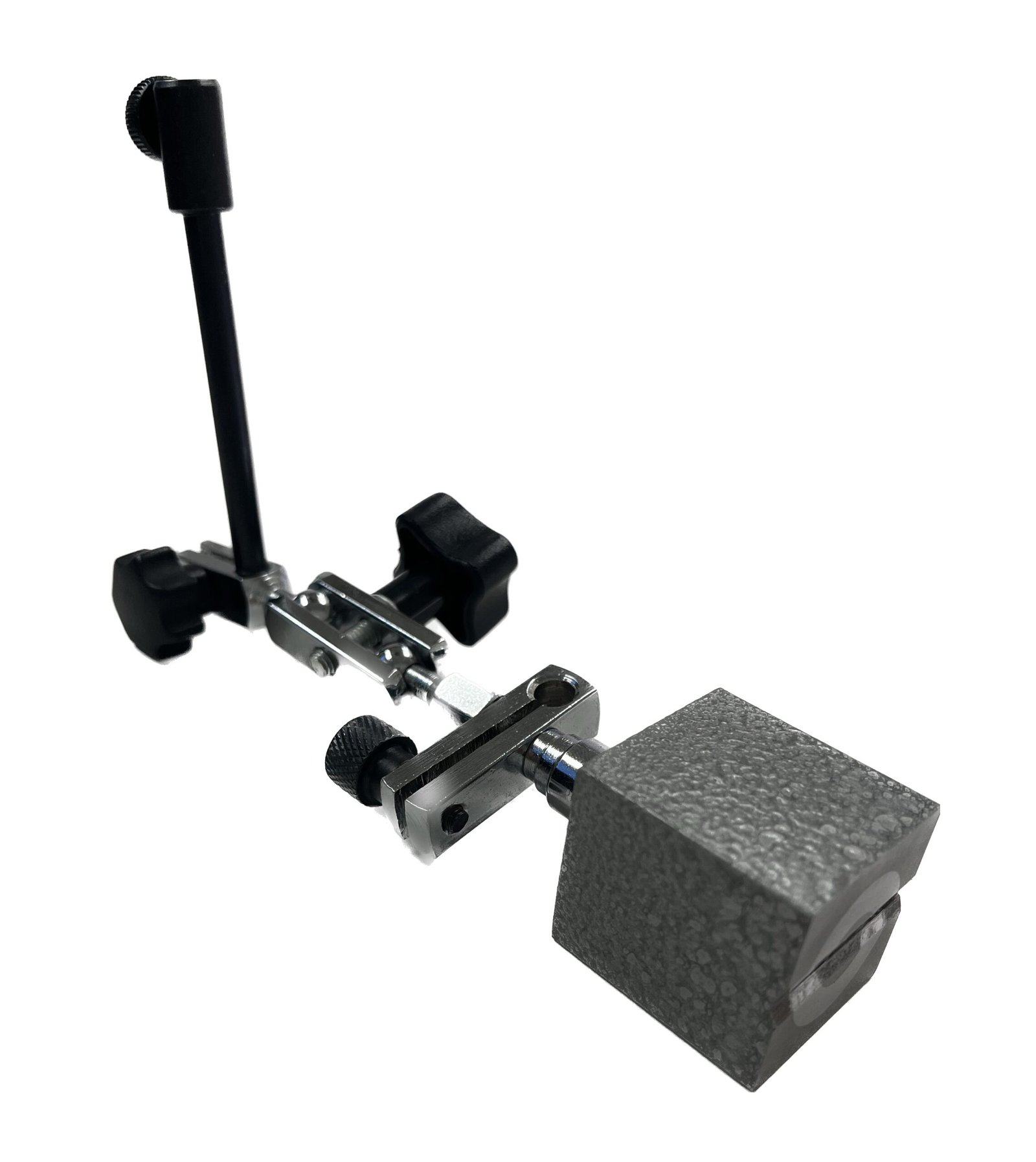

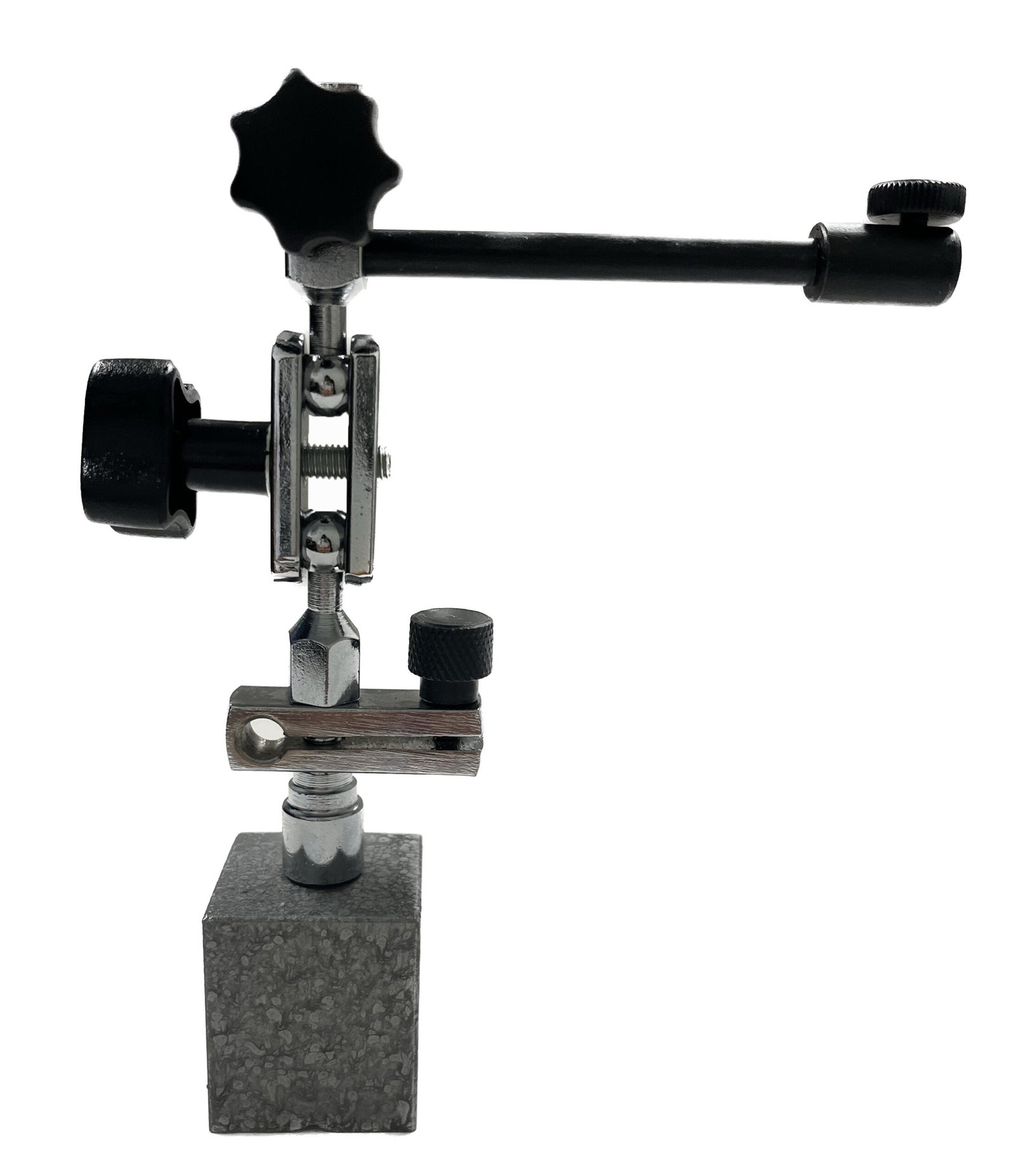

• The indicator holder has 80 lbs. magnetic pull
• The overall height is 5″
• There is a find adjustment knob and it holds most dial and test indicators
• The stem holds 3/8, 5/16, and 1/4″ diameter stems

Specifications

• Swiss Style Test Indicator and Magnetic Indicator Holder
• The indicator is a horizontal dial test indicator.
• This indicator has a 080″ Tungsten Carbide point.
• Automatic reversal dial indicator with a dial diameter of 1-1/2″.
• Jeweled movement.
• 210 degree swivel arc.
• The dial reading is 0-15-0.
• The range: 0-.060″ and the graduation is .0005″.
• The dial is an easy to read tilted dial.
• The indicator holder has 80 lbs. magnetic pull.
• The overall height is 5″.
• There is a find adjustment knob and it holds most dial and test indicators.
• The stem holds 3/8, 5/16, and 1/4″ diameter stems.
• Weight: 1.3
• Dimensions: L 6, W 8, H 3

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.
