TPGH-21.51 C-2 CARBIDE INSERT (6025-0011)

TPGH-21.51 C-2 CARBIDE INSERT (6025-0011) (SKU: 6025-0011)

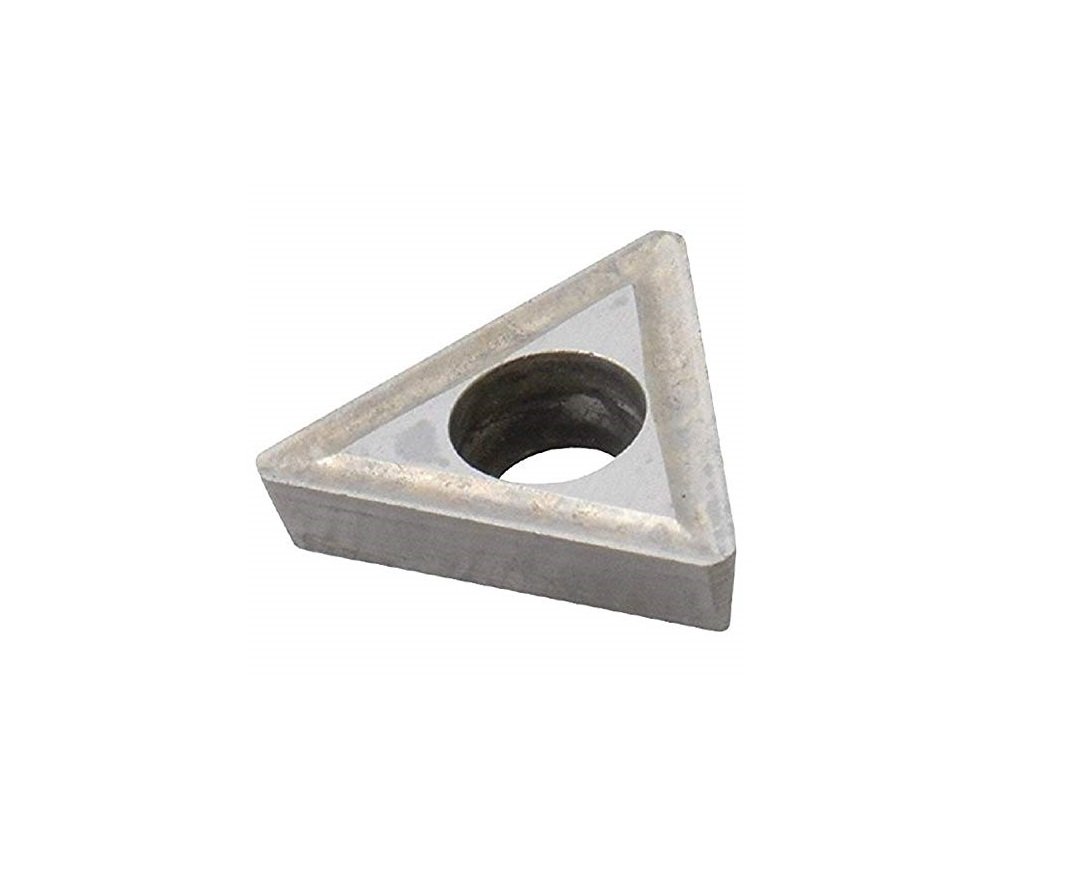

TPGH-21.51 C-2 Carbide Insert

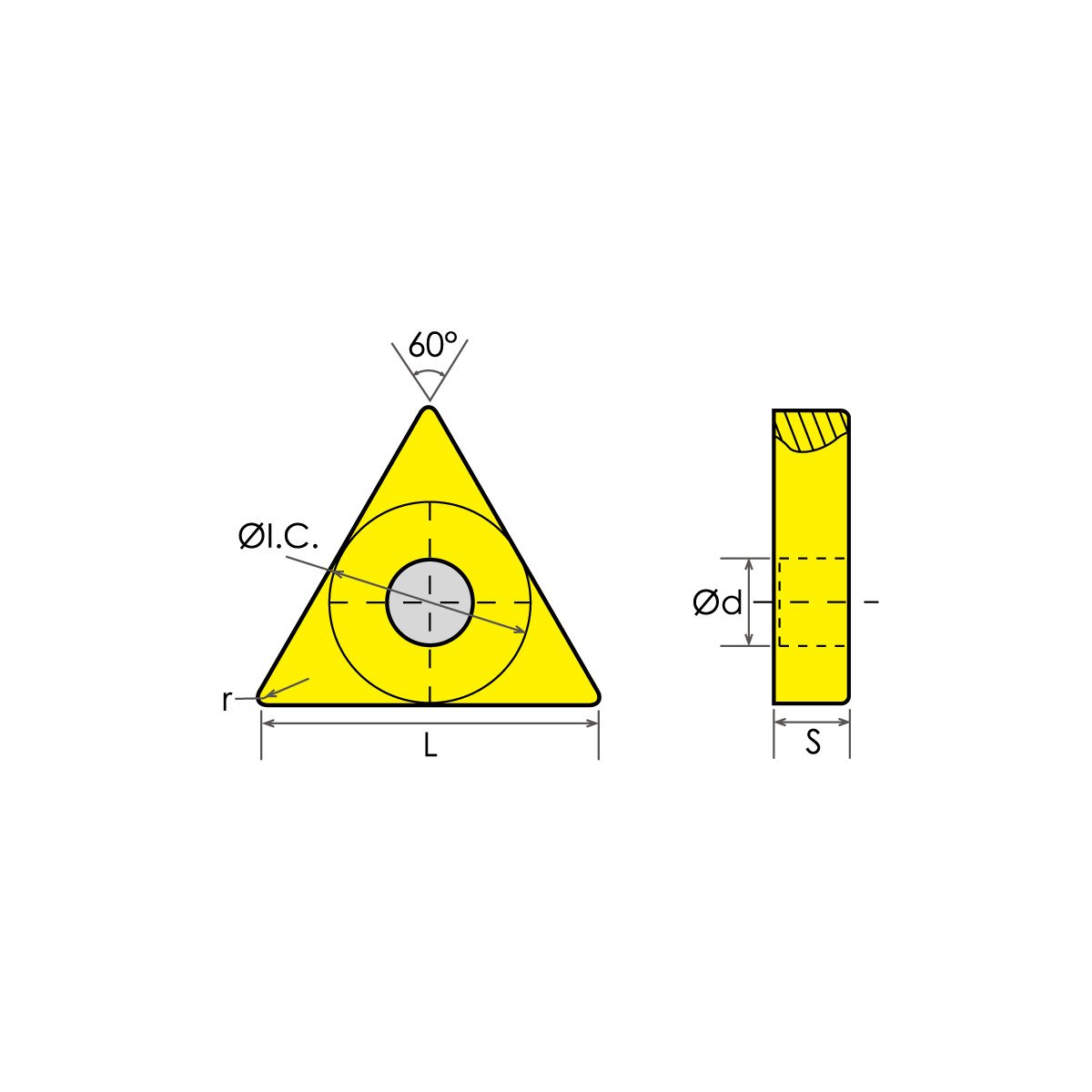

• I.C. is 1/4″
• S is 0.094″
• r is 1/64″
• d is .110″
• C-2 for general purpose work with cast iron and non-ferrous materials
• Screw on triangle style insert with a chipbreaker
• 11 degree relief angle
• ISO insert # TPGH110204

Specifications

• TPGH-21.51 C-2 Carbide Insert
• I.C. is 1/4″.
• r is 1/64″.
• S is 0.094″.
• d is .110″.
• 11 degree relief angle.
• C-2 for general purpose work with cast iron and non-ferrous materials.
• Screw on triangle style insert with a chipbreaker.
• ISO insert # TPGH110204.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
