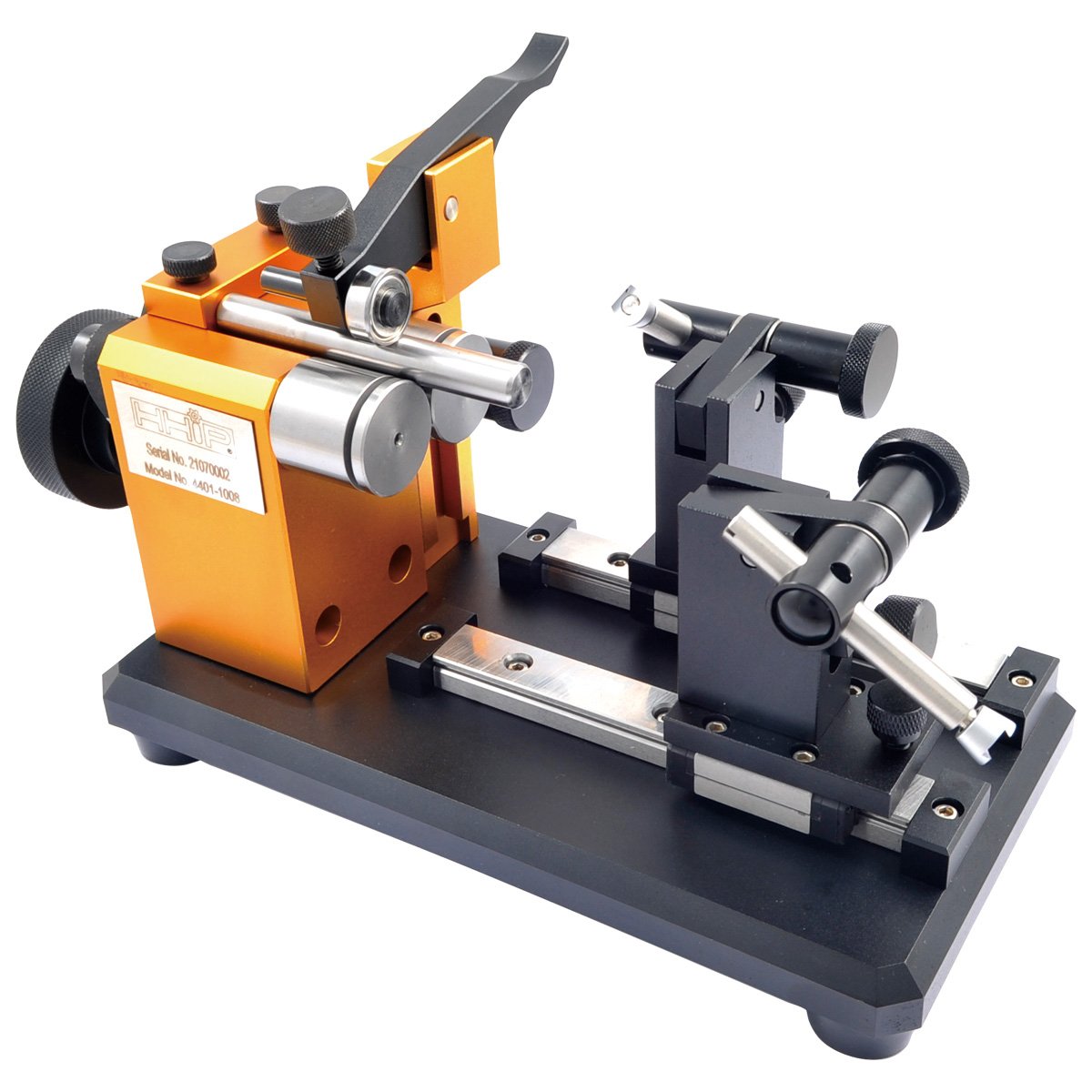

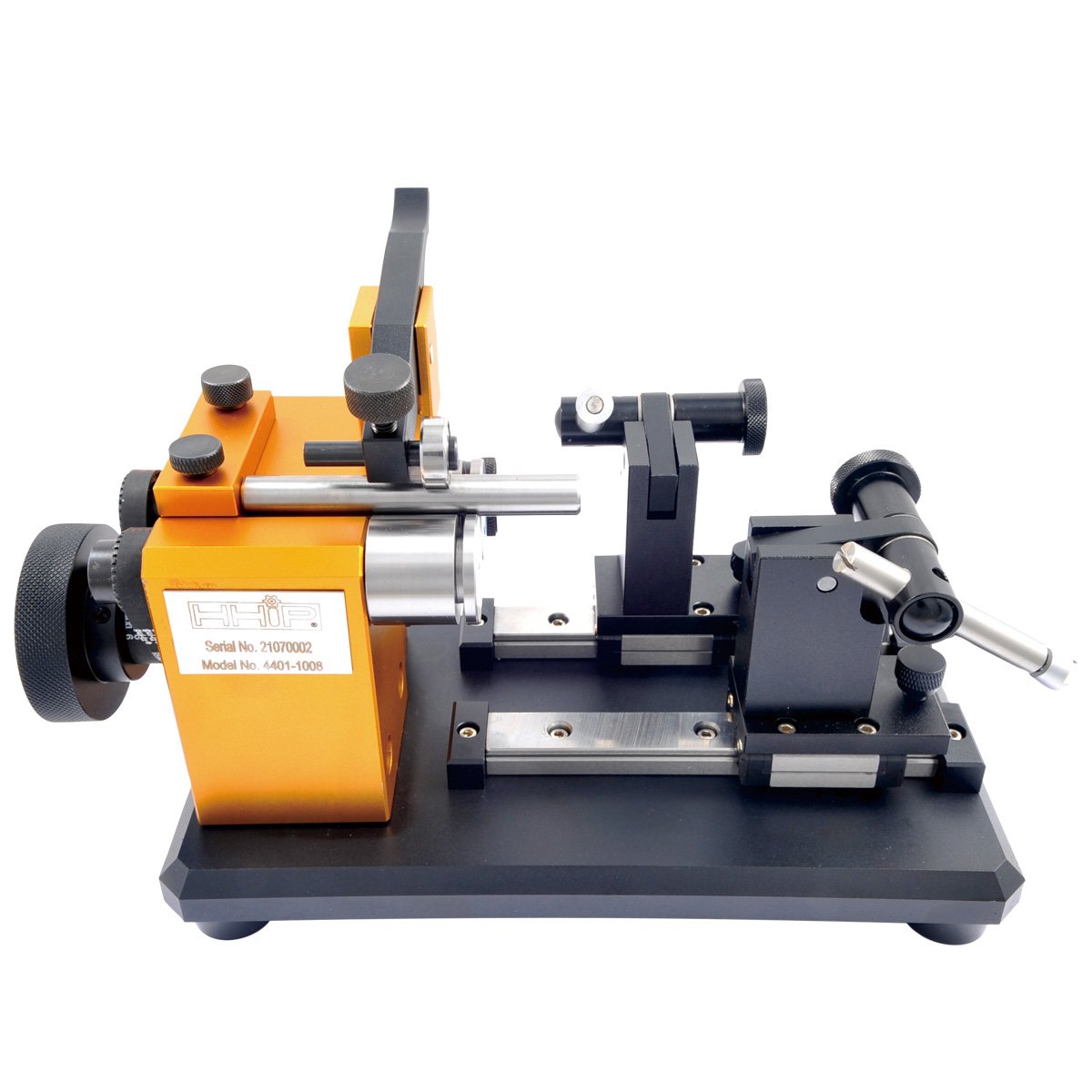

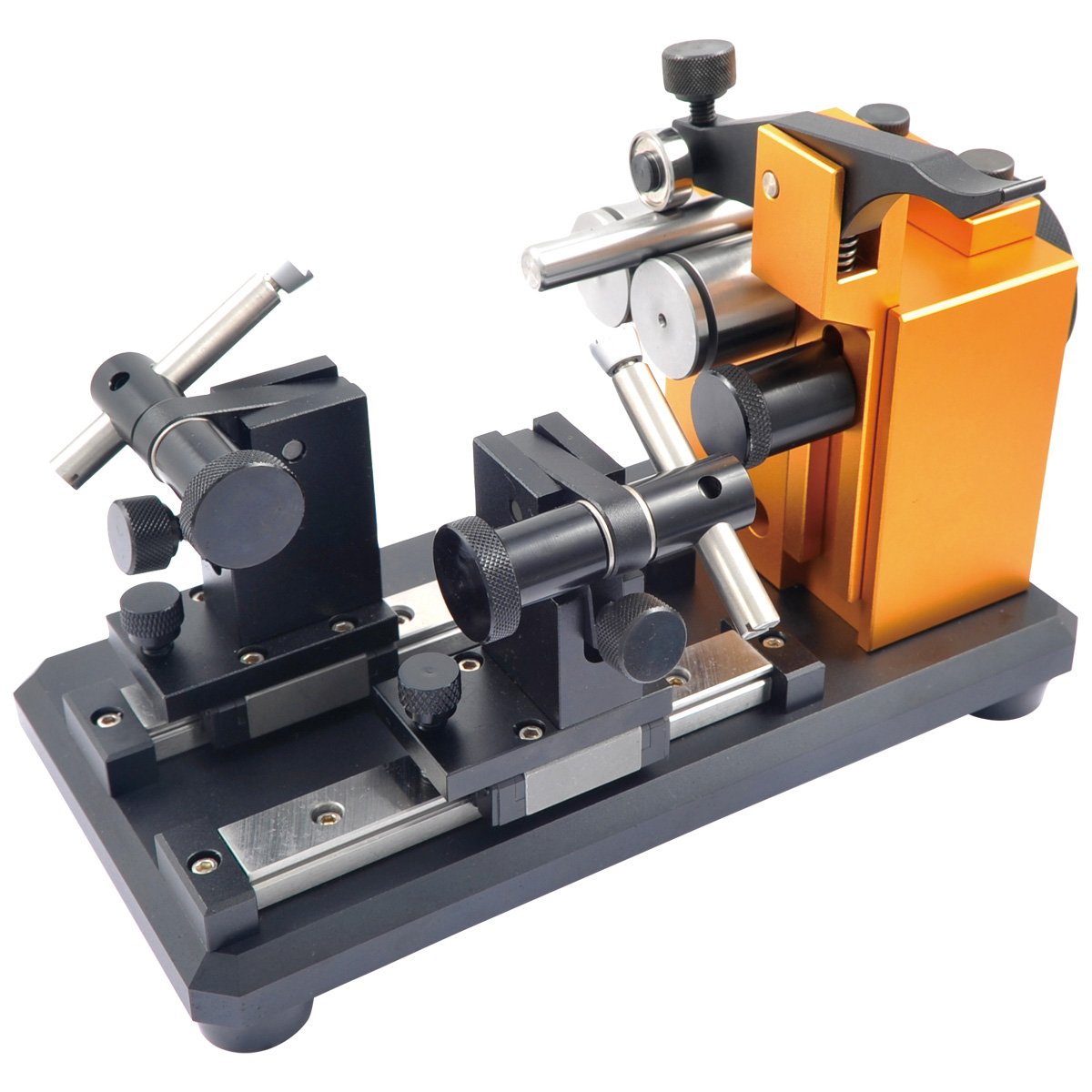

UNIVERSAL DOUBLE INDICATOR CONCENTRICITY CHECKER (4401-1008)

UNIVERSAL DOUBLE INDICATOR CONCENTRICITY CHECKER (4401-1008) (SKU: 4401-1008)

Universal Double Indicator Concentricity Checker

• Diameter capacity is 0.157-0.980″ or 4-25 mm
• Length capacity is 4″
• Accuracy is 0.00012″/ 0.003mm

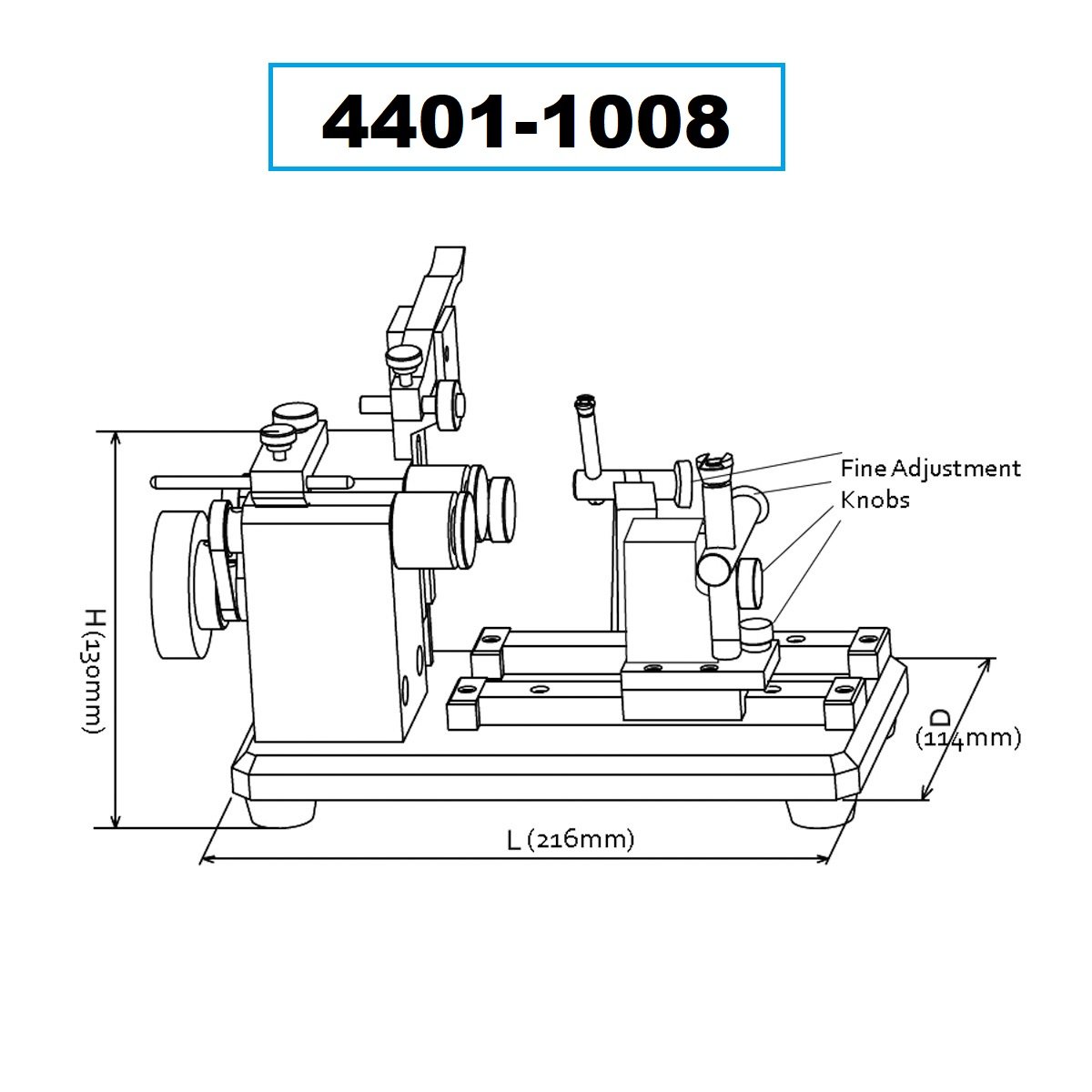

• Dimensions are 216 (length) X 114 (width) X 130mm (height)
• Concentricity Gauge allows you to measure the runout of parts internal and external
• Two position wheels made from solid steel
• Precision drive wheel has a perfect ratio to push the parts down
• Ultra high precision ball bearings provide friction free movement
• Directional drive hand wheel pushes the parts into the stop for accurate repeatable readings with equal pressure
• Heavy duty base mounted fine adjustable sliding test indicator holder that will accept test indicators with dovetail slot
• Adjustable mechanical arm stop holds the arm up for one handed operation
• 5 & 10mm diameter master setting pins are included

Specifications

• Universal Double Indicator Concentricity Checker
• Diameter capacity is 0.157-0.980″ or 4-25 mm.
• Length capacity is 4″.
• Accuracy is 0.00012″/ 0.003mm.
• Dimensions are 216 (length) X 114 (width) X 130mm (height).
• Concentricity Gauge allows you to measure the runout of parts internal and external.
• Two position wheels made from solid steel.
• Precision drive wheel has a perfect ratio to push the parts down.
• Ultra high precision ball bearings provide friction free movement.
• Directional drive hand wheel pushes the parts into the stop for accurate repeatable readings with equal pressure.
• Heavy duty base mounted fine adjustable sliding test indicator holder that will accept test indicators with dovetail slot.
• Adjustable mechanical arm stop holds the arm up for one handed operation.
• 5 & 10mm diameter master setting pins are included:.
• Weight: 11.8
• Dimensions: L 8, W 11, H 14

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.
