10″ Horizontal/Vertical Rotary Table – Vertex HV-10

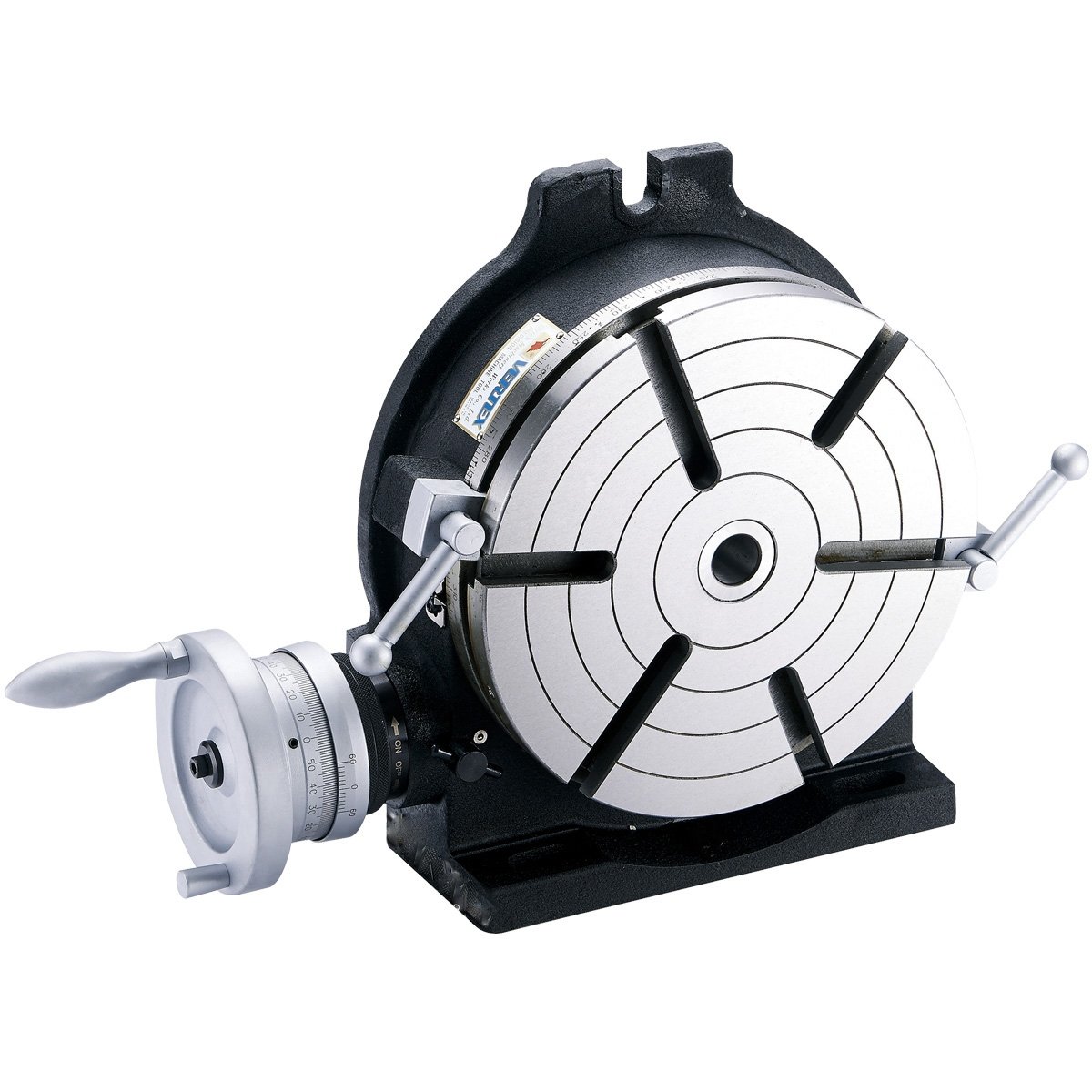

The Vertex HV-10 10-inch horizontal and vertical rotary table provides accurate workpiece positioning for milling, drilling, boring and grinding operations. Its dual-position design allows machinists to perform circular machining, angular indexing and other precision operations with the table mounted horizontally or vertically.
Manufactured in Taiwan from high-density Meehanite cast iron, the HV-10 offers the rigidity and stability required for demanding machining applications. The table surface is precision ground to help maintain accurate workpiece alignment and consistent positioning.

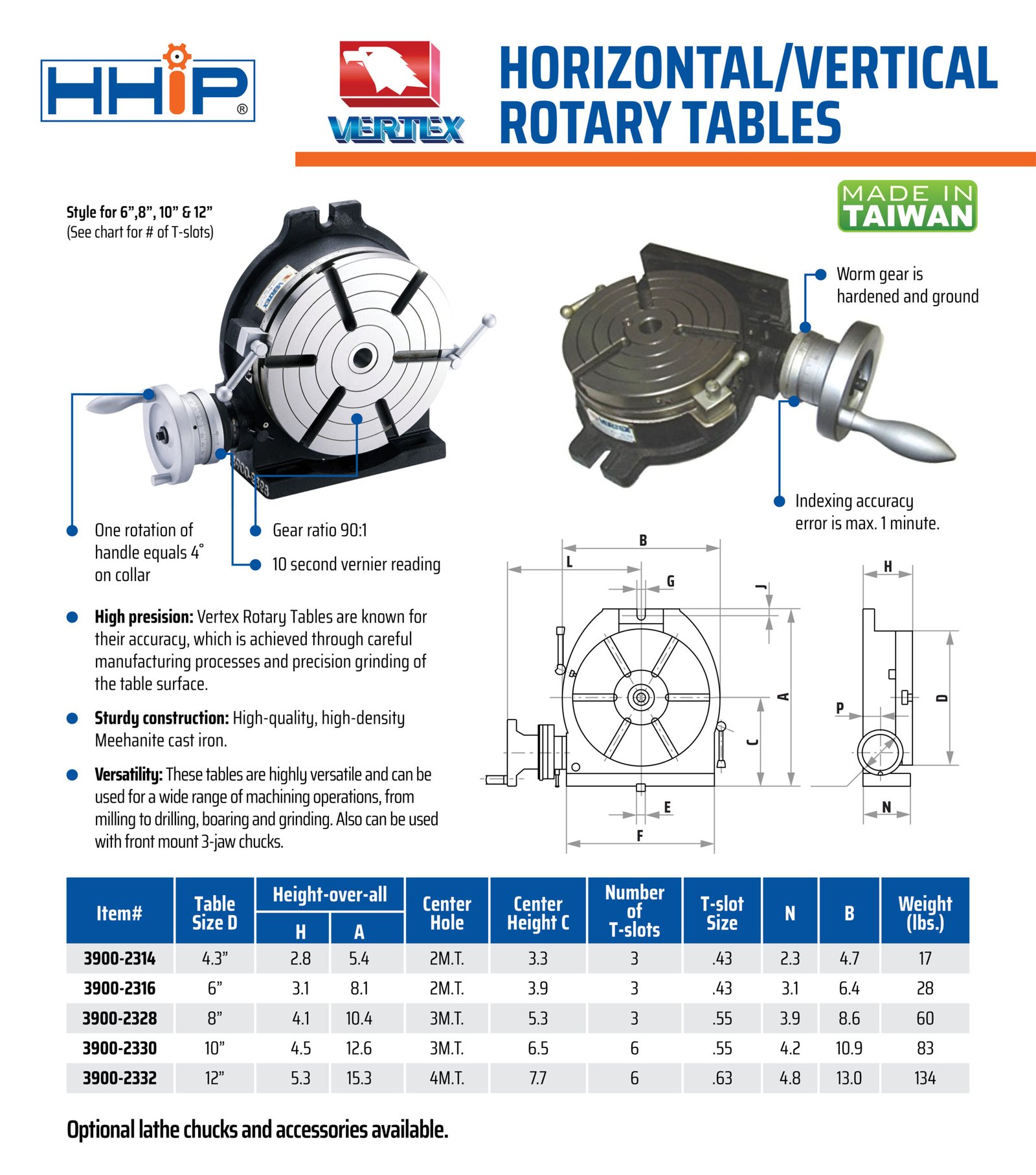

Accurate Angular Positioning
The Vertex HV-10 features a 90:1 gear ratio for controlled rotary movement. One complete rotation of the handwheel moves the table 4°, while the 10-second vernier scale allows fine angular adjustments.
This combination makes the rotary table suitable for operations such as machining arcs, circular patterns, radial holes and equally spaced features.

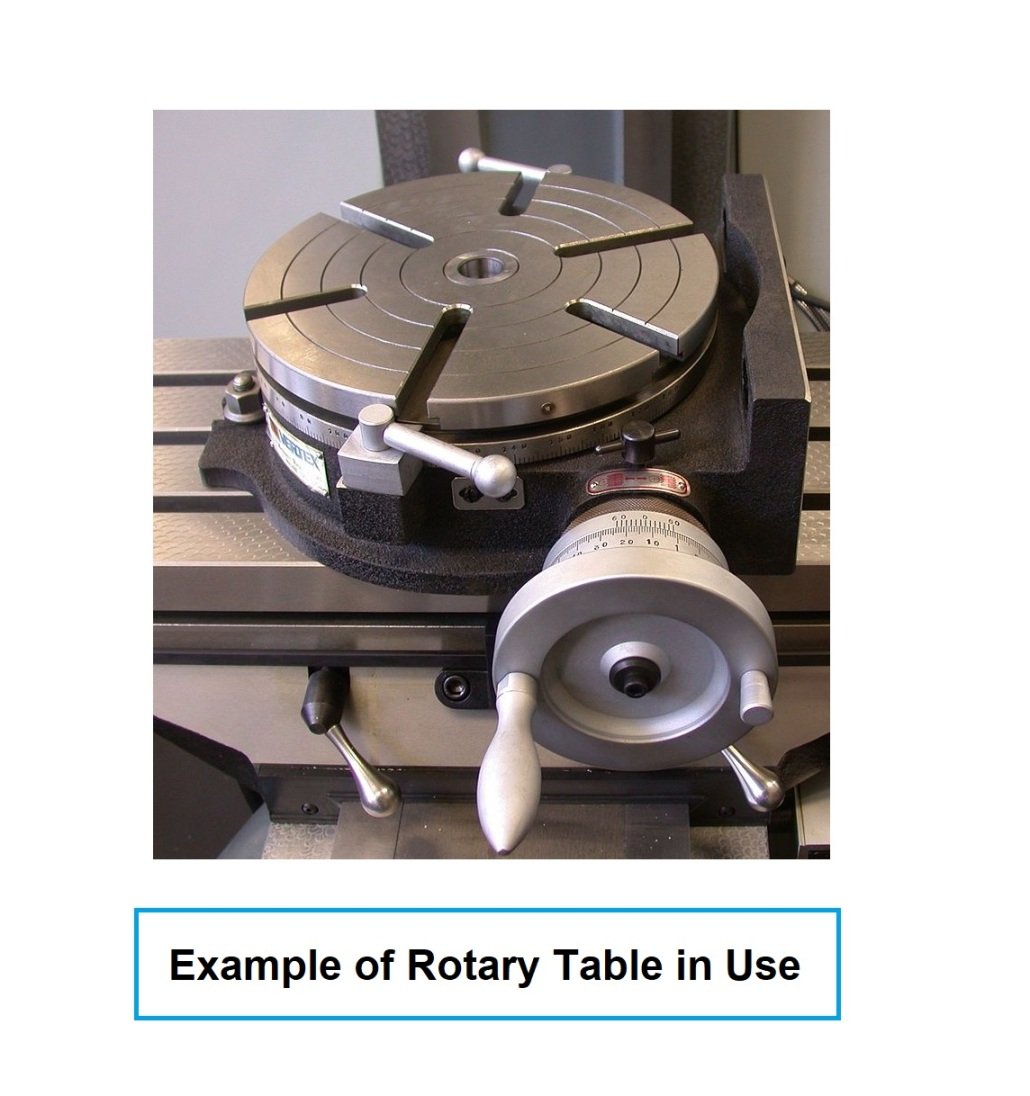

Horizontal and Vertical Machining

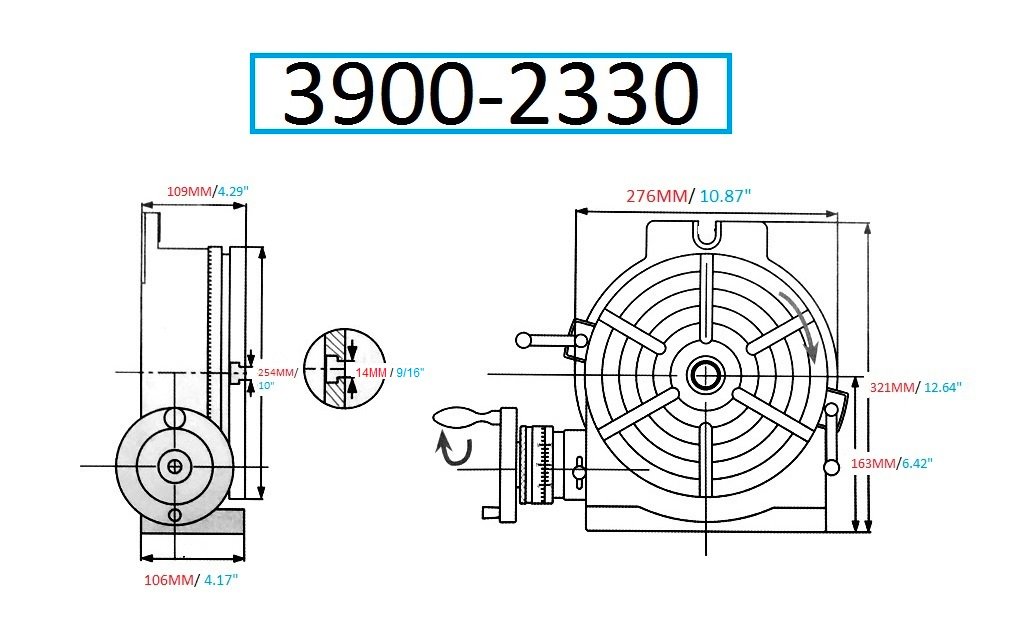

The rotary table can be mounted in either the horizontal or vertical position, providing greater flexibility for different workpiece geometries and machining setups.
- Horizontal load capacity: 198 lbs
- Vertical load capacity: 110 lbs
- Vertical center height: 6.5″
- Horizontal overall height: 4.5″
- Vertical overall height: 12.8″
Secure Workpiece Mounting
The 10-inch table includes six T-slots for securing workpieces, fixtures and compatible front-mount chucks. Its 3MT center hole can also be used for accurate workpiece alignment and compatible tooling setups.

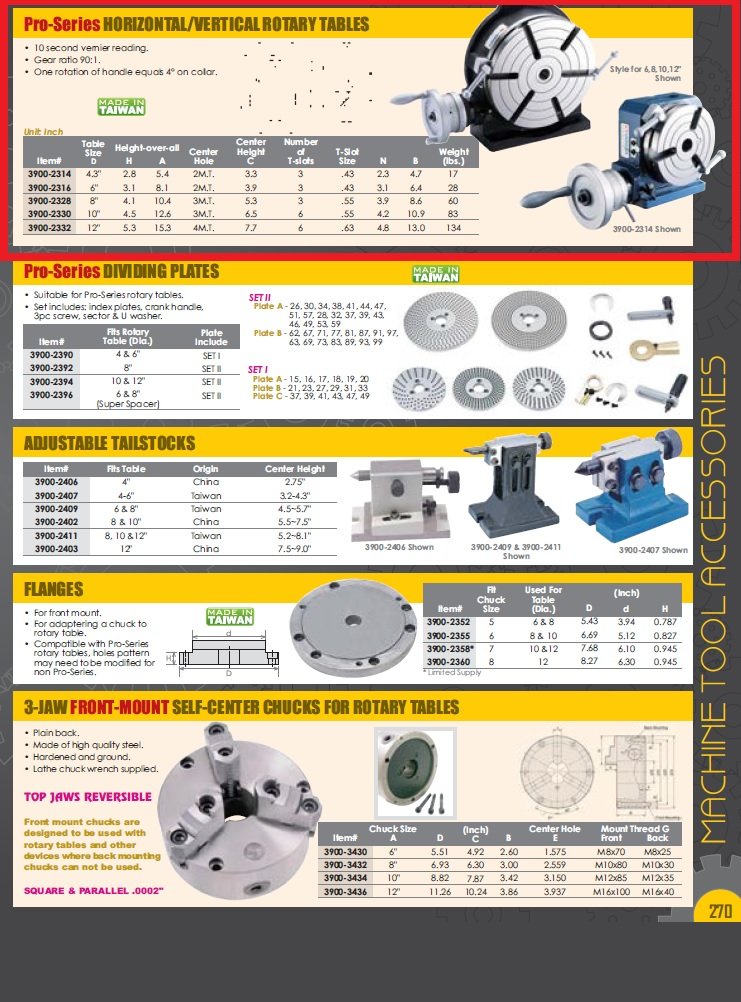

Technical Specifications
| Brand | Vertex |
|---|---|
| Model | HV-10 |
| Table Diameter | 10″ |
| Mounting Positions | Horizontal and vertical |
| Construction | High-density Meehanite cast iron |
| Center Hole | 3MT |
| Number of T-Slots | 6 |
| T-Slot Size | 0.55″ |
| Gear Ratio | 90:1 |
| Handwheel Movement | 4° per complete rotation |
| Vernier Reading | 10 seconds |
| Horizontal Load Capacity | 198 lbs |
| Vertical Load Capacity | 110 lbs |
| Horizontal Overall Height | 4.5″ |
| Vertical Overall Height | 12.8″ |
| Vertical Center Height | 6.5″ |
| Product / Shipping Weight | 83 lbs |
Typical Applications
- Precision angular positioning
- Circular and arc milling
- Radial hole patterns
- Drilling and boring operations
- Grinding applications
- Machining equally spaced features
- Horizontal and vertical workholding setups
Shipping notice: Due to its 83 lb shipping weight, this rotary table must be shipped by truck freight.
