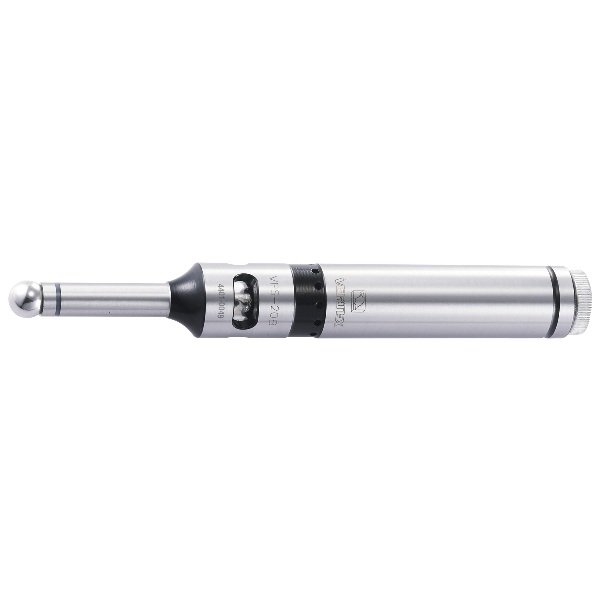

VERTEX 20MM SHANK ELECTRONIC LONG AUDIBLE EDGE FINDER (4401-0049)

VERTEX 20MM SHANK ELECTRONIC LONG AUDIBLE EDGE FINDER (4401-0049) (SKU: 4401-0049)

20mm Shank Electronic Long Audible Edge Finder

• Sensor will beep while the red light is activated when the stylus meets a conductive metal surface
• Accuracy within +/- .005mm/ .0002″
• LED red light is sealed and is water resistant
• Battery used is UM #5 (12V)
• Ball diameter (d2) is 0.394″
• Shank diameter (D) is 0.787″
• Overall length (L) is 6.2″
• Width at the center (d1) is 0.709″
• Length to beeper (l1) is 3.031″
• Length from beeper to tip section (l2) is 1.594″
• Tip section is 40mm or 1.575″

Specifications

• 20mm Shank Electronic Long Shank Audible Edge Finder
• Sensor will beep while the red light is activated when the stylus meets a conductive metal surface.
• Accuracy within +/- .005mm/ .0002″
• LED red light is sealed and is water resistant.
• Battery used is UM #5 (12V).
• Ball diameter (d2) is 0.394″.
• Shank diameter (D) is 0.787″.
• Overall length (L) is 6.2″.
• Width at the center (d1) is 0.709″.
• Length to beeper (l1) is 3.031″.
• Length from beeper to tip section (l2) is 1.594″.
• Tip section is 40mm or 1.575″.
• Vertex # VPS-20B-
• Weight: 0.8
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
