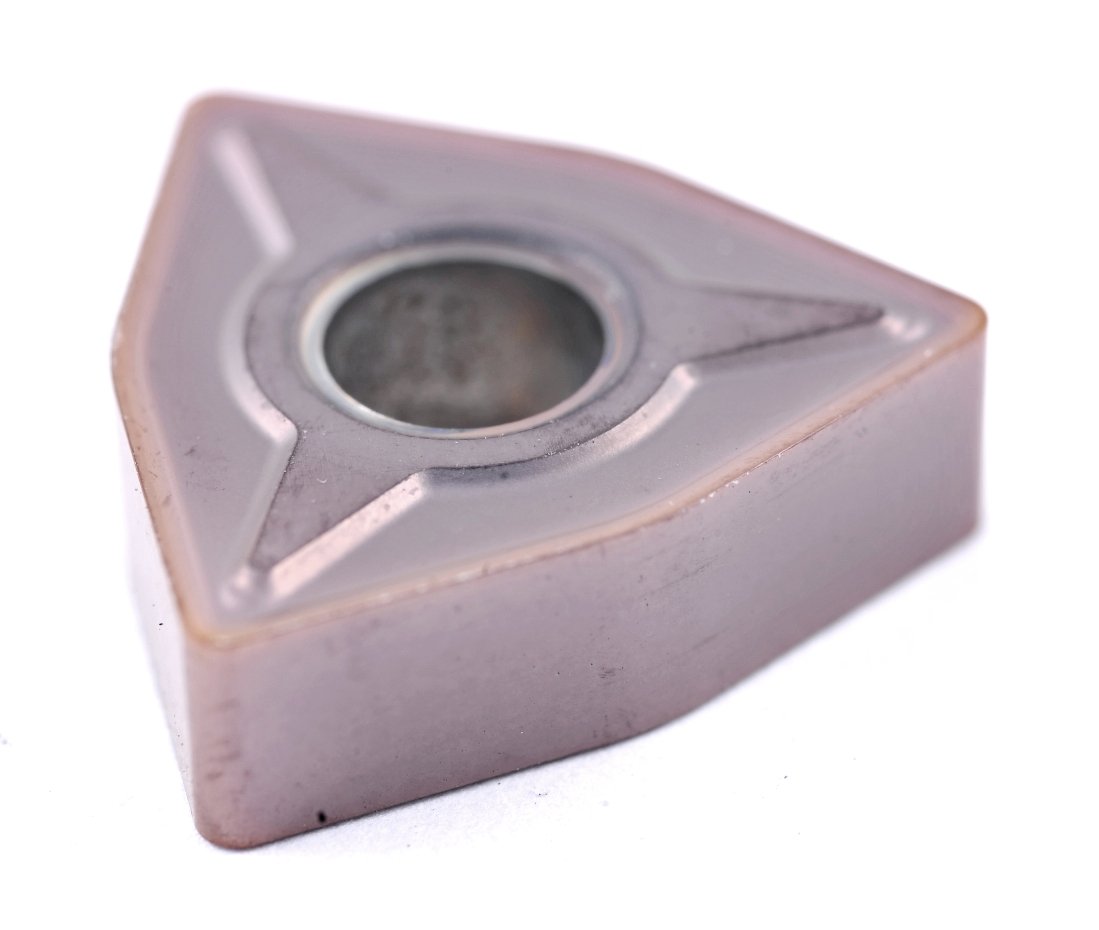

WNMG-432-EM nc-TiAIN COATED CARBIDE INSERT (6052-0432) (SKU: 6052-0432)
Semi-finishing geometry recommended for use with 300 Series stainless steels
- Double-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel. Possesses higher feed and depth of cut capability than EF chipbreaker
- ISO insert number is WNMG080408EM

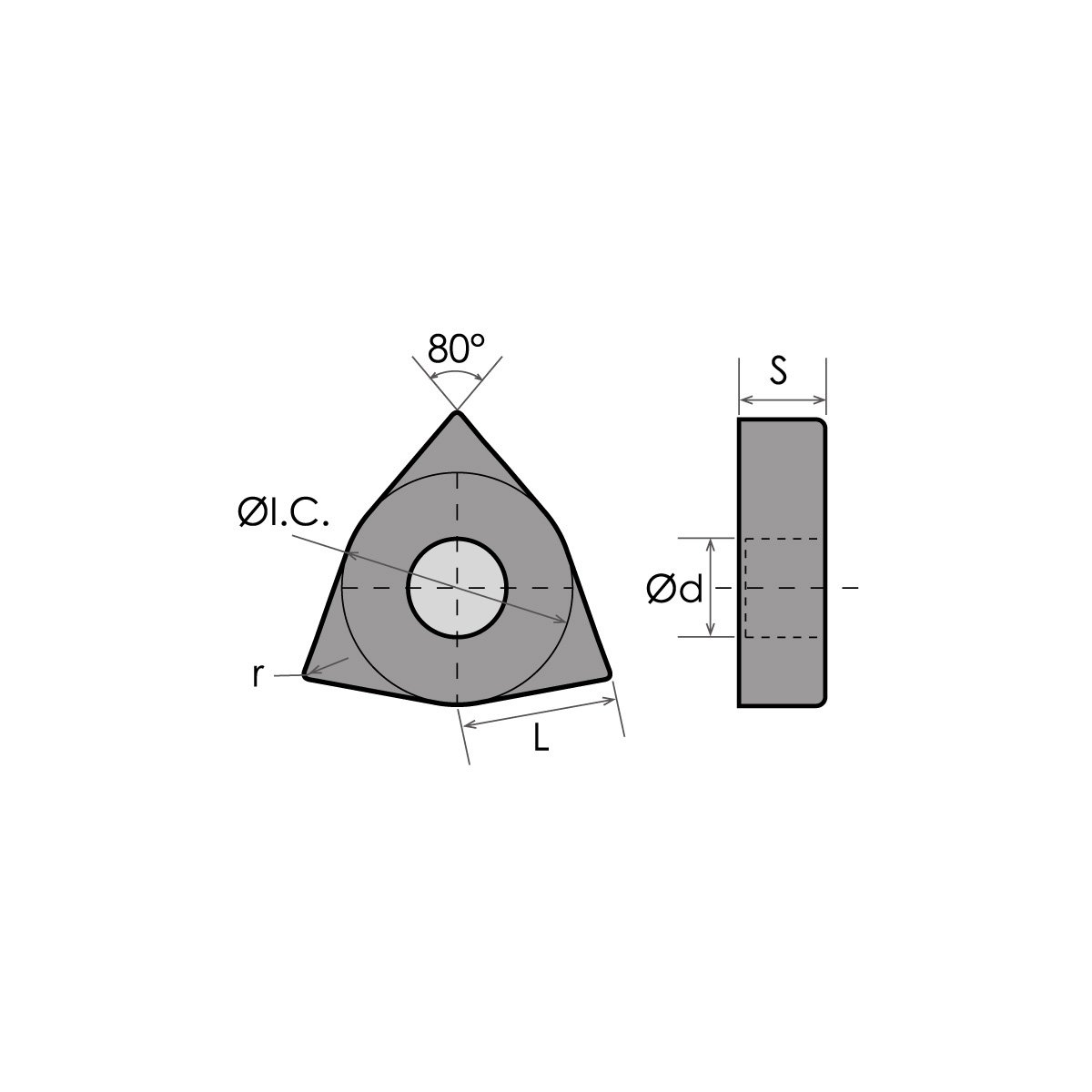

- I.C. is 0.343
- L is 0.343
- S is 3/16
- d is 13/64
- r is .0315
- For turning and milling carbon and alloy steels, tool steel and stainless steel
- Provides a longer life than uncoated grades
- Works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron
- Unique grade material with near perfect wear resistance and high temperature resistance
- The nc-TiAIN coating, ultrafine grain substrate , and unique surface treatment make this grade suitable for high precision cutting of “difficult to machine” materials, such as stainless steel, etc
Specifications
- WNMG-432-EM nc-TiAIN Coated Carbide Insert
- I.C. is 0.343″.
- L is 0.343″.
- S is 3/16″.
- d is 13/64″.
- r is .0315″.
- ISO insert number is WNMG080408EM.
- Semi-finishing geometry recommended for use with 300 Series stainless steels.
- For turning and milling carbon and alloy steels, tool steel and stainless steel.
- Provides a longer life than uncoated grades.
- Grade XAF795 works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron.
- The nc-TiAIN coating, ultrafine grain substrate , and unique surface treatment make this grade suitable for high precision cutting of “difficult to machine” materials, such as stainless steel, etc.
- Double-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel. Possesses higher feed and depth of cut capability than EF chipbreaker.
- Weight: 0.02
- Dimensions: L 3, W 1, H 6
Benefits
- Industrial-grade tooling designed for dependable shop performance.
- Supports consistent results when applied with correct setup practices.
- A practical choice for U.S. machine shops and maintenance work.
Recommended use
- Confirm compatibility (size, interface, machine capacity) before ordering.
- Follow safe operating practices and use appropriate PPE.
- Optimize setup rigidity and process parameters for best results.
