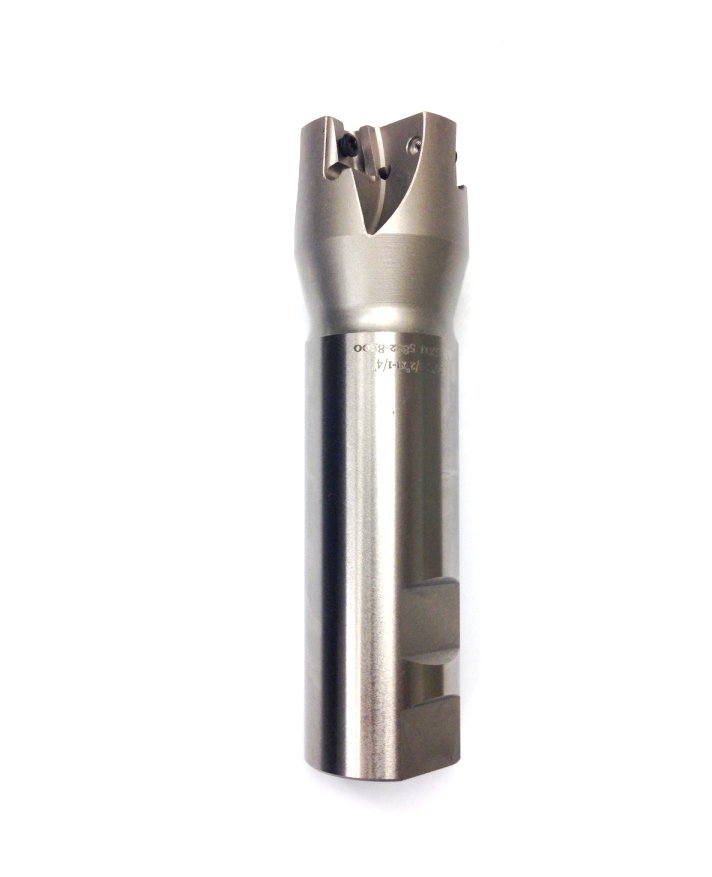

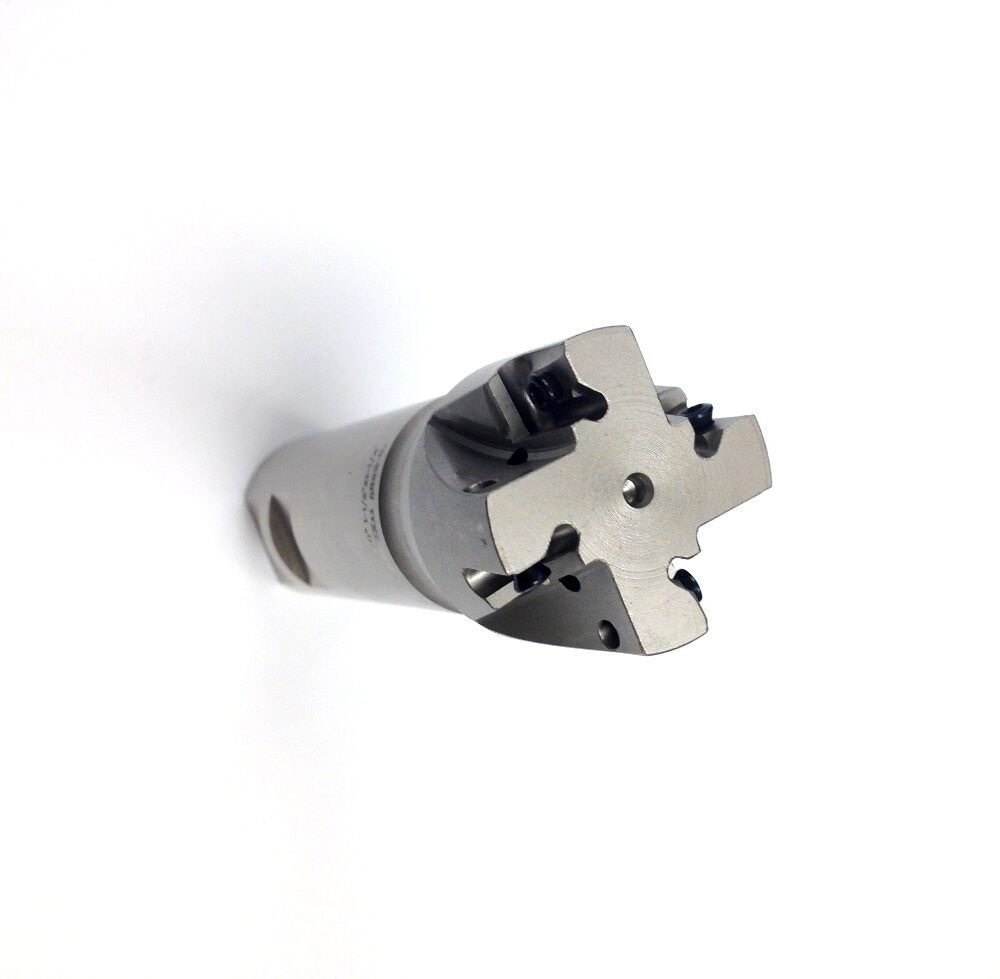

1-1/2 X 1-1/2″ SHANK INDEXABLE COOLANT-THRU END MILL (5822-8500)

1-1/2 X 1-1/2″ SHANK INDEXABLE COOLANT-THRU END MILL (5822-8500) (SKU: 5822-8500)

1-1/2 X 1-1/2″ Shank Indexable Coolant-Thru End Mill (5822-8500)

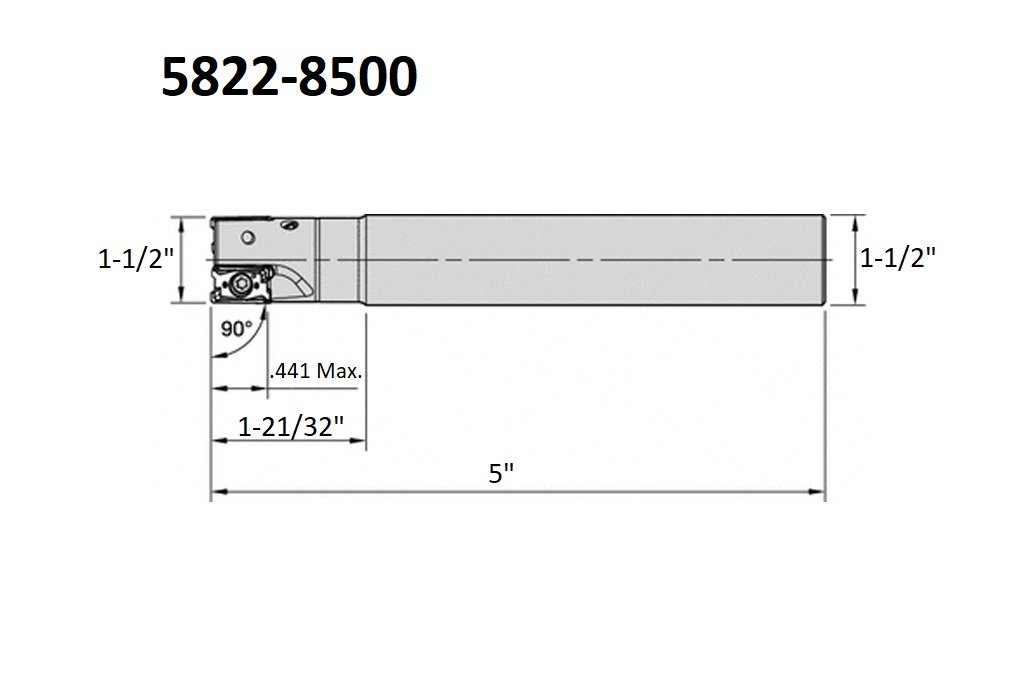

• Head length is 1-21/32″

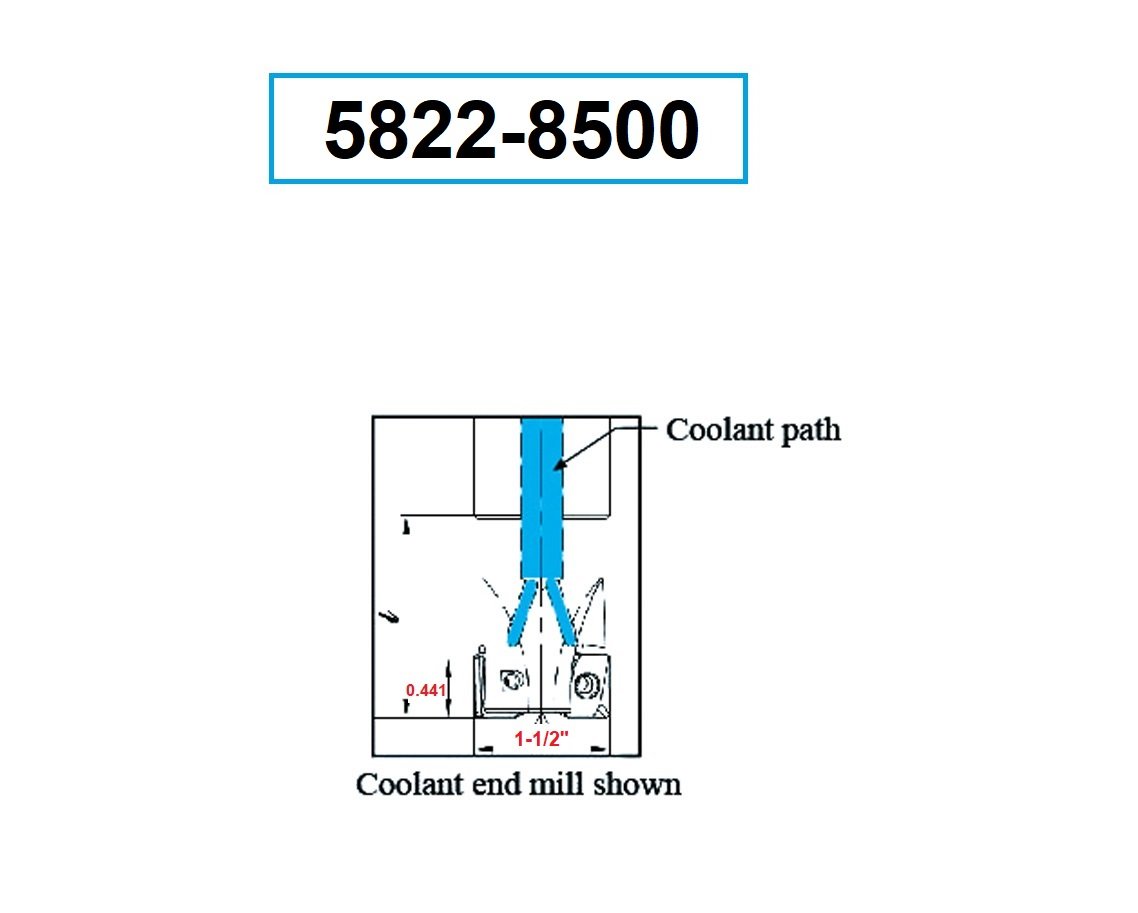

• Coolant thru allows the cutting edge to cool and removes chips
• Replacement screw is M3 X 9
• Takes 4 ANGX110508 inserts #6064-0011 which are not included
• ANGX double-sided inserts provide 4-cutting edges
• ANGX inserts have a bigger depth of cut (ap) for a better value
• ANGX inserts with high precision cutting edges are more aggressive and are disigned to improve shoulder milling surface finish
• ANGX inserts have more cutting edges than APKT inserts
• Double negative rake angle of the cutter body in combination with extra thick insert achieves double positive tool angle, reduces cutting resistance and improves impact resistance
• This 90° major cutting edge angle square shoulder milling cutter when fitted with strong 11° positive rectangular inserts allows a high depth of cut and feed per tooth

Specifications

• Head length is 1-21/32″.
• Coolant thru allows the cutting edge to cool and removes chips.
• Replacement screw is M3 X 9.
• Takes 4 ANGX110508 inserts #6064-0011 which are not included.
• ANGX double-sided inserts provide 4-cutting edges.
• ANGX inserts have a bigger depth of cut (ap) for a better value.
• ANGX inserts with high precision cutting edges are more aggressive and are disigned to improve shoulder milling surface finish.
• ANGX inserts have more cutting edges than APKT inserts.
• Double negative rake angle of the cutter body in combination with extra thick insert achieves double positive tool angle, reduces cutting resistance and improves impact resistance.
• This 90° major cutting edge angle square shoulder milling cutter when fitted with strong 11° positive rectangular inserts allows a high depth of cut and feed per tooth.
• Weight: 1.7
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
