Shank Size: 12mm with TiN Insert CCMT 0602
1pc: SCMCN08-2A
1pc: SCLCR08-2A
1pc: SCLCL08-2A
1pc: SCDCR08-2A
1pc: SCBCR08-2A

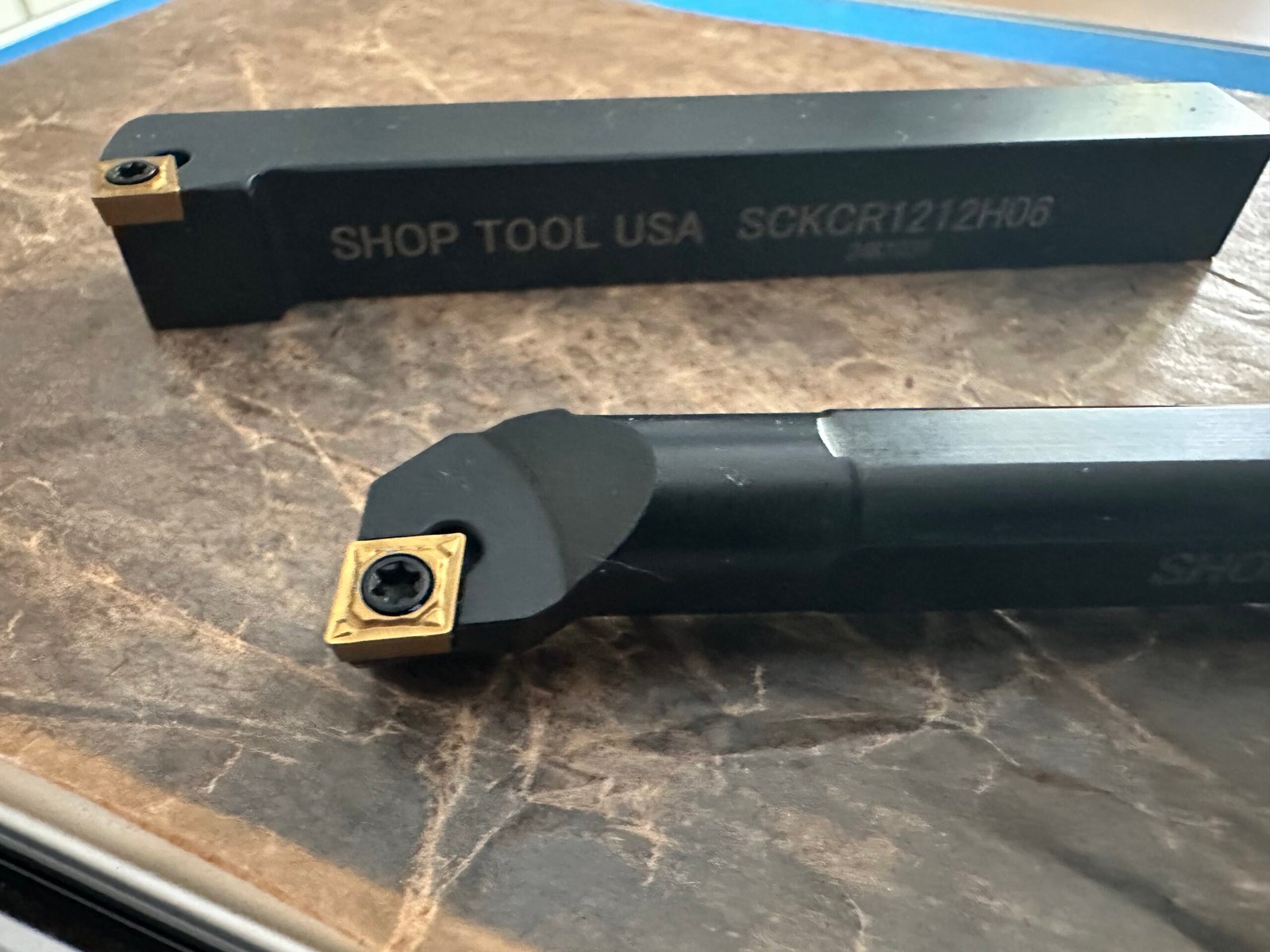

1pc: SCKCR08-2A

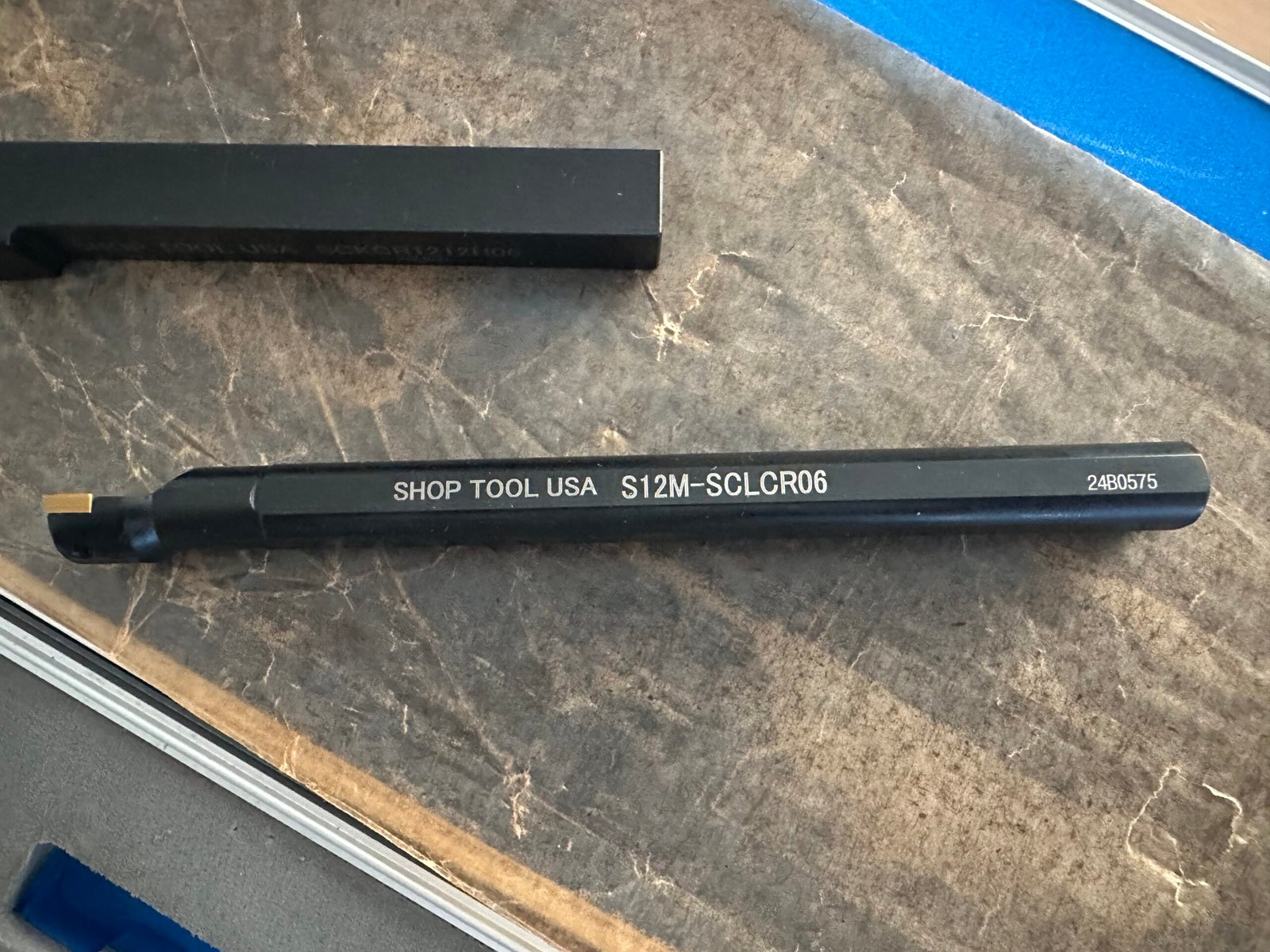

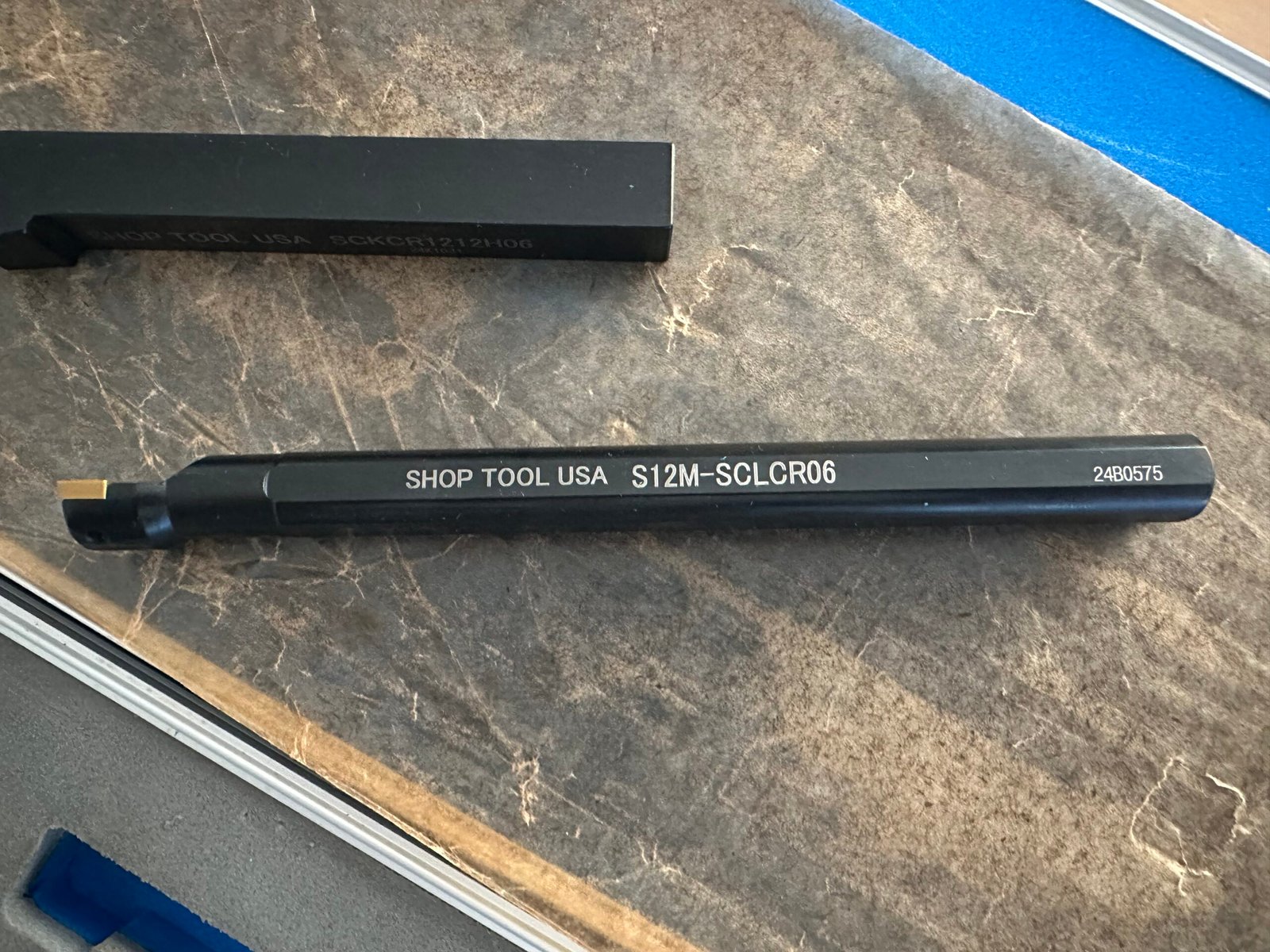

1pc: S08M-SCLCR2

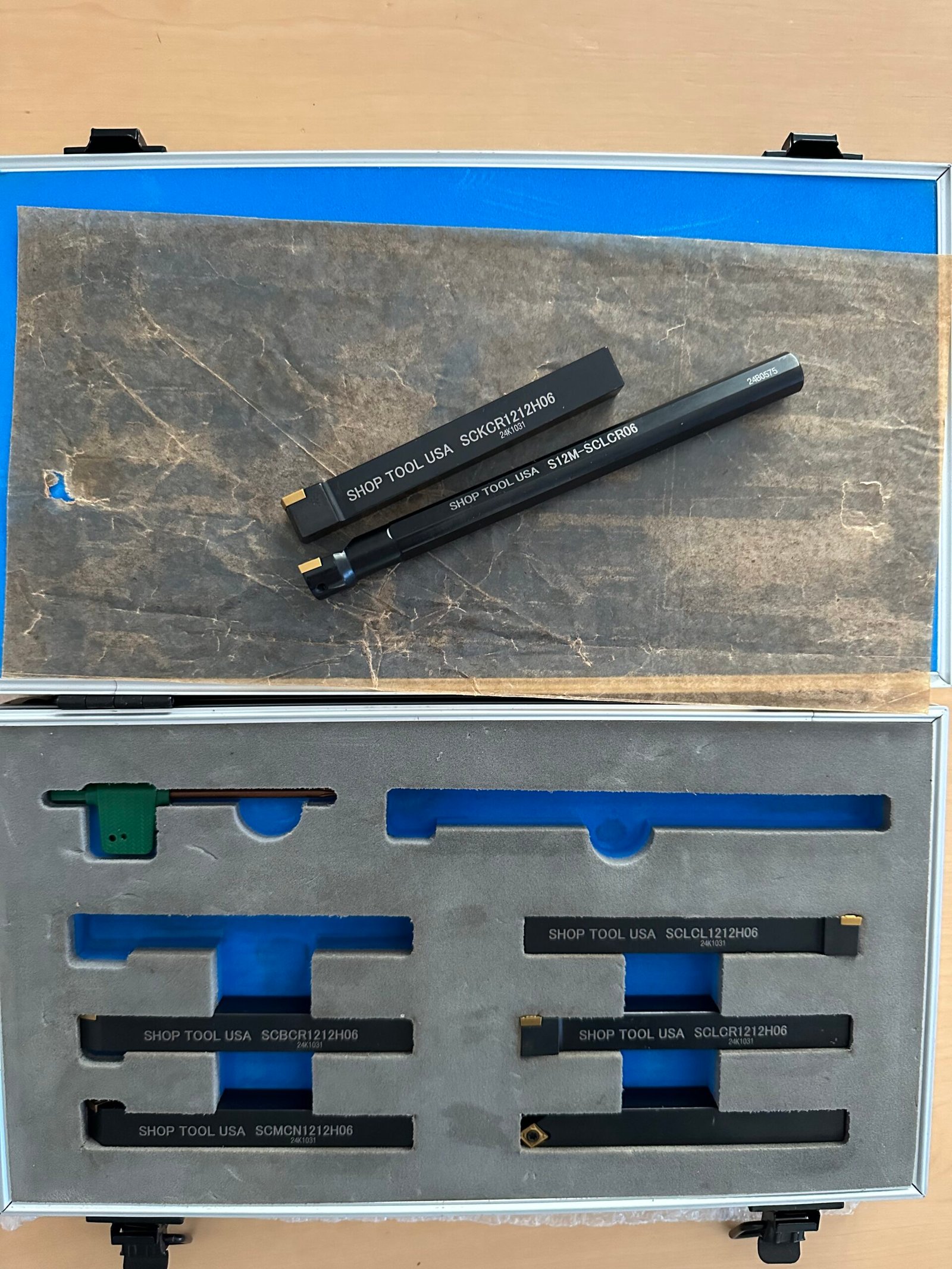

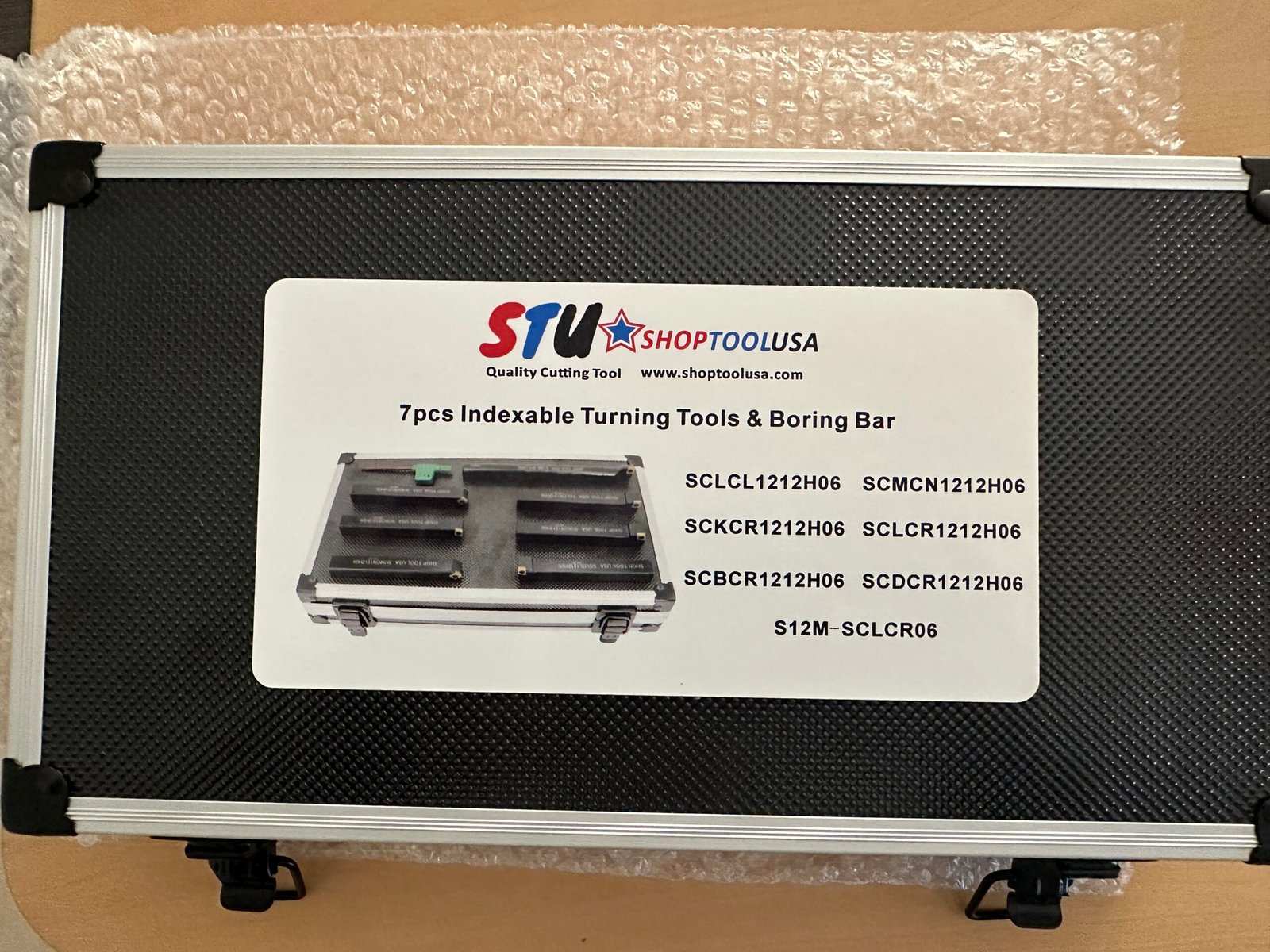

Packed in a Aluminum case
Overview of the Turning Tool Set
The turning tool set for indexable inserts is a comprehensive collection designed for precision machining. This 7-piece set features each turning tool equipped with a high-quality carbide metal indexable insert.
Key Features of the Inserts
Every indexable insert included in this set boasts 4 cutting edges, allowing users to maximize tool life and efficiency. The insert shape, CCMT, is well-engineered to deliver superior performance in various applications.
Benefits of Using Indexable Inserts
Utilizing indexable inserts results in reduced tool change time and cost savings, as the inserts can be easily replaced without replacing the whole tool. This turning tool set is perfect for both professional machinists and hobbyists, aiming for high-quality results in their metalworking projects.
Applications
This turning tool set is suitable for:
– External turning and facing operations
– Light to medium-duty machining tasks
– Working with materials like steel, stainless steel, and cast iron
CCMT Inserts
CCMT inserts are a specific type of indexable cutting tool:
Shape: Diamond-shaped with an 80° point angle
Clearance: 7° positive rake angle
Tolerance: Precision ground edges for accuracy
Mounting: Center hole for secure attachment
Advantages
Indexable design: Allows for quick replacement of worn cutting edges
Versatility: Can perform multiple turning operations with different insert grades
Cost-effective: Replaceable inserts are more economical than solid carbide tools
Consistent performance: Precision-ground inserts ensure repeatable results[
