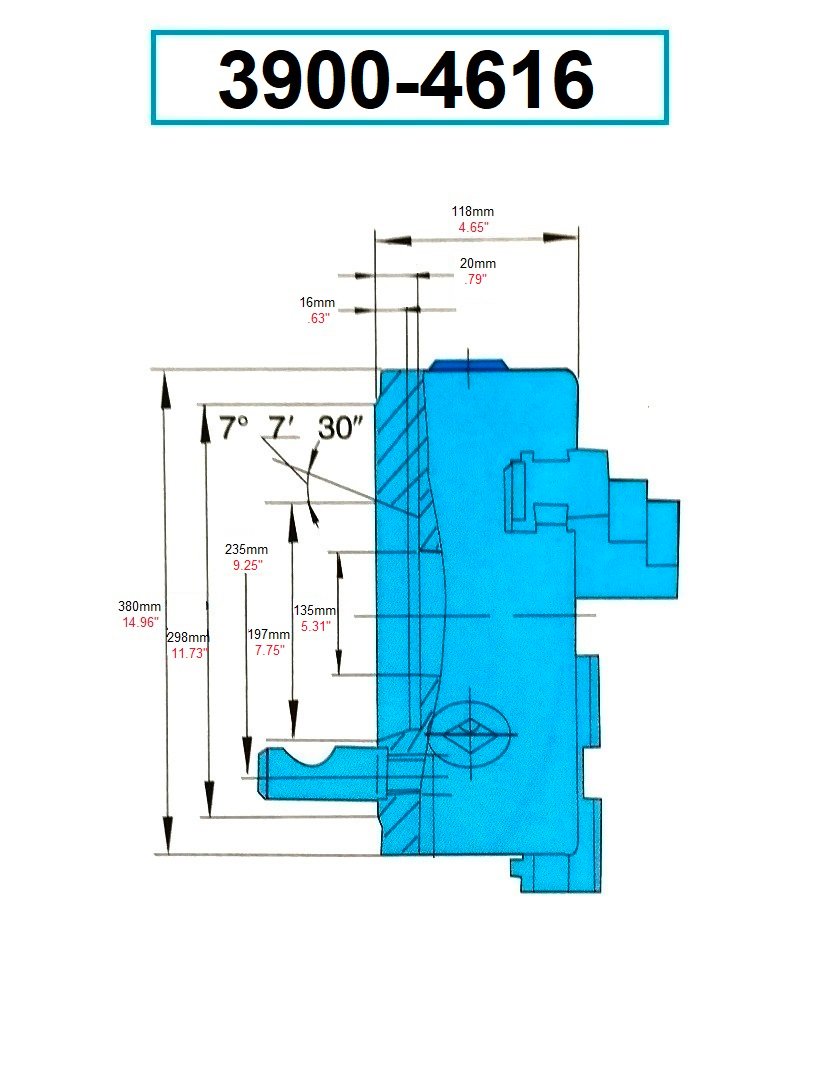

15″ D1-11 3-JAW CAMLOCK LATHE CHUCK (3900-4616)

15″ D1-11 3-JAW CAMLOCK LATHE CHUCK (3900-4616) (SKU: 3900-4616)

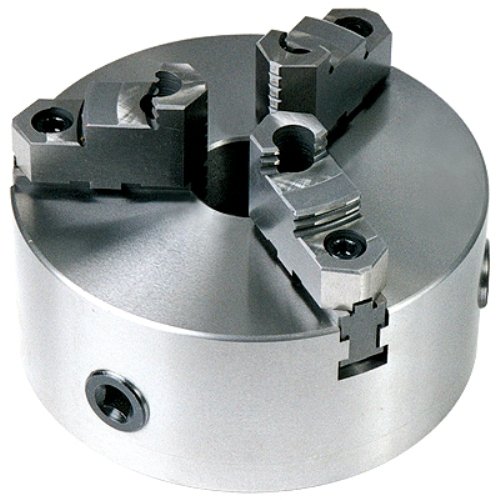

15″ D1-11 3-Jaw Camlock Lathe Chuck

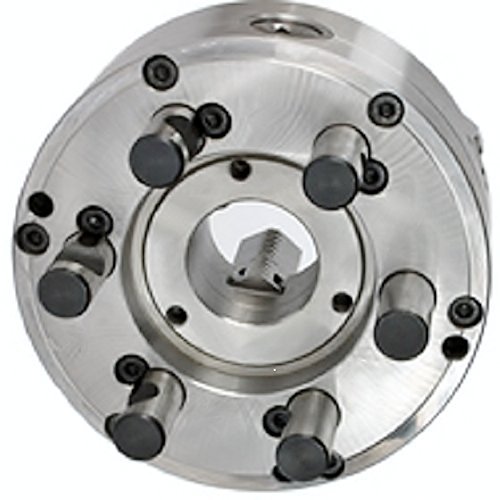

• Direct mounting chuck with camlock nose
• Body is made of high grade semi-steel
• 2 piece top jaws are reversible
• Self centering jaws that are hardened and precision ground
• Lathe chuck wrench is included
• Weight is 225 lbs
• 6 pieces of a 1-3/16″ diameter stud are included
• Maximum RPM is 1,100
• T.I.R. is .005″

Specifications

• 15″ D1-11 3-Jaw Camlock Lathe Chuck
• Direct mounting chuck with camlock nose.
• Body is made of high grade semi-steel.
• 2 piece top jaws are reversible.
• Self centering jaws that are hardened and precision ground.
• Lathe chuck wrench is included.
• Weight is 225 lbs.
• 6 pieces of a 1-3/16″ diameter stud are included.
• Maximum RPM is 1,100.
• T.I.R. is .005″.
• Weight: 225
• Dimensions: L 18, W 20, H 18

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
