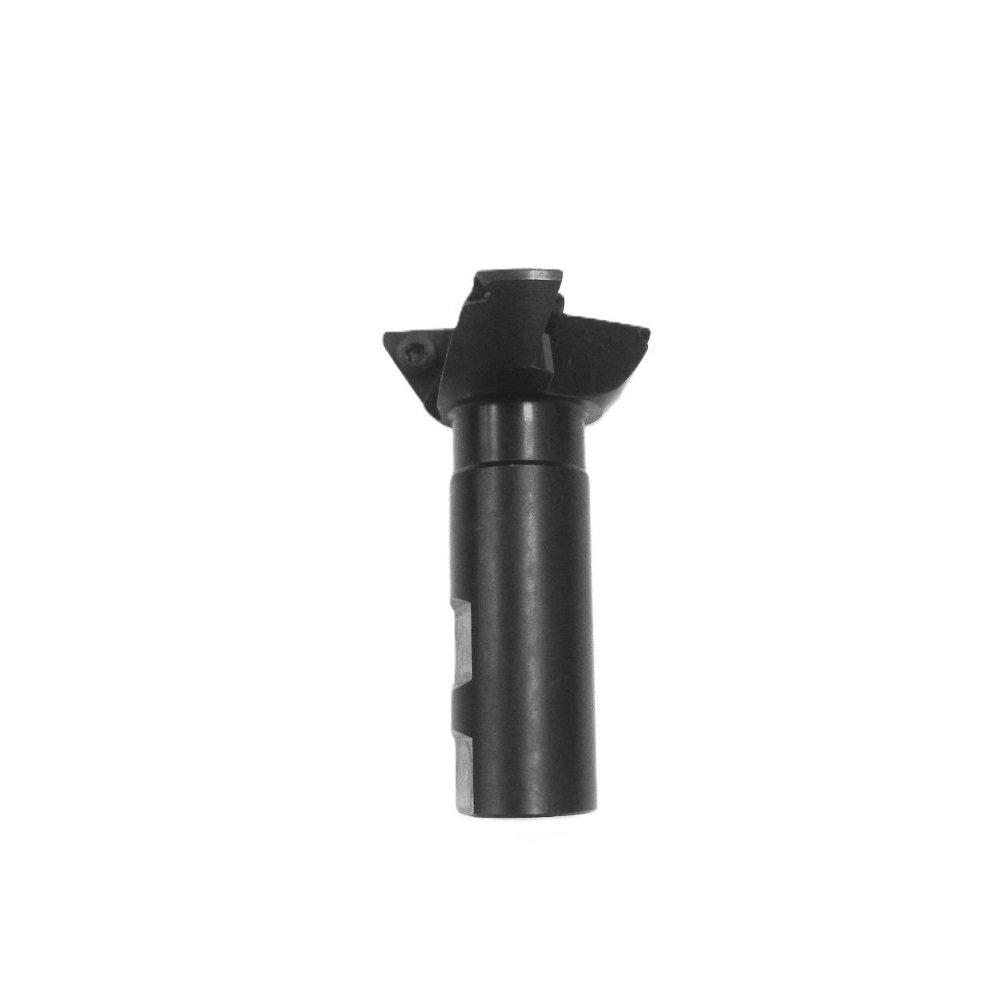

2-1/2″ X 1 SHANK 3 FLUTE 60 DEGREE INDEXABLE DOVETAIL CUTTER (2075-0512)

2-1/2″ X 1 SHANK 3 FLUTE 60 DEGREE INDEXABLE DOVETAIL CUTTER (2075-0512) (SKU: 2075-0512)

2-1/2″ X 1 Shank 3 Flute 60 Degree Indexable Dovetail Cutter

• Right hand cut
• 60° angle 15° clearance
• For milling roughing & finishing at high speeds & feeds
• Use with TDEX carbide nserts which are not included
• Overall length L is 3.35″
• Cutting depth F is 0.70″
• Height H is 0.750″
• Takes 3 TDEX43 inserts #6062-0430
• Insert screw is M5 X 12 #2100-0076
• Cutting diameter D is 2-1/2″
• Shank d is 1″

Specifications

• 2-1/2″ X 1 Shank 3 Flute 60 Degree Indexable Dovetail Cutter
• Right hand cut.
• 60° angle 15° clearance.
• For milling roughing & finishing at high speeds & feeds.
• Use with TDEX carbide inserts which are not included.
• Overall length L is 3.35″.
• Cutting depth F is 0.70″.
• Height H is 0.750″.
• Takes 3 TDEX43 inserts #6062-0430.
• Insert screw is M5 X 12 #2100-0076.
• Cutting diameter D is 2-1/2″.
• Shank d is 1″.
• Weight: 1.15
• Dimensions: L 6, W 6, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
