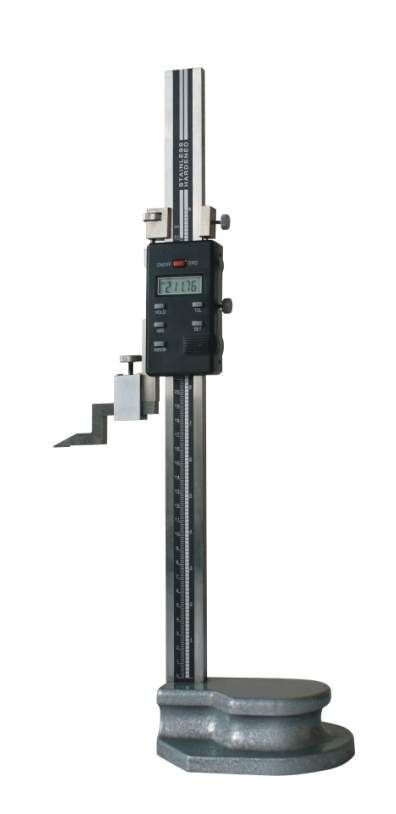

24″ / 600MM Electronic Height Gage inch/metric conversion. .0005″/.01mm” resolution
- Precision Measurement: Accurately measures heights up to 24 inches (600mm), ensuring precise results for various applications.
- High Resolution: Offers a resolution of .0005 inches (.01mm), enabling detailed and accurate measurements.
- User-Friendly Display: Equipped with a large display screen for easy reading of measurements, reducing the risk of errors.
- Preset Memorizing Function: Convenient feature allowing users to store and recall preset measurements, enhancing efficiency and workflow.
- Durable Construction: Constructed with a hardened and ground stainless steel frame, ensuring durability and longevity even in demanding working environments.
- Stable Base: Features a sturdy cast iron base, providing stability and support during measurements.
- Versatile Unit Conversion: Offers true inch/metric conversion capability, allowing seamless transition between measurement systems.
- Shipping Weight: Weighs approximately 19.7 lbs, making it portable while maintaining sturdiness during transportation.
The 24″/600mm Electronic Height Gage is a sophisticated measuring tool widely used in industrial and quality control environments, designed to ensure high precision and user-friendly functionality. Here’s a breakdown of its features:
Measurement Range and Resolution
This height gage has an extensive measurement range of 0-24 inches (0-600mm), making it adaptable for a broad variety of tasks. It provides a resolution of 0.0005 inches (0.01mm), which allows for extremely fine measurements—a necessity in high-precision tasks.
Unit Conversion
The device includes a convenient inch-to-millimeter conversion function, allowing users to switch seamlessly between imperial and metric units. This flexibility is essential in environments where both unit systems are in use, simplifying operations and improving efficiency by reducing the need for manual conversions.
Display and Readability

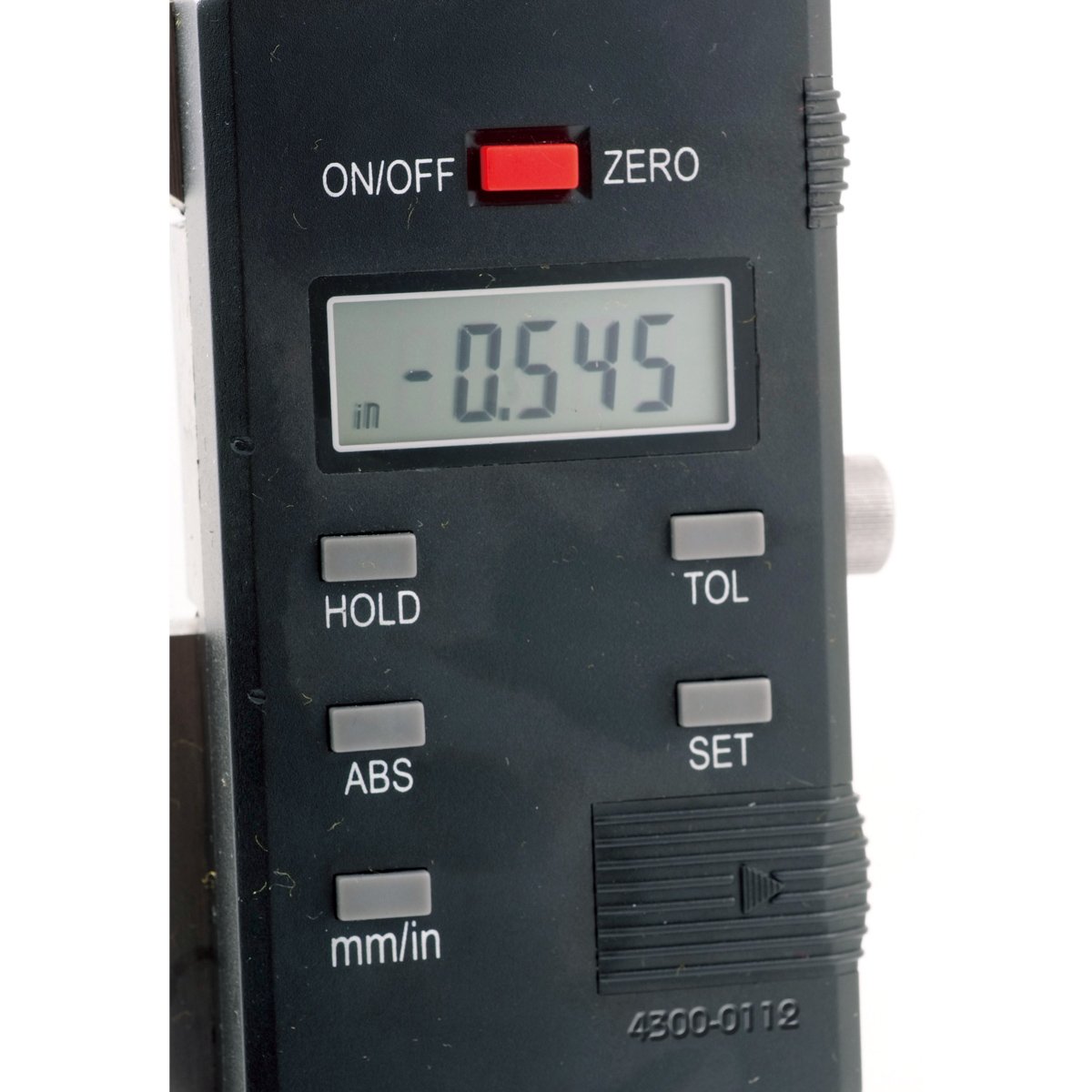

- LCD Screen: The height gage is equipped with a large LCD display with characters approximately 0.380″ (9.65mm) in height, ensuring visibility even in dimly lit environments.

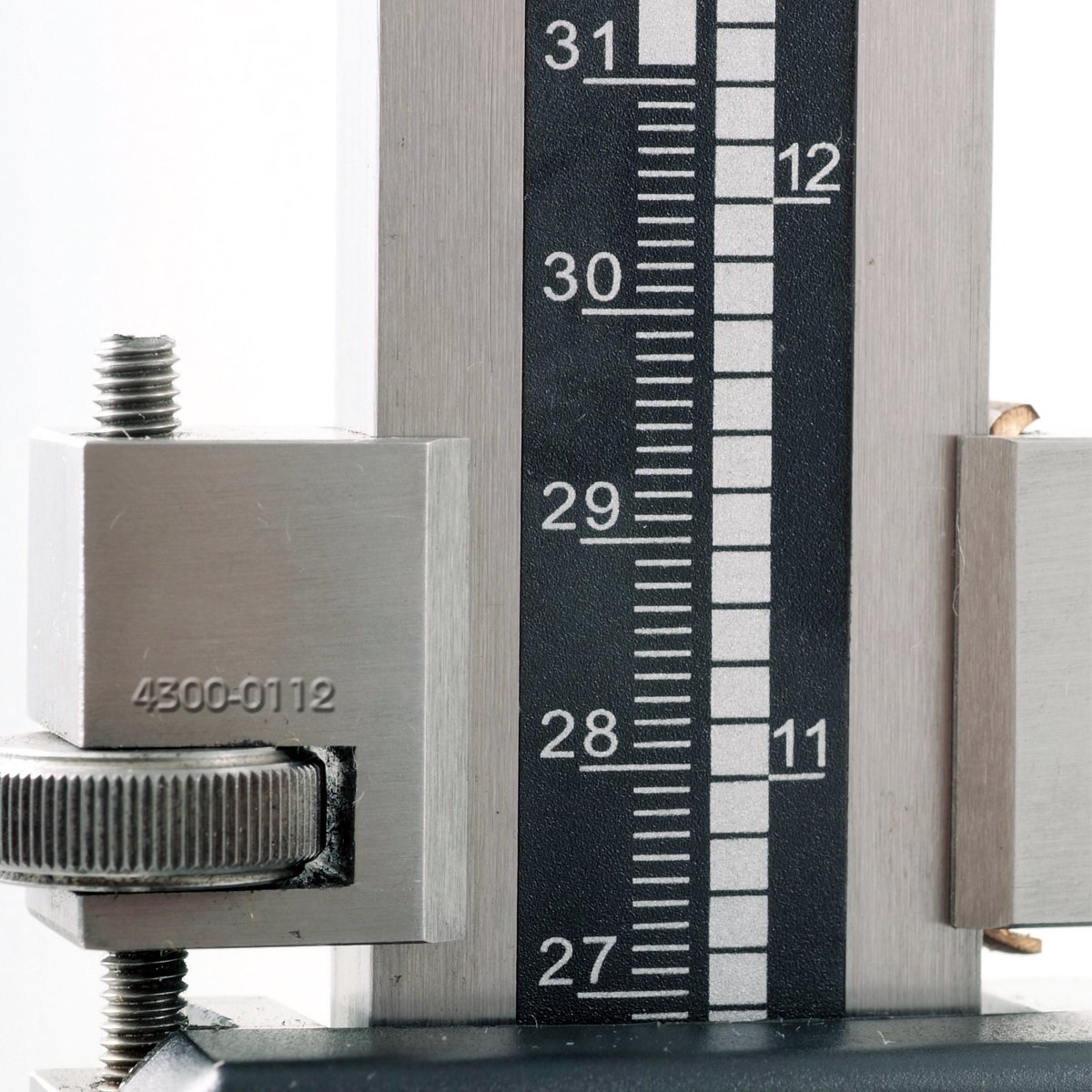

- Bar Graduations: The scale includes clear bar graduations at intervals of 0.100 inches and 5mm for additional visual referencing, allowing users to obtain approximate readings quickly before finer digital adjustments.
Additional Features for Versatile Use
- Hold Function: The hold function allows users to freeze the reading at any given position, making it easier to document measurements without losing the recorded value.
- Zero Setting: Users can set zero at any position, enabling relative measurements, which is especially helpful when comparing part heights directly on the workpiece.
- Preset Function: This function allows for setting any reading as a reference point at any position, a valuable tool for repeated or comparative measurements.
- Data Output: With an RS232 output port, this height gage supports direct connectivity to data collection devices or computers, enabling streamlined data logging and analysis.
- Battery Life: The tool operates on a battery with an approximate life of 1.5+ years with average use, minimizing downtime due to battery replacement.
Summary
The 24″/600mm Electronic Height Gage combines high precision, a user-friendly interface, and durability, making it ideal for tasks that demand rigorous measurement standards. The inclusion of both measurement and user-convenience features—such as unit conversion, preset functionality, data output, and a reliable LCD screen—ensures that this tool can adapt to diverse industrial applications and support quality control processes with unmatched accuracy and efficiency.
