3 X 1″ BORE 90 DEGREE SQUARE NICKEL COATED INDEXABLE FACE MILL (2061-3003)

3 X 1″ BORE 90 DEGREE SQUARE NICKEL COATED INDEXABLE FACE MILL (2061-3003) (SKU: 2061-3003)

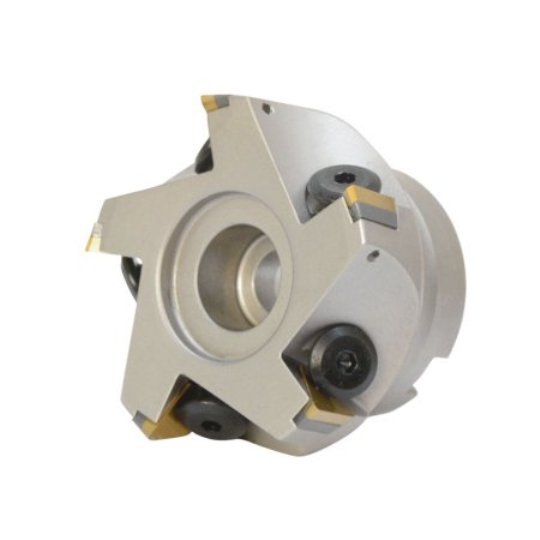

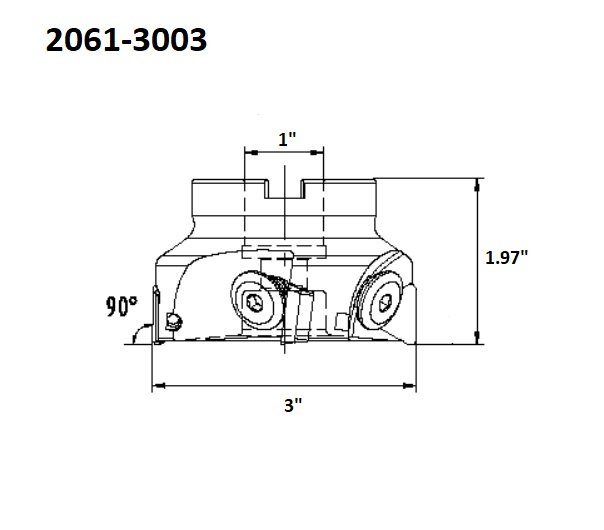

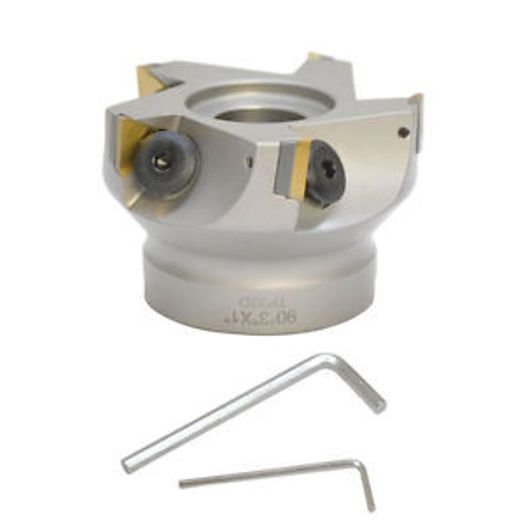

3 X 1″ Bore 90 Degree Square Nickel Coated Indexable Face Mill

• Setting angle is 90 degrees
• 11 degree positive triangular inserts allow for high depth of cut and feed per tooth
• Radial rake angle is +1 degree
• Axial rake is +7 degrees
• The clamping system makes changing inserts quick and easy
• Accepts TPG-322 carbide inserts
• Replacement shim is TP16D #2100-1100
• Replacement shim screw is M3 X 6.5-D5 #2100-0089

Specifications

• 3 X 1″ Bore 90 Degree Square Nickel Coated Indexable Face Mill
• Setting angle is 90 degrees.
• 11 degree positive triangular inserts allow for high depth of cut and feed per tooth.
• Radial rake angle is +1 degree.
• Axial rake is +7 degrees.
• The clamping system makes changing inserts quick and easy.
• Replacement shim is TP16D #2100-1100.
• Accepts TPG-322 carbide inserts.
• Replacement shim screw is M3 X 6.5-D5 #2100-0089.
• Weight: 2.3
• Dimensions: L 6, W 6, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
