3MT ULTRA PRECISION HEAVY DUTY LIVE CENTER (3900-6083)

3MT ULTRA PRECISION HEAVY DUTY LIVE CENTER (3900-6083) (SKU: 3900-6083)

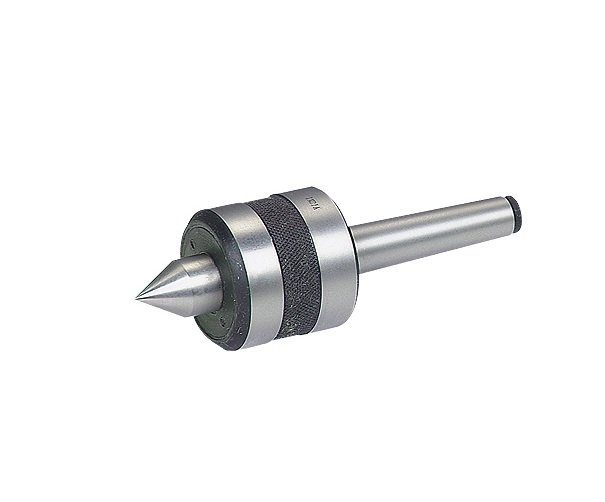

3MT Ultra Precision Heavy Duty Live Center

• Triple bearing design
• Machined from one piece of forging, hardened and precisely ground
• Accuracy is less or equal to .0002″ TIR
• Ultra precision radial bearing reduces run out to a minimum after continuous use
• Load rate is 1,200 lbs
• Maximum RPM is 5,000
• Concentricity is within .0002″

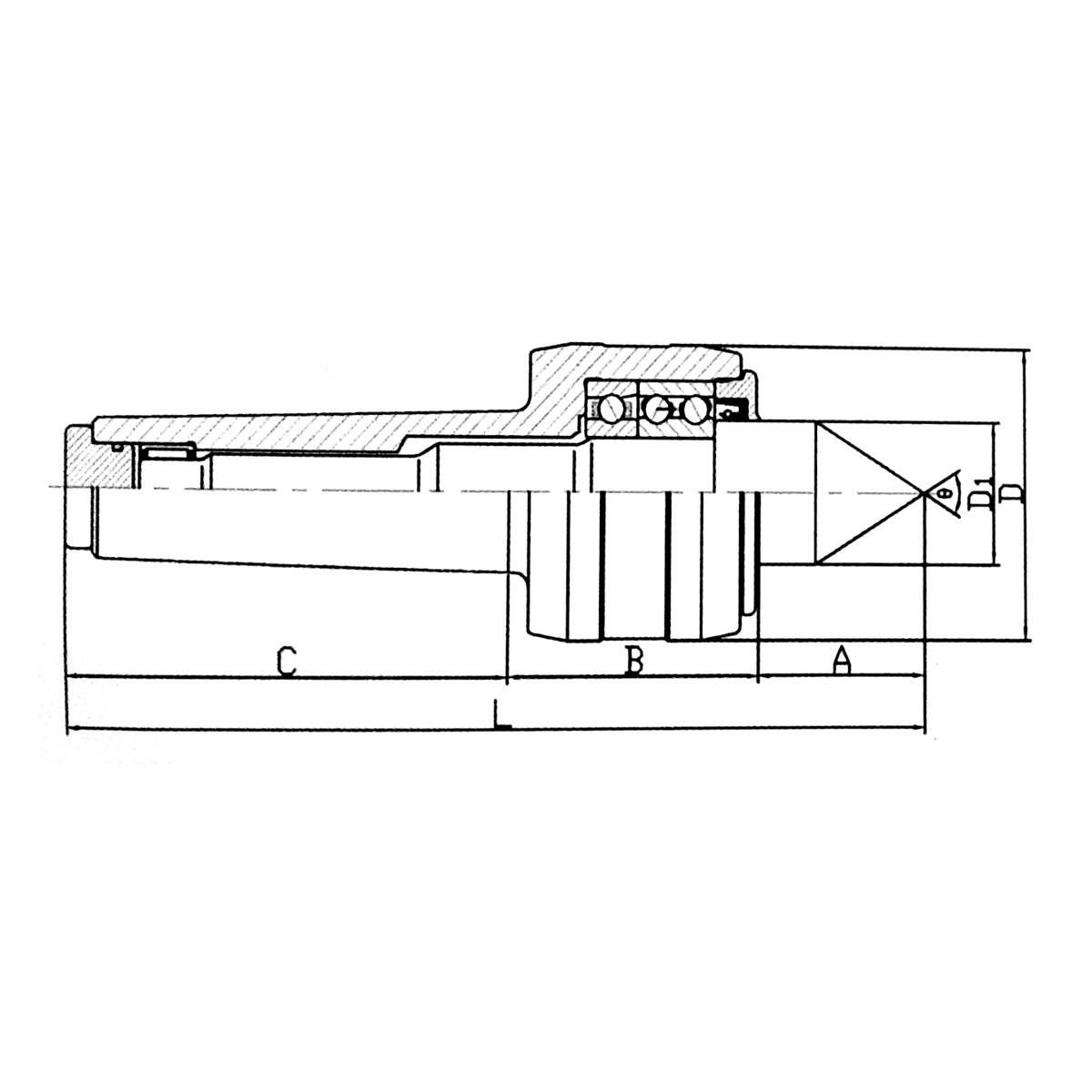

• A is 39mm
• B is 55mm
• C is 86mm
• D is 53mm
• D1 is 30mm
• L is 180mm

Specifications

• 3MT Ultra Precision Heavy Duty Live Center
• Triple bearing design.
• Machined from one piece of forging, hardened and precisely ground.
• Accuracy is less or equal to .0002″ TIR.
• Ultra precision radial bearing reduces run out to a minimum after continuous use.
• Load rate is 1,200 lbs.
• Maximum RPM is 5,000.
• Concentricity is within .0002″.
• A is 39mm.
• B is 55mm.
• C is 86mm.
• D is 53mm.
• D1 is 30mm.
• L is 180mm.
• Weight: 2.7
• Dimensions: L 3, W 6, H 3

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
