4MT ULTRA PRECISION HEAVY DUTY LIVE CENTER (3900-6084)

4MT ULTRA PRECISION HEAVY DUTY LIVE CENTER (3900-6084) (SKU: 3900-6084)

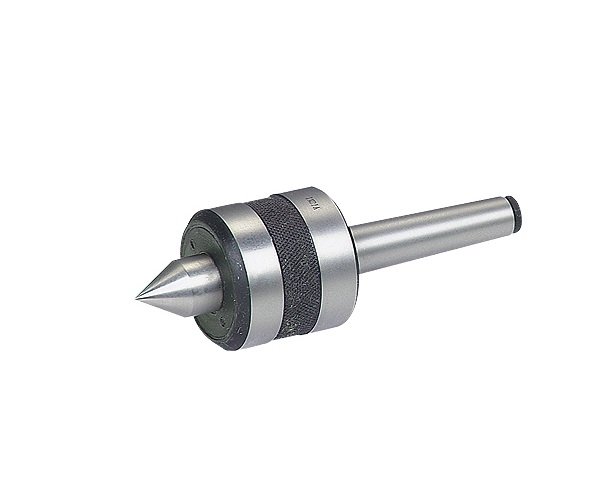

4MT Ultra Precision Heavy Duty Live Center

• Triple bearing design
• Machined from one piece of forging, hardened and precisely ground
• Accuracy is less or equal to .0002″ TIR
• Ultra precision radial bearing reduces run out to a minimum after continuous use
• Load rate is 1,760 lbs
• Maximum RPM is 3,800
• Concentricity is within .0002″

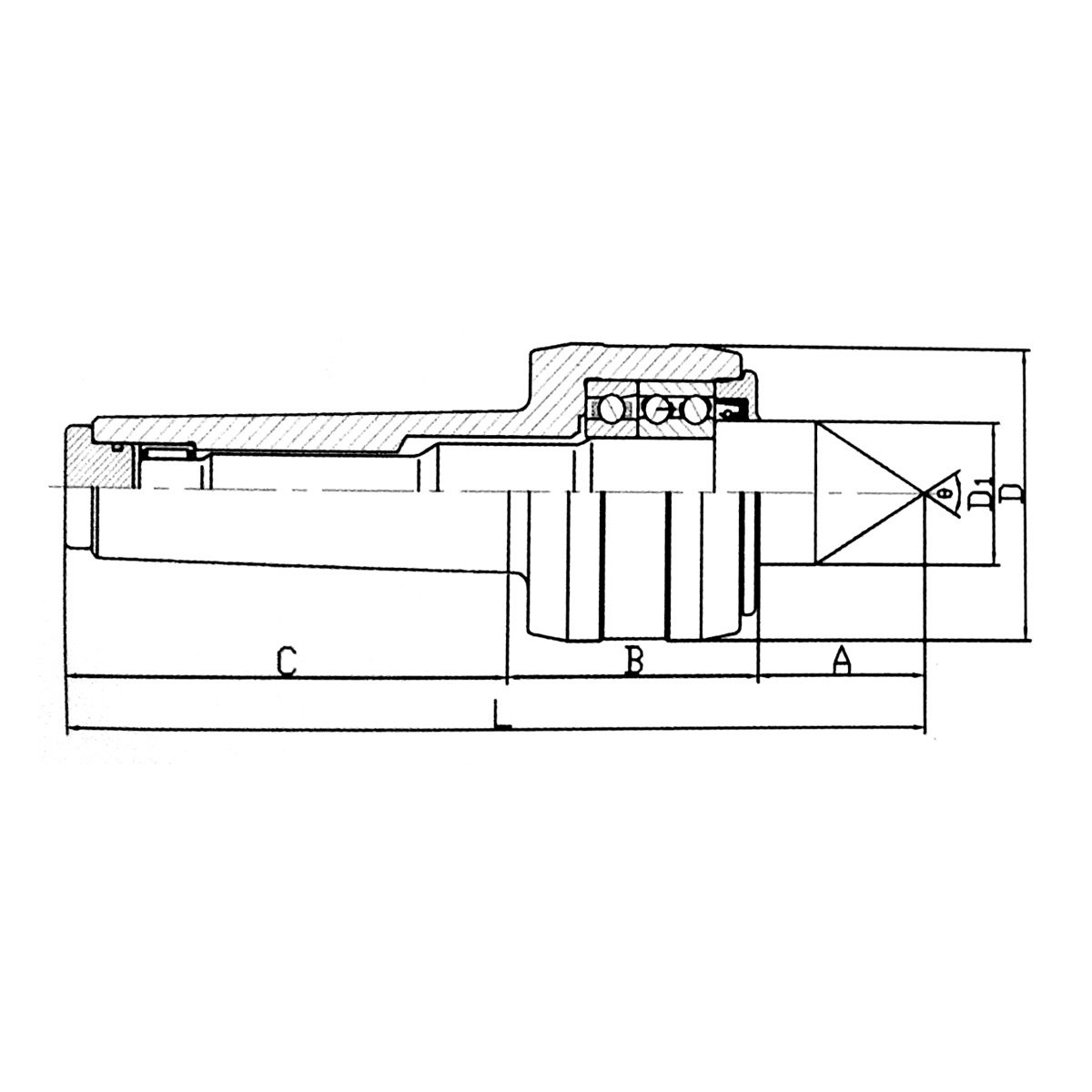

• A is 42mm
• B is 62mm
• C is 108mm
• D is 63mm
• D1 is 32mm
• L is 208mm

Specifications

• 4MT Ultra Precision Heavy Duty Live Center
• Triple bearing design.
• Machined from one piece of forging, hardened and precisely ground.
• Accuracy is less or equal to .0002″ TIR.
• Ultra precision radial bearing reduces run out to a minimum after continuous use.
• Load rate is 1,760 lbs.
• Maximum RPM is 3,800.
• Concentricity is within .0002″.
• A is 42mm.
• B is 62mm.
• C is 108mm.
• D is 63mm.
• D1 is 32mm.
• L is 208mm.
• Weight: 4.5
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
