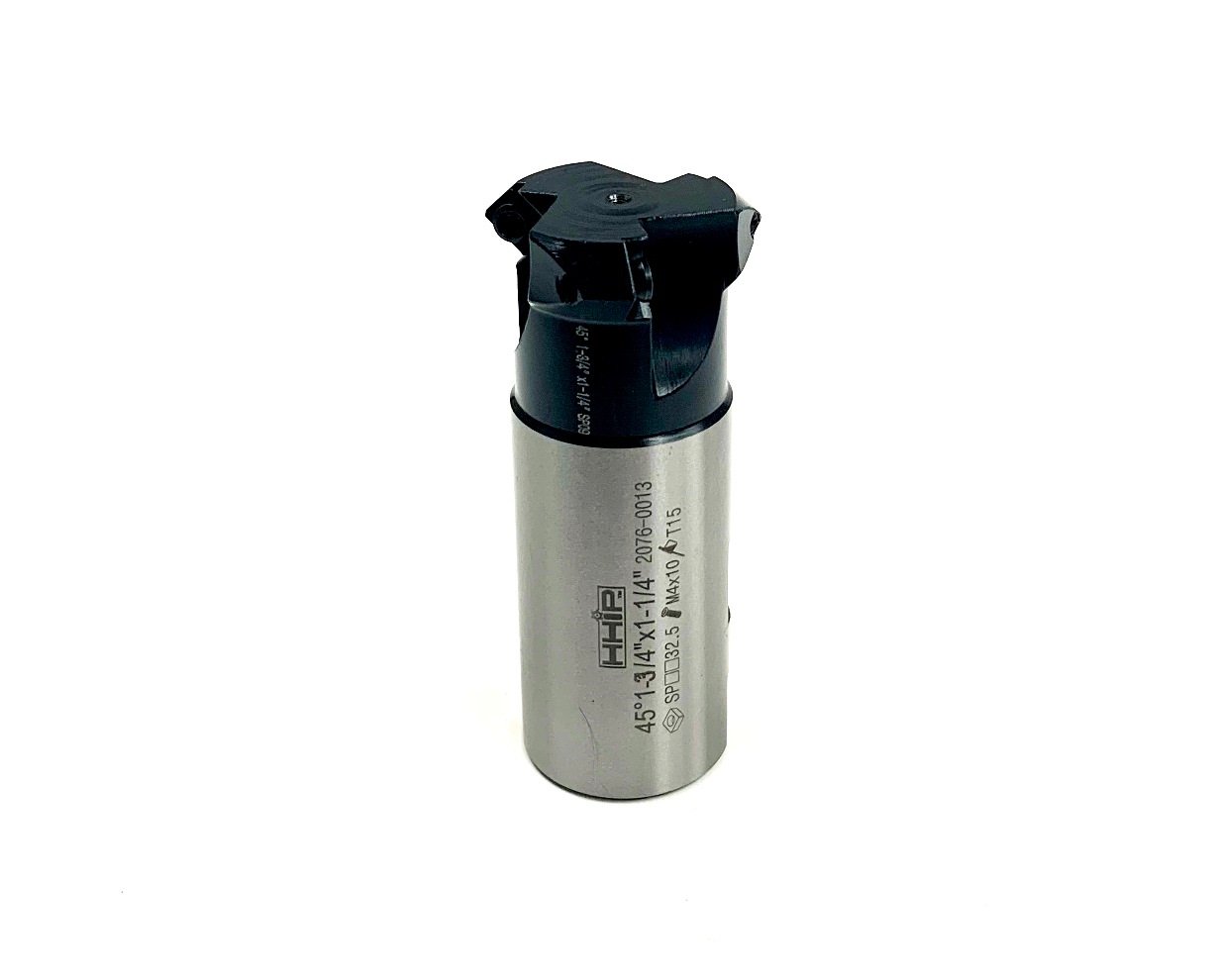

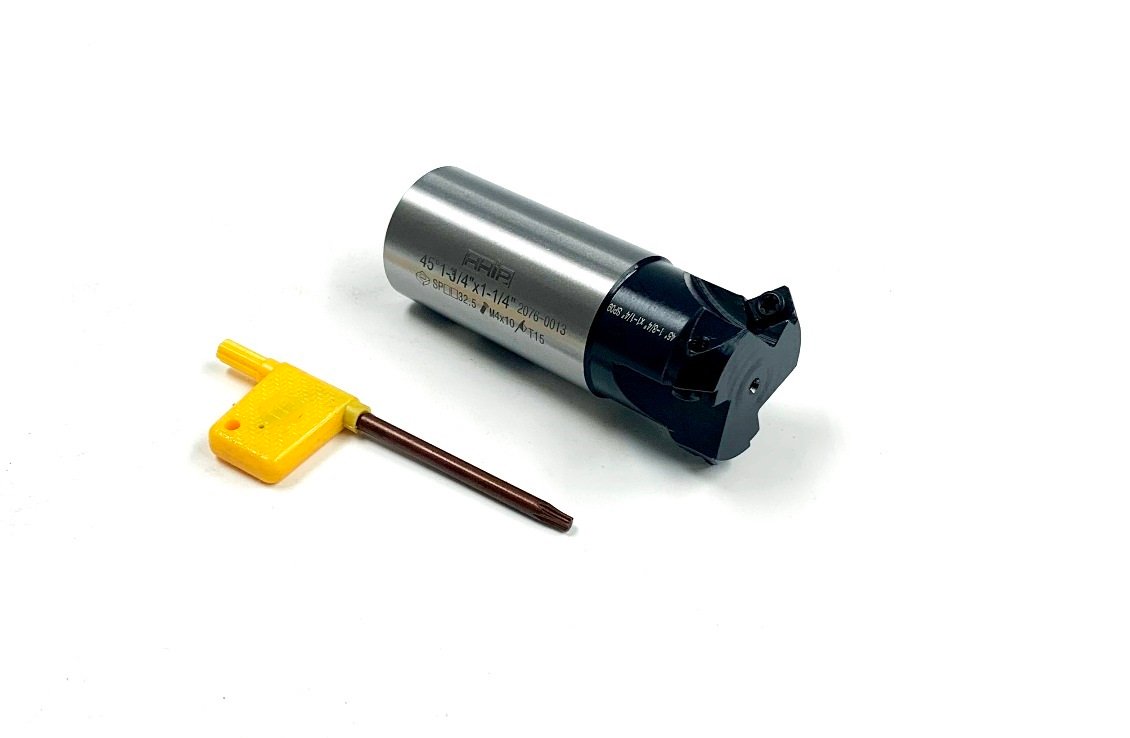

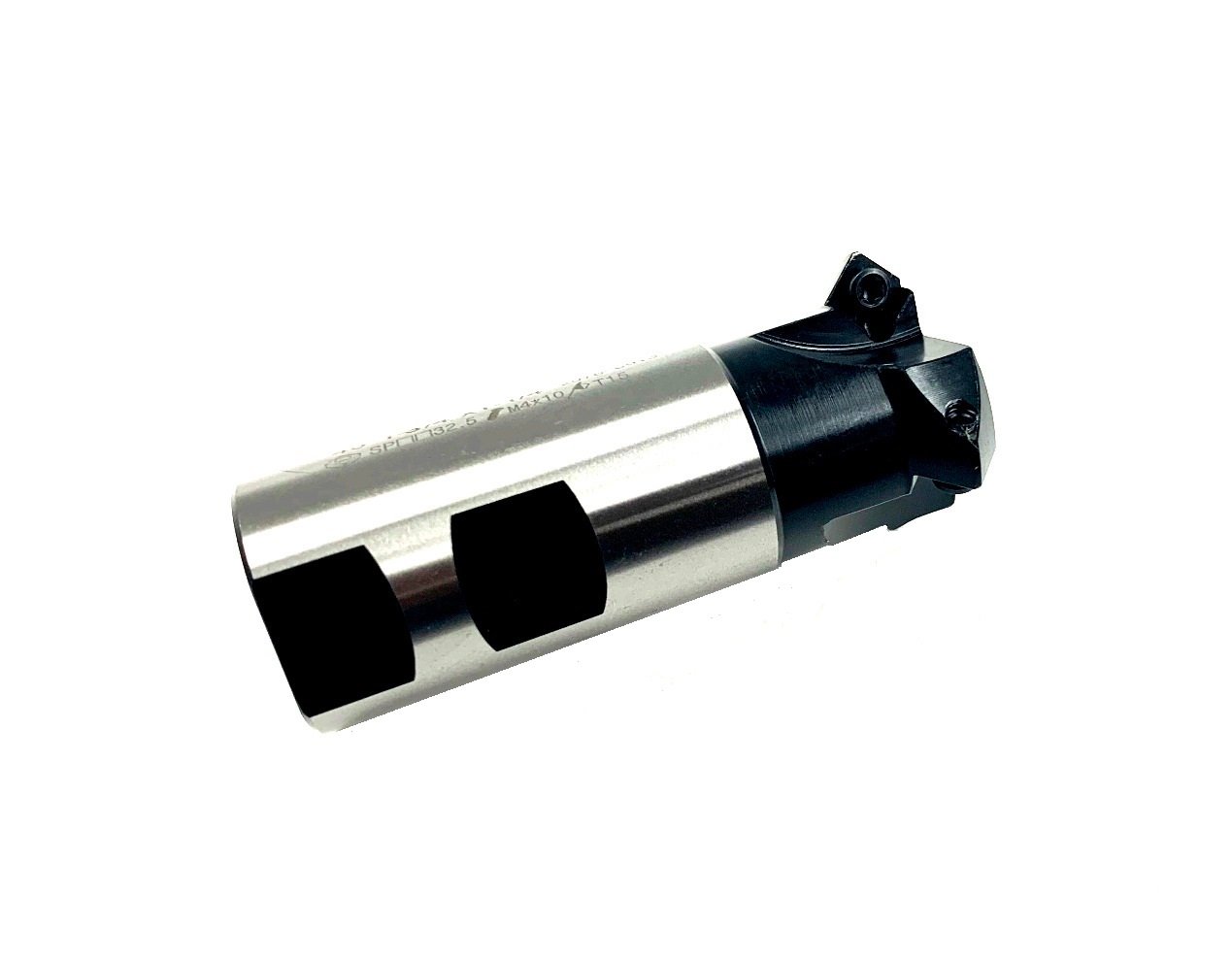

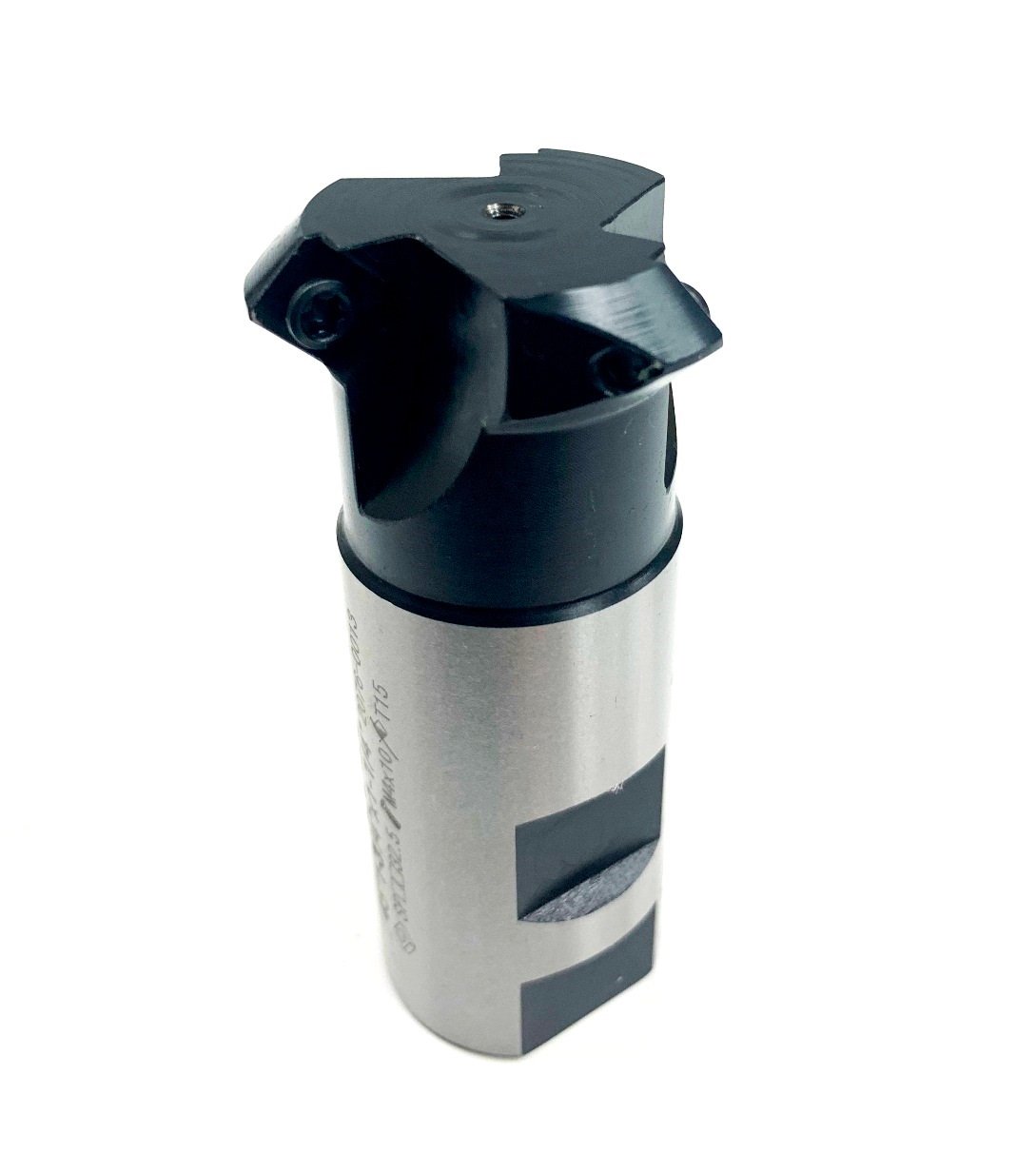

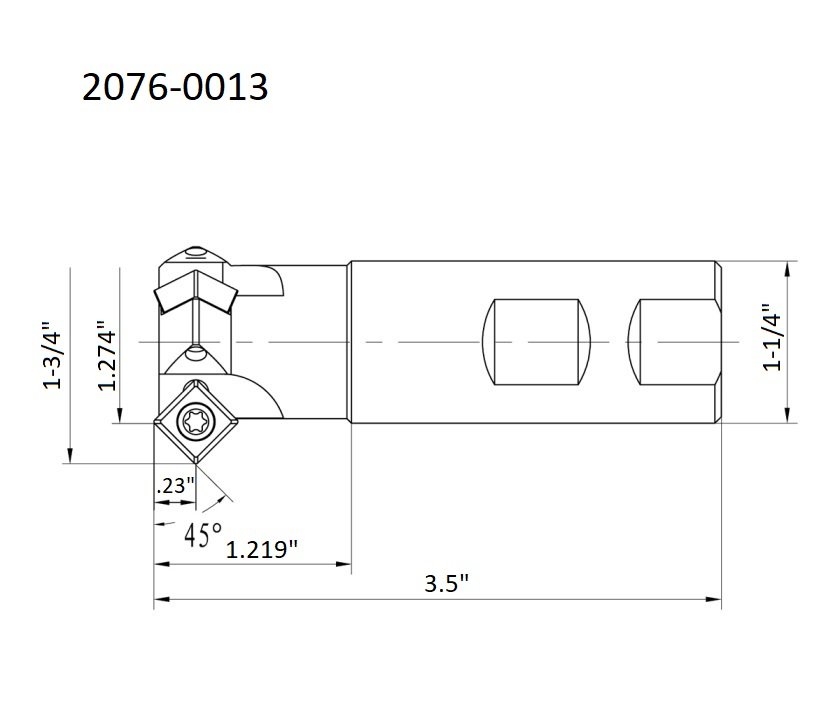

45 DEGREE 1-3/4″ X 1-1/4 SHANK 3-INSERT INDEXABLE CHAMERING END MILL (2076-0013)

45 DEGREE 1-3/4″ X 1-1/4 SHANK 3-INSERT INDEXABLE CHAMERING END MILL (2076-0013) (SKU: 2076-0013)

45 Degree 1-3/4″ X 1-1/4 Shank 3-Insert Indexable Chamering End Mill

• Straight shank
• 3 SPMT32 carbide inserts are not included
• Minimum cutting diameter is 0.91″
• Overall length is 3.94″
• Cutting diameter is 0.23″
• Insert screw size is M4 X 8
• Used for chamfering and deburring on the top surface and the underside of the workpiece, can also be used for face milling of v-shaped slots
• The inserts that fit this tool are our 6018-3251 for the SPMT 32.51 TiN Coated or 6018-3252 for the SPMT 32.52 TiN Coated

Specifications

• 45 Degree 1-3/4″ X 1-1/4 Shank 3-Insert Indexable Chamering End Mill
• Straight shank.
• 3 SPMT32 carbide inserts are not included.
• Minimum cutting diameter is 0.91″.
• Overall length is 3.94″.
• Cutting diameter is 0.23″.
• Insert screw size is M4 X 8.
• Used for chamfering and deburring on the top surface and the underside of the workpiece, can also be used for face milling of v-shaped slots
• The inserts that fit this tool are our 6018-3251 for the SPMT 32.51 TiN Coated or 6018-3252 for the SPMT 32.52 TiN Coated.
• Weight: 1.3
• Dimensions: L 1, W 1, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
