5MT MEDIUM DUTY SMALL HEAD LIVE CENTER (3900-5041)

5MT MEDIUM DUTY SMALL HEAD LIVE CENTER (3900-5041) (SKU: 3900-5041)

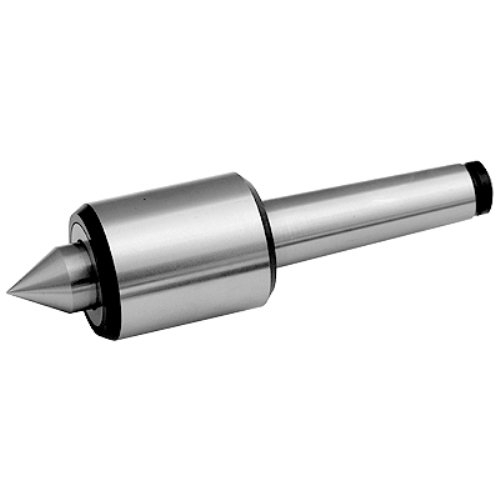

5MT Medium Duty Small Head Live Center

• Concentricity is within .0002″
• Live center has a 60° angle
• Made of hardened steel that is ground for high accuracy
• The central spindle is lengthened to reduce vibration
• Two specially designed, high-quality ball thrust bearings
• Complete protection of bearings from the ingress of coolant, dirt or swart

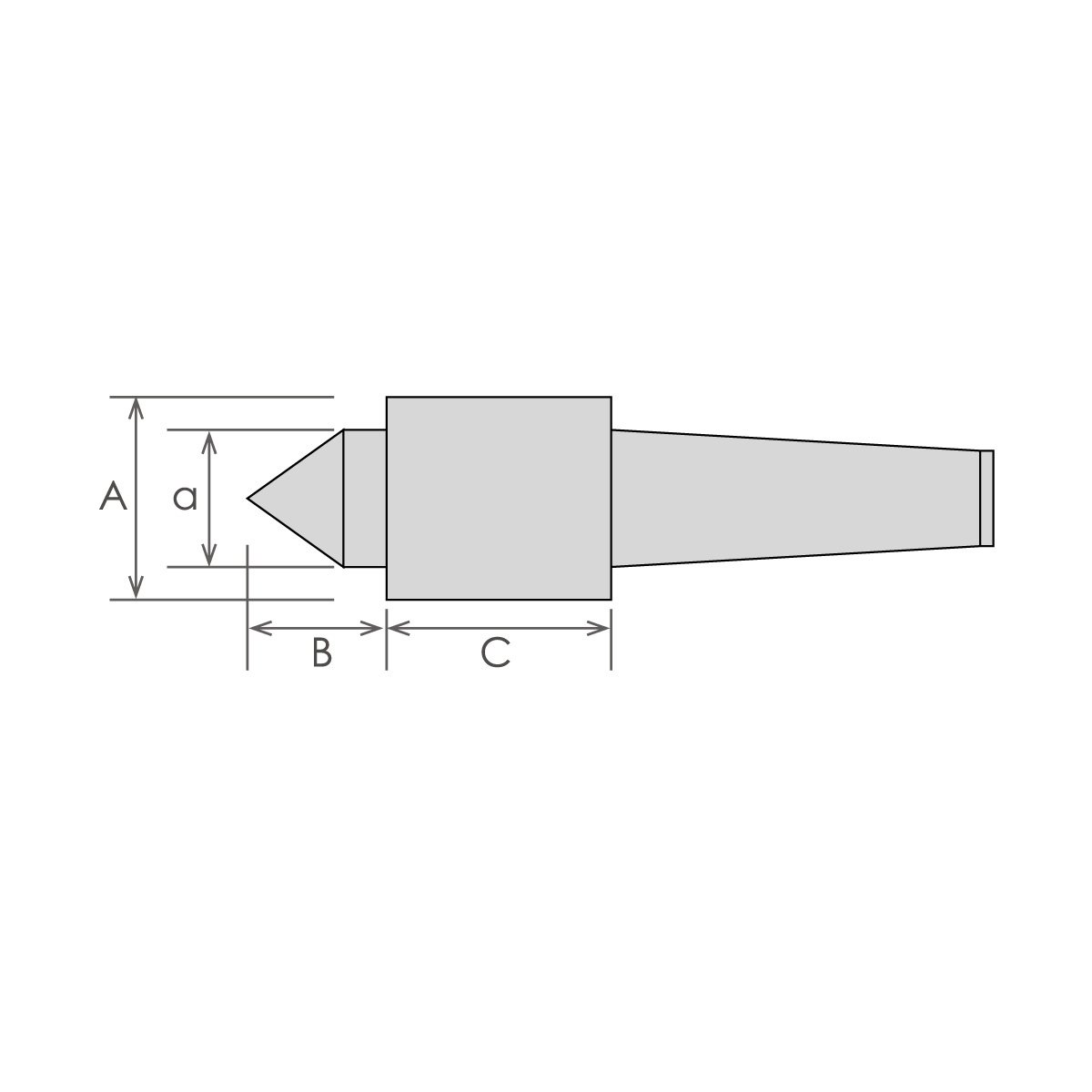

• a is 1.38
• A is 2.70
• B is 1.90
• C is 3.25
• Overall length is 10.50″
• Load rate is 1,760 lbs
• Maximum RPM is 2,000

Specifications

• 5MT Medium Duty Small Head Live Center
• Concentricity is within .0002″.
• Live center has a 60° angle.
• Made of hardened steel that is ground for high accuracy.
• The central spindle is lengthened to reduce vibration.
• Two specially designed, high-quality ball thrust bearings.
• Complete protection of bearings from the ingress of coolant, dirt or swart.
• a is 1.38.
• A is 2.70.
• B is 1.90.
• C is 3.25.
• Overall length is 10.50″.
• Load rate is 1,760 lbs.
• Maximum RPM is 2,000.
• Weight: 7.3
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
