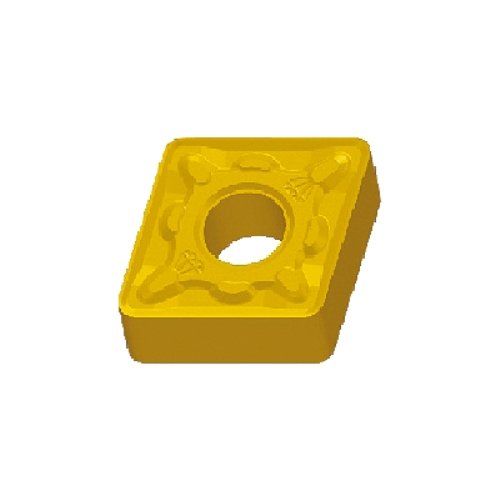

CNMG-543-DM COATED CARBIDE INSERT (6000-2543)

CNMG-543-DM COATED CARBIDE INSERT (6000-2543) (SKU: 6000-2543)

CNMG-543-DM Diamond Negative Rake Insert (6000-2543)

• Widely used chipbreaker is used for semi-finishing and finishing of steel and stainless steel
• Has a tough cutting edge and is used for roughing/machining of internal holes and intermittent machining of work pieces with irregular surfaces
• Grade XAB749 provides a cutting edge with strength and toughness optimally combined with an MT-TiCN, thick layer Al2O3TiN coating
• It is a suitable grade for a wide number of applications
• It is good for finishing, semi-finishing and light roughing of steel, cast steel and stainless steel
• ISO Insert No. is CNMG160612DM
• I.C. is 5/8″
• L is 5/8″
• S is 1/4″
• d is 1/4″
• r is .0472

Specifications

• CNMG-543-DM Negative Rake Coated Carbide Insert
• Widely used chipbreaker is used for semi-finishing and finishing of steel and stainless steel.
• Has a tough cutting edge and is used for roughing/machining of internal holes and intermittent machining of work pieces with irregular surfaces.
• Grade XAB749 provides a cutting edge with strength and toughness optimally combined with an MT-TiCN, thick layer Al2O3TiN coating.
• It is a suitable grade for a wide number of applications.
• It is good for finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
• ISO Insert No. is CNMG160612DM
• I.C. is 5/8″.
• L is 5/8″.
• S is 1/4″.
• d is 1/4″.
• r is .0472.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
