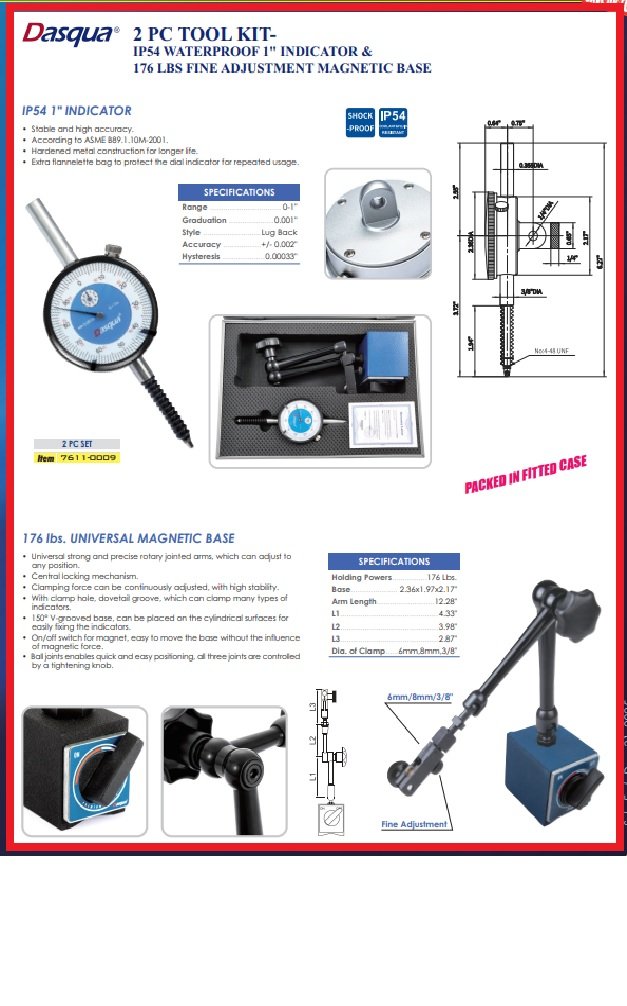

DASQUA 2 PIECE TOOL KIT WITH IP54 1″ INDICATOR & 176LB. MAG BASE (7611-0009)

DASQUA 2 PIECE TOOL KIT WITH IP54 1″ INDICATOR & 176LB. MAG BASE (7611-0009) (SKU: 7611-0009)

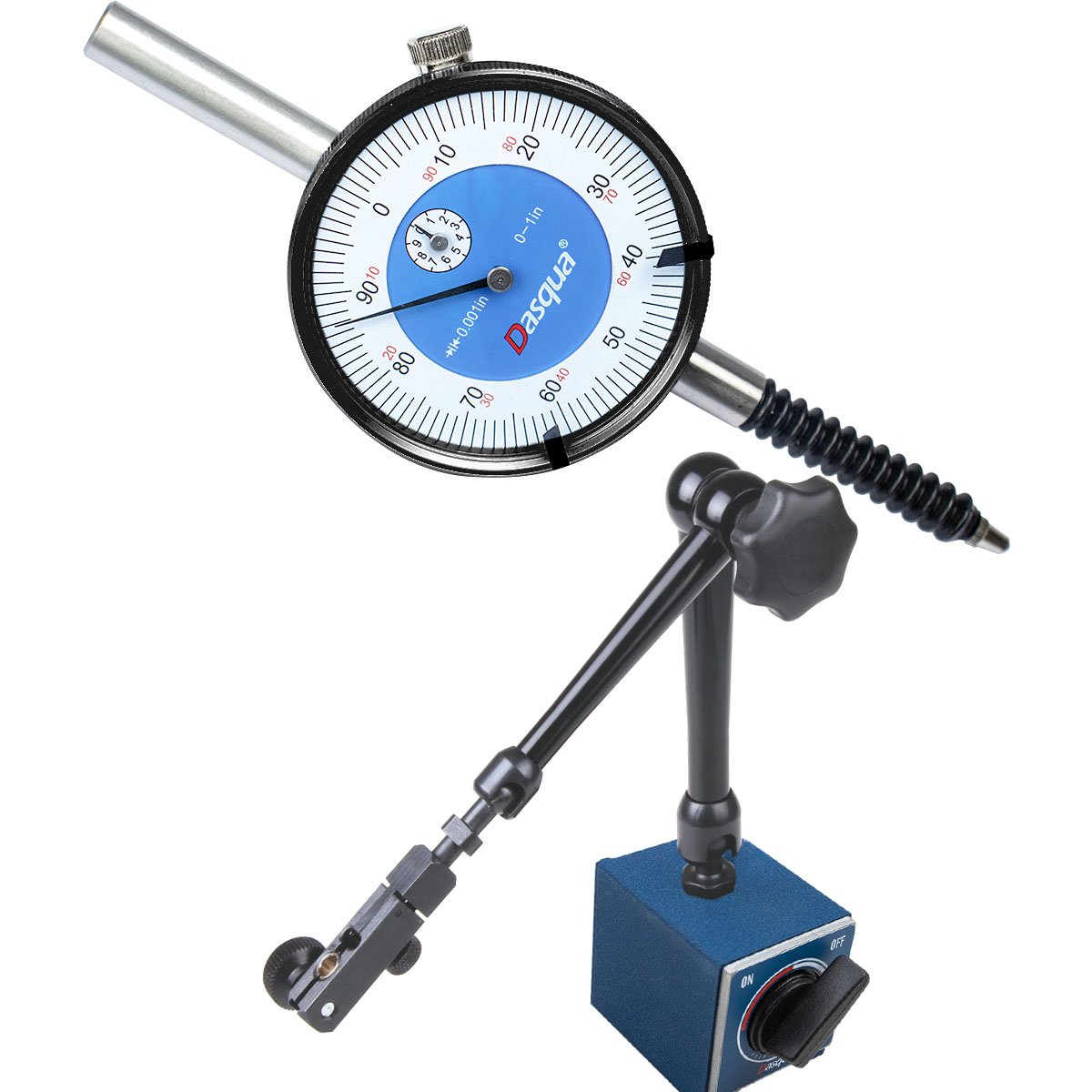

Dasqua 2 Piece Tool Kit With IP54 1″ Indicator & 176lb. Mag Base The IP54 indicator is shock-proof and coolant & fluid resistant. The indicator is a lug back indicator with a range of 0-1″ and 0.001″ graduation. The indicator accuracy is +/-0.002″ and hysteresis is 0.00033″. The mag base has universal strong and precise rotary jointed arms, which can adjust to any position. The mag base has a central locking mechanism and the clamping force can be continually adjusted. The indicator has a hardened metal construction for longer life. It is made in accordance to ASME B89.1.10M-2001. Set includes an extra flannelette bag to protect the dial indicator for repeated usage. The clamp on the mag base accepts 6mm, 8mm & 3/8″ indicator stems. 150 degree v-grooved base allows the mag base to be placed on cylindrical surfaces. The mag base ball joints enable quick and easy positioning with a tightening knob. There is also an on/off switch so it is easy to relocate the mag base. This set is packed in a fitted case.

Specifications

• Dasqua 2 Piece Tool Kit With IP54 1″ Indicator & 176lb. Mag Base
• The IP54 indicator is shock-proof and coolant & fluid resistant.

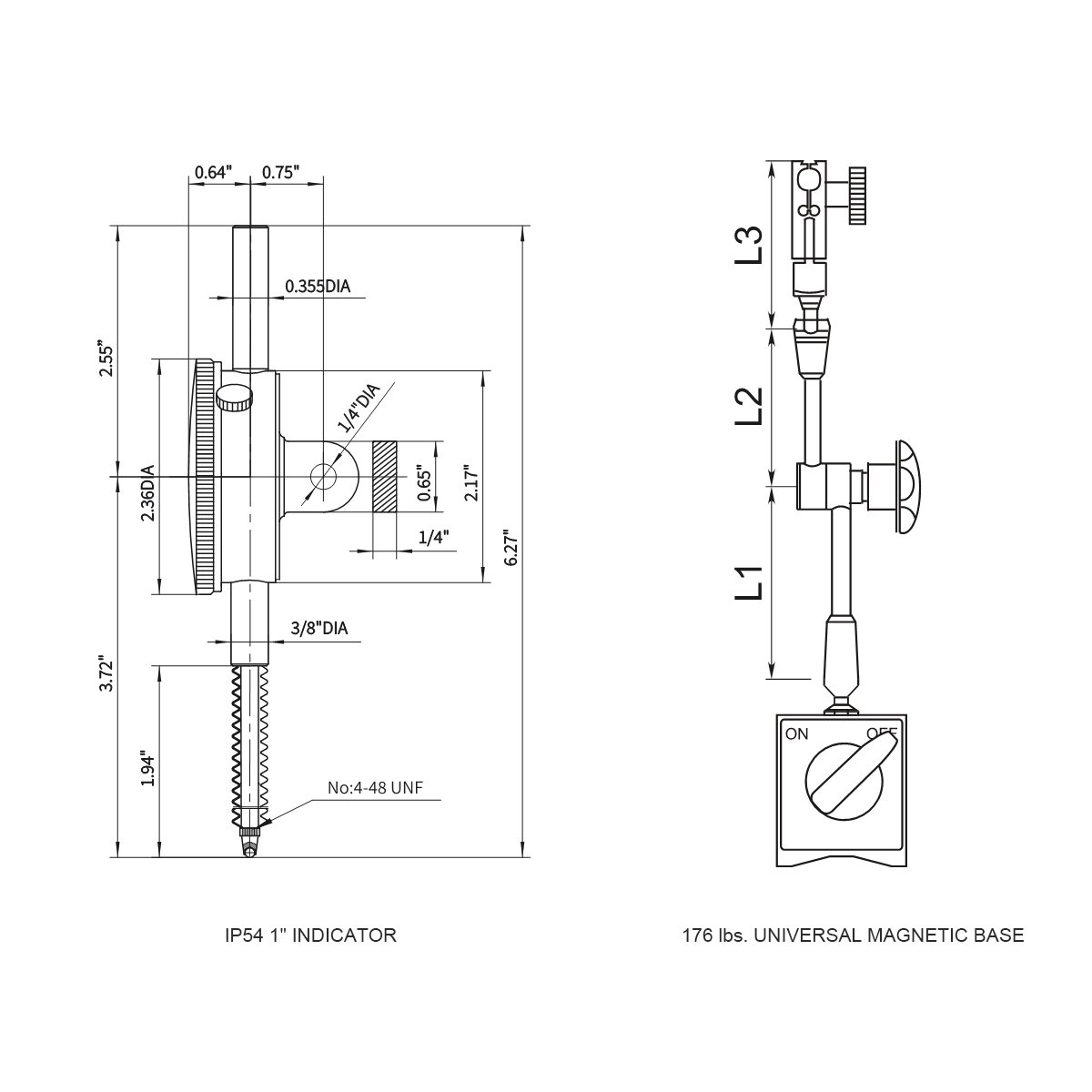

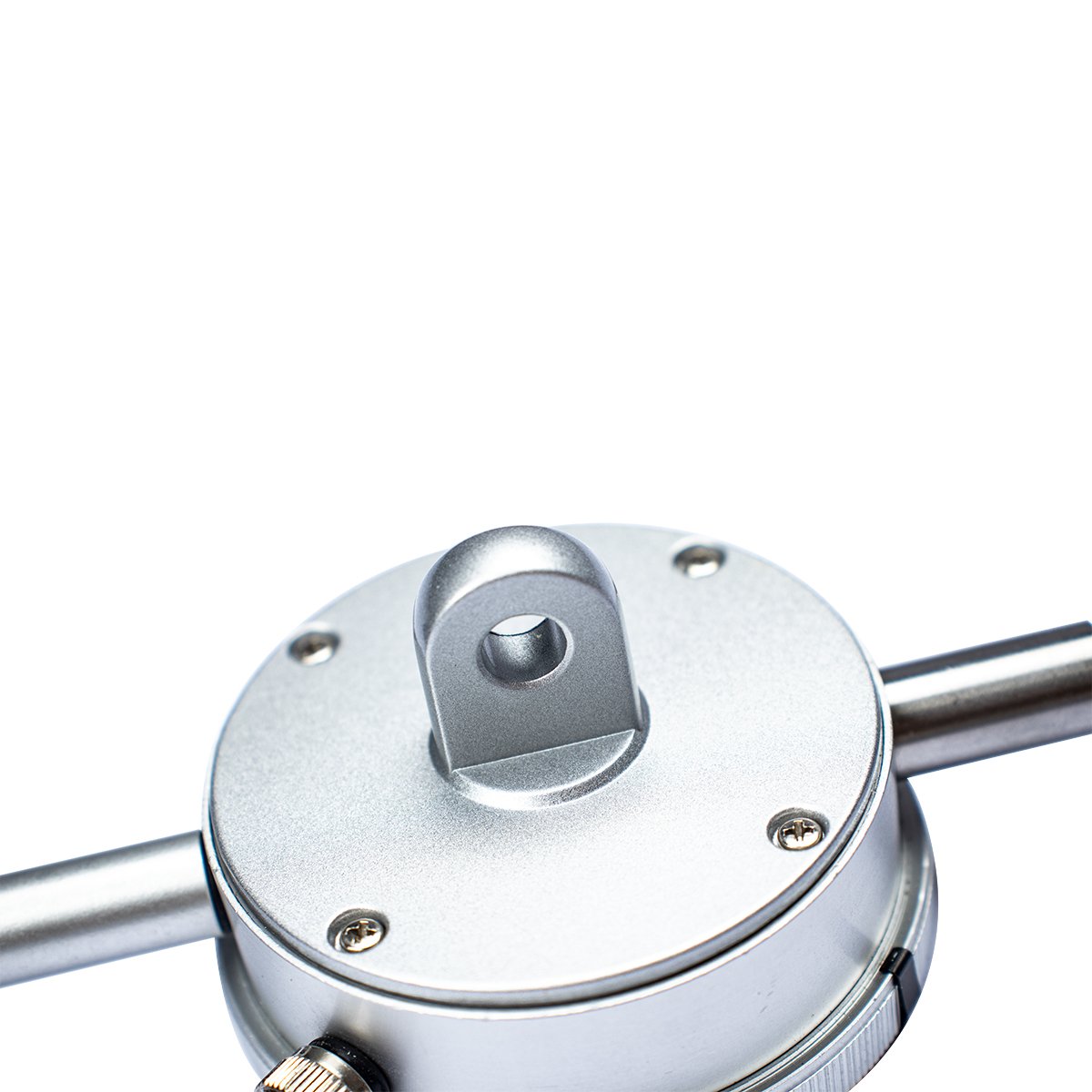

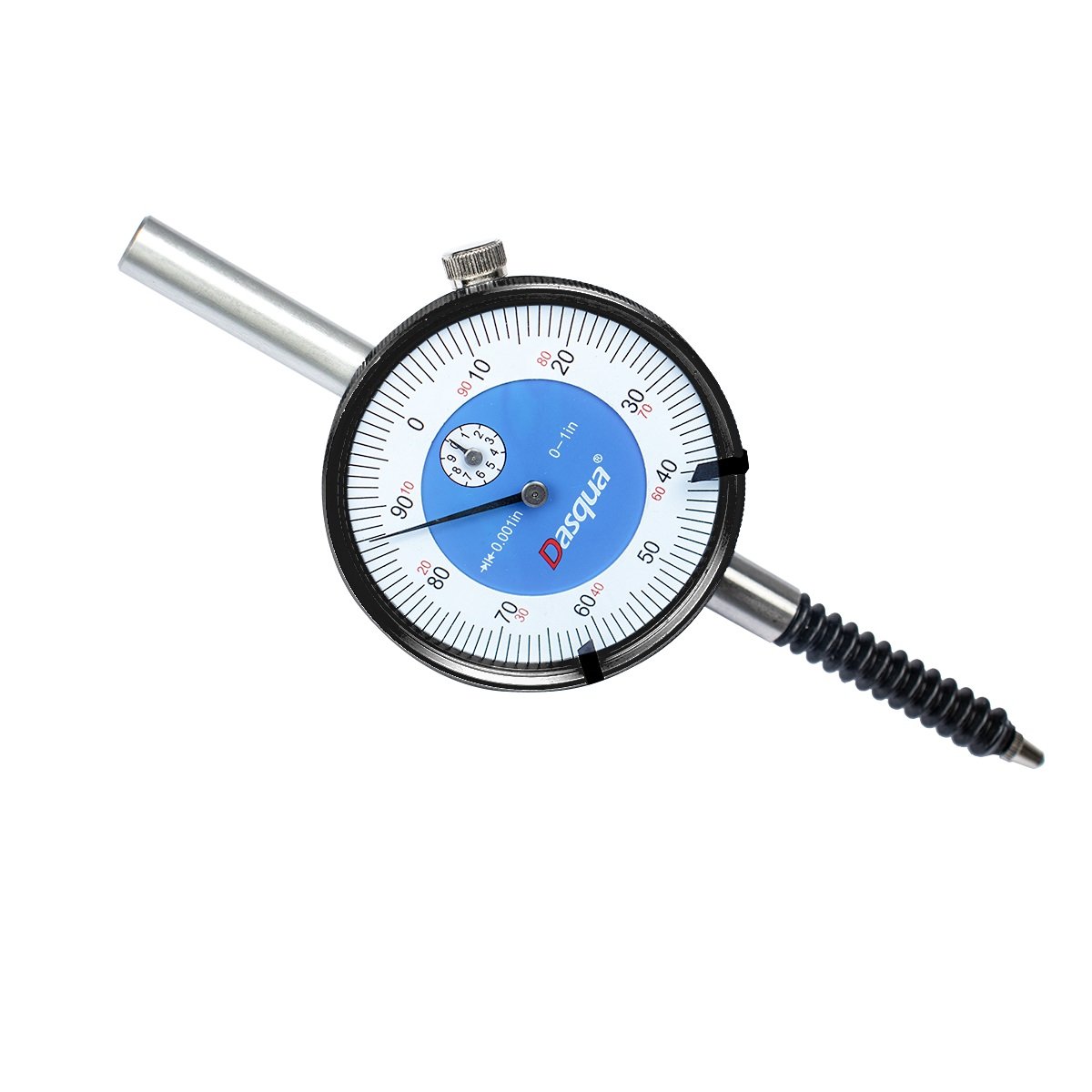

• The indicator is a lug back indicator with a range of 0-1″ and 0.001″ graduation.
• The indicator accuracy is +/-0.002″ and hysteresis is 0.00033″.

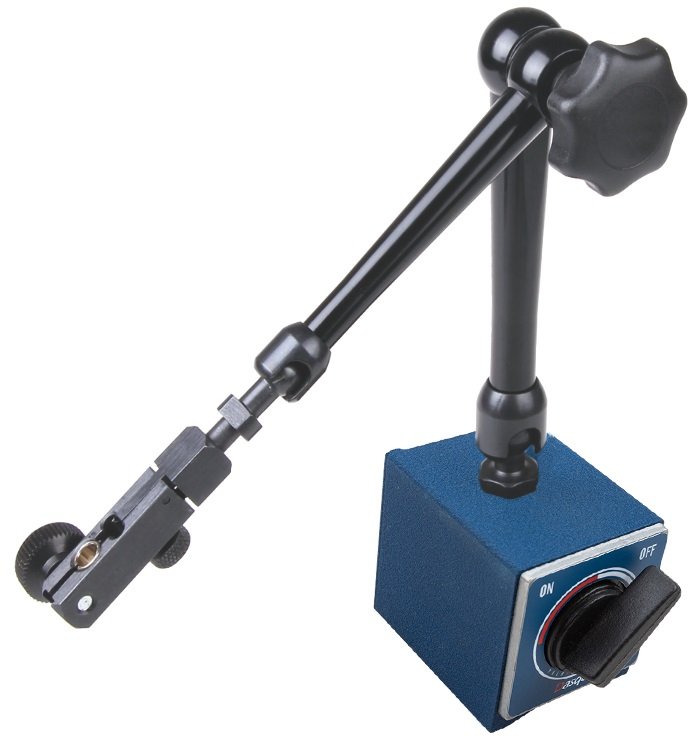

• The mag base has universal strong and precise rotary jointed arms, which can adjust to any position.
• The mag base has a central locking mechanism and the clamping force can be continually adjusted.
• The indicator has a hardened metal construction for longer life. It is made in accordance to ASME B89.1.10M-2001.
• Set includes an extra flannelette bag to protect the dial indicator for repeated usage.

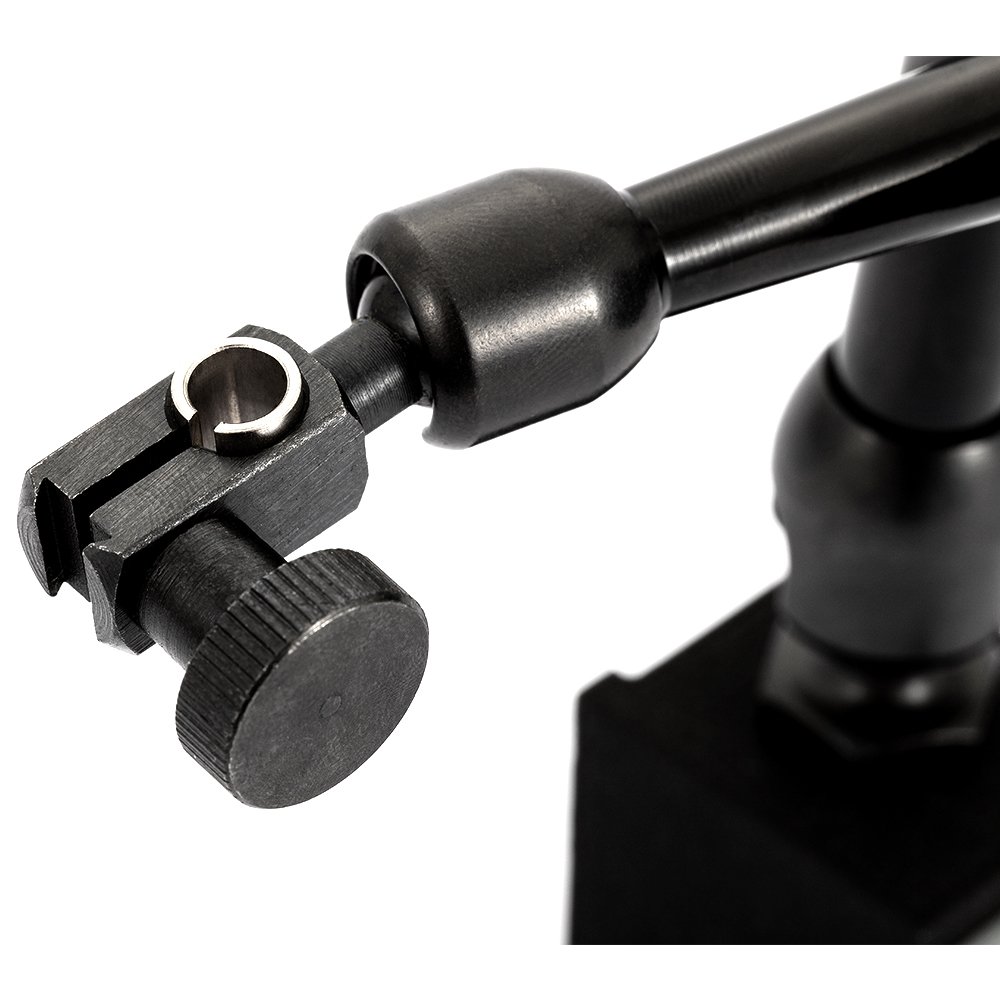

• The clamp on the mag base accepts 6mm, 8mm & 3/8″ indicator stems.

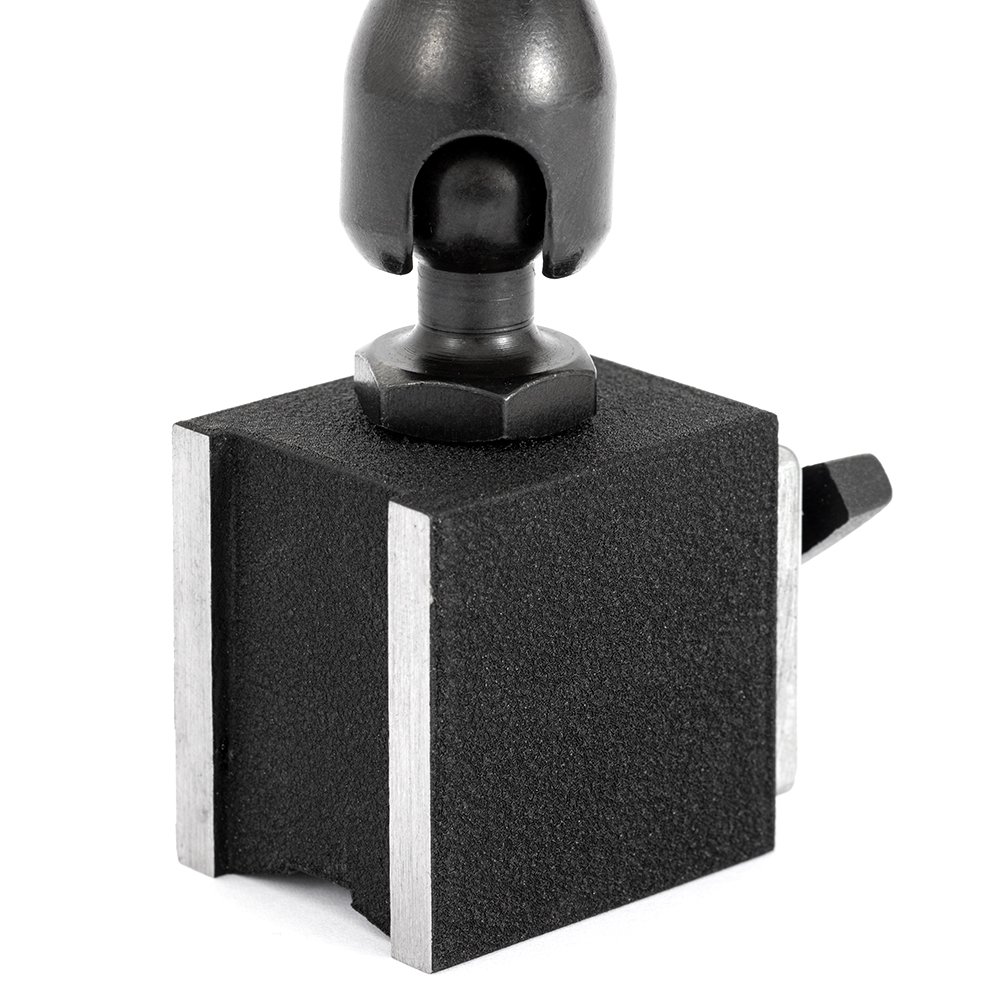

• 150 degree v-grooved base allows the mag base to be placed on cylindrical surfaces.

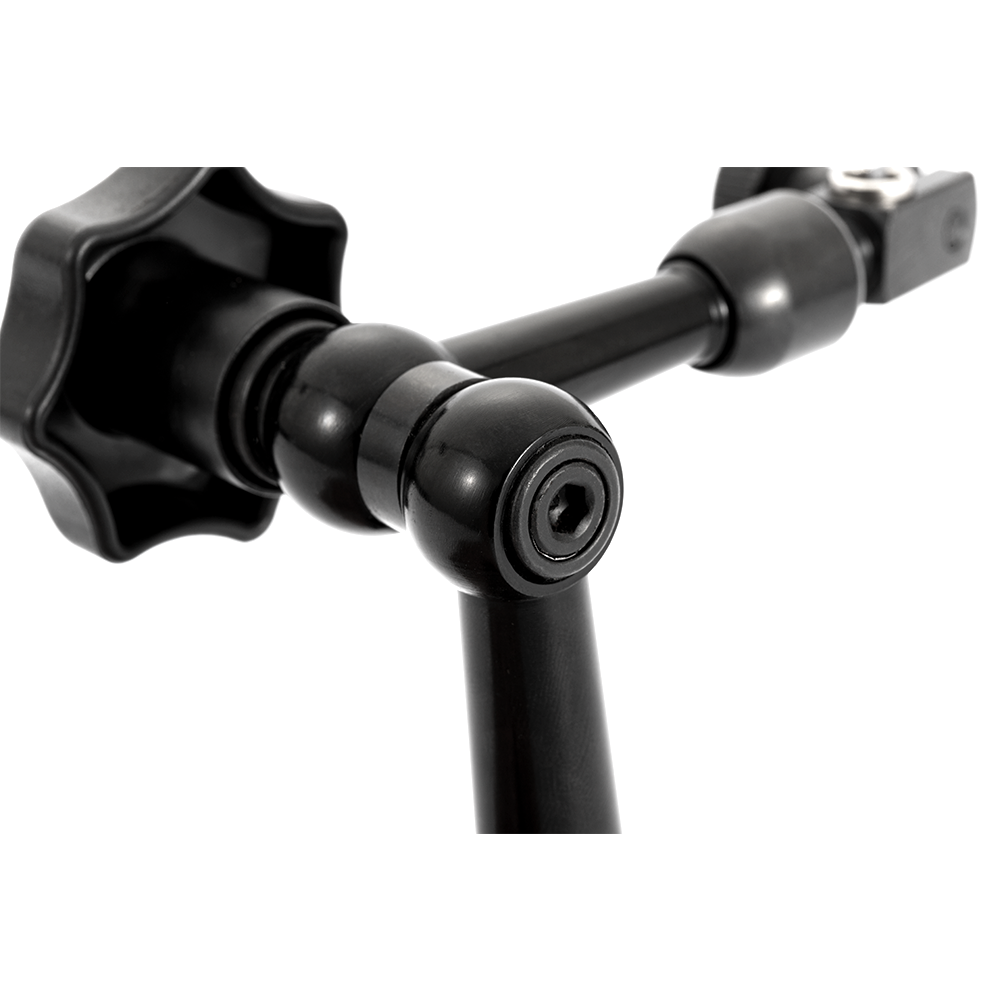

• The mag base ball joints enable quick and easy positioning with a tightening knob.

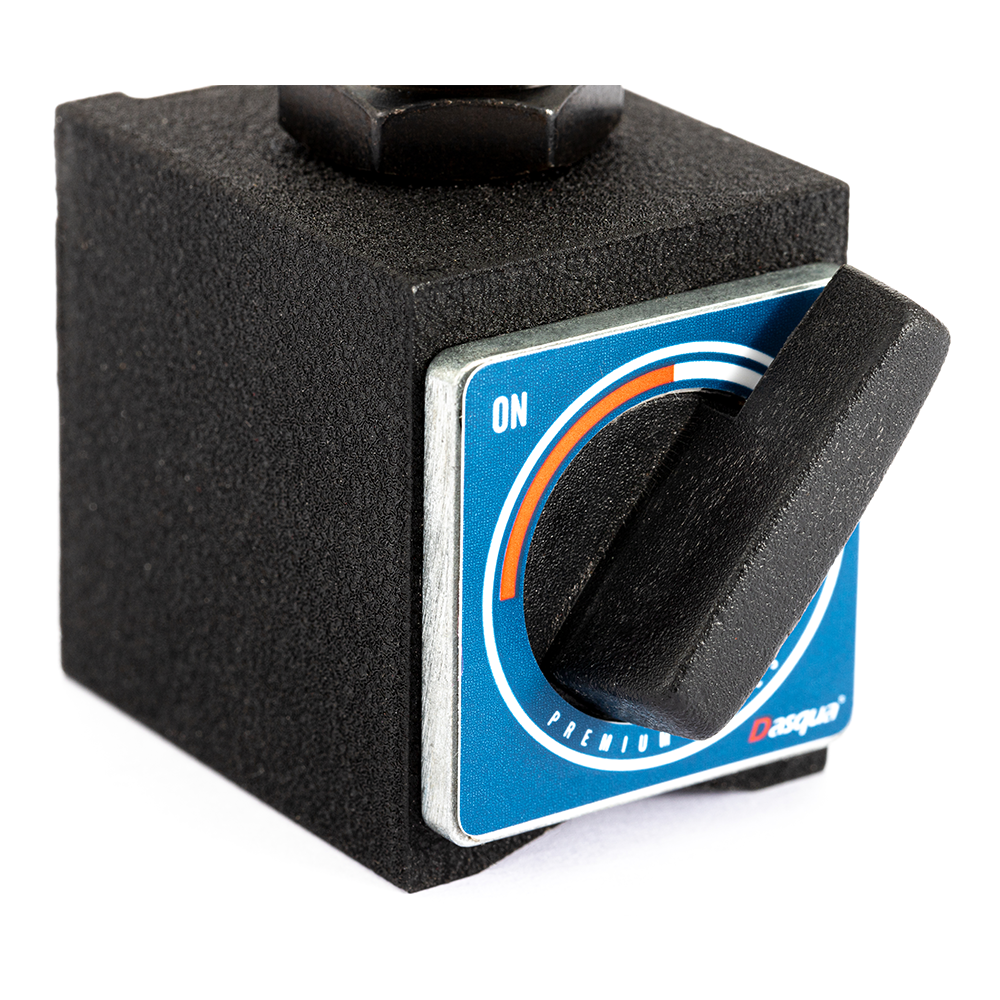

• There is also an on/off switch so it is easy to relocate the mag base.

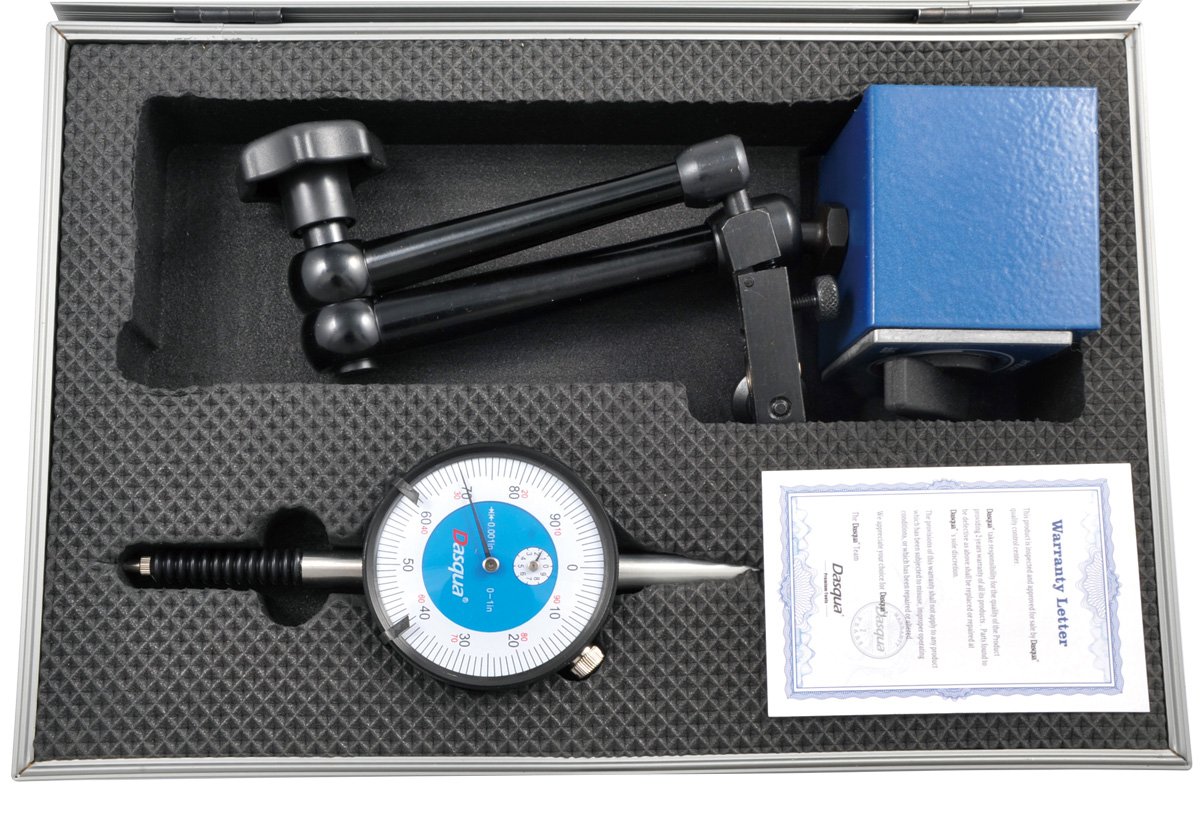

• This set is packed in a fitted case.
• Weight: 4.3
• Dimensions: L 11, W 8, H 4

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.
