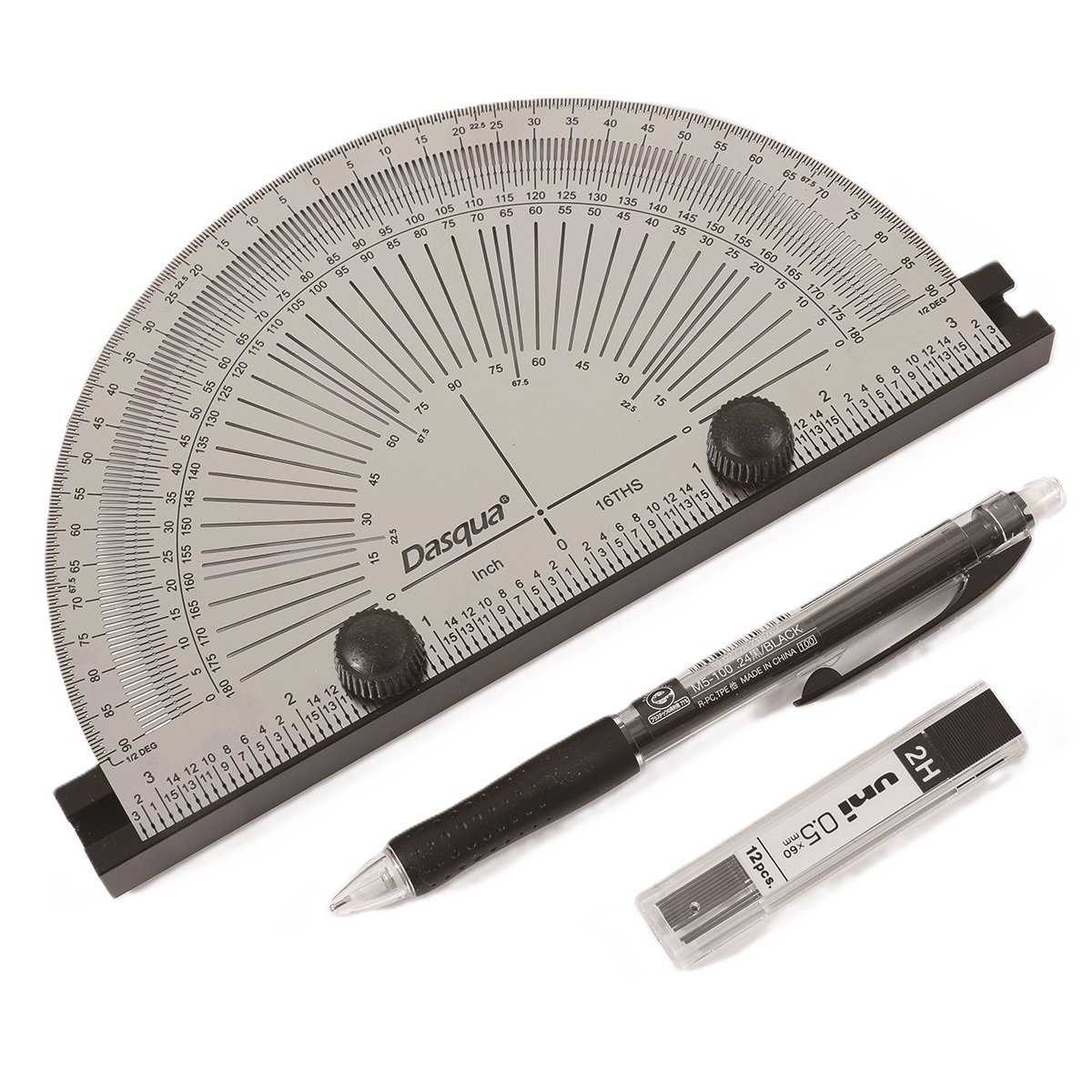

DASQUA 6IN PRECISION MARKING PROTRACTOR WITH PENCIL AND REFILL LEAD (SKU: 1804-5778)
High-Precision Angular & Linear Layout for Professionals
The Dasqua 6″ Precision Marking Protractor is a multi-functional powerhouse designed for machinists, CNC programmers, and precision fabricators. Unlike standard stamped protractors, this tool is CNC-processed from high-grade stainless steel. This manufacturing process ensures that every graduation is crisp and every edge is perfectly straight, providing the technical confidence required for high-tolerance shop work.
Versatility for Complex Geometry
This tool eliminates the need for multiple layout instruments by combining the functions of a protractor, a T-rule, and a combination square. Its unique design allows for:

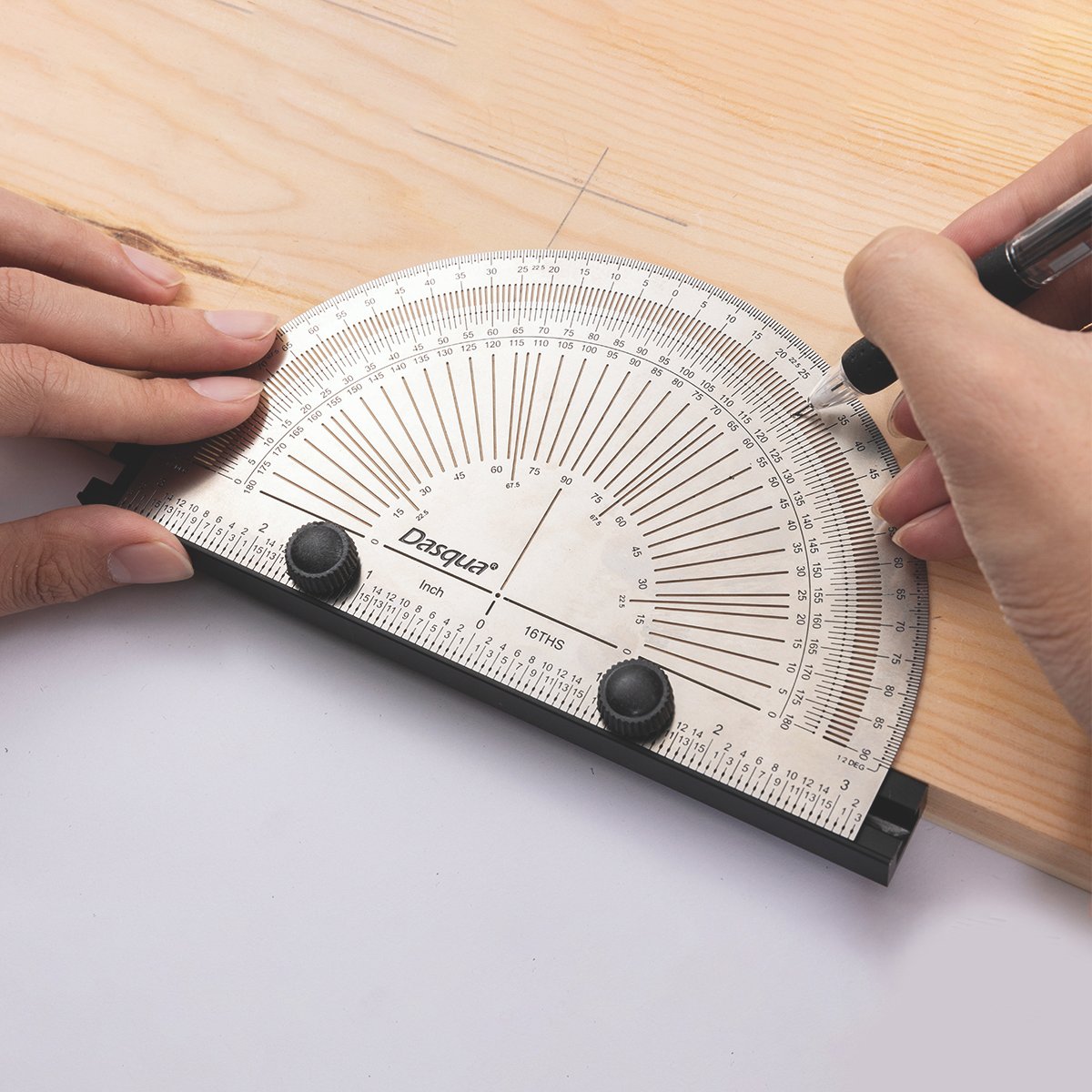

- Precision Angular Marking: Easily set and scribe specific angles with a stable pivot and a clear, easy-to-read scale.
- Comprehensive Line Layout: Draw horizontal, vertical, long, short, and parallel lines with repeatable accuracy thanks to the specialized marking holes.
- Cylindrical Compatibility: The thin, flexible stainless-steel blade allows you to wrap the rule slightly or maintain contact on circular items for accurate marking on curved surfaces.
- Instant Right Angles: Built-in combination square functionality for rapid 90-degree checks and marking.
Built for the Industrial Shop Floor
Engineered to withstand the daily rigors of a machine shop or fabrication environment, the Dasqua 6″ Protractor features a glare-reducing texture. This ensures that the scale remains readable under bright overhead shop lights, reducing eye strain and layout errors. The inclusion of a dedicated mechanical pencil and refill leads ensures you have a complete, ready-to-use system out of the box.
Technical Specifications
| Part Number | 1804-5778 |
|---|---|
| Brand | Dasqua |
| Rule Length | 6 Inches (150mm) |
| Material | CNC-Processed Stainless Steel |
| Graduations | |
| Shipping Weight | 0.35 lbs |
| Accessories Included | Mechanical Pencil & Refill Lead |
Shop-Floor Benefits
- Improved Process Stability: Consistently accurate layout reduces scrap and rework.
- Enhanced Productivity: Switch between linear and angular marking without changing tools.
- Long Tool Life: Durable stainless steel construction resists corrosion and wear from industrial fluids.
Product FAQ
Q: Can I use this for layout on round bar stock?
A: Yes. The flexible nature of the thin stainless steel rule allows it to follow the contour of circular items for precise marking.
Q: Is the protractor head adjustable or fixed?
A: It is designed for precision angular marking, allowing you to pivot and set the rule at the desired angle for scribing.
Q: Does the scale use laser etching?
A: Dasqua uses high-precision CNC processing for their scales, providing deep, clear markings that are far more durable than printed alternatives.
