HHIP 6 X 5 X 4.5″ ANGLE PLATE & 1-2-3 BLOCK SET MATCHED PAIR (9999-0007)

HHIP 6 X 5 X 4.5″ ANGLE PLATE & 1-2-3 BLOCK SET MATCHED PAIR (9999-0007) (SKU: 9999-0007)

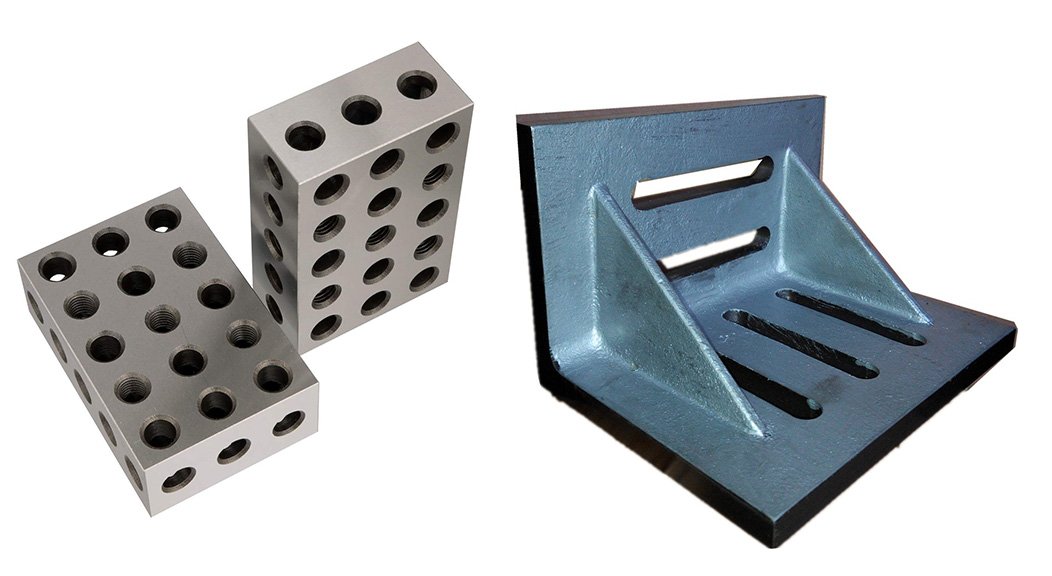

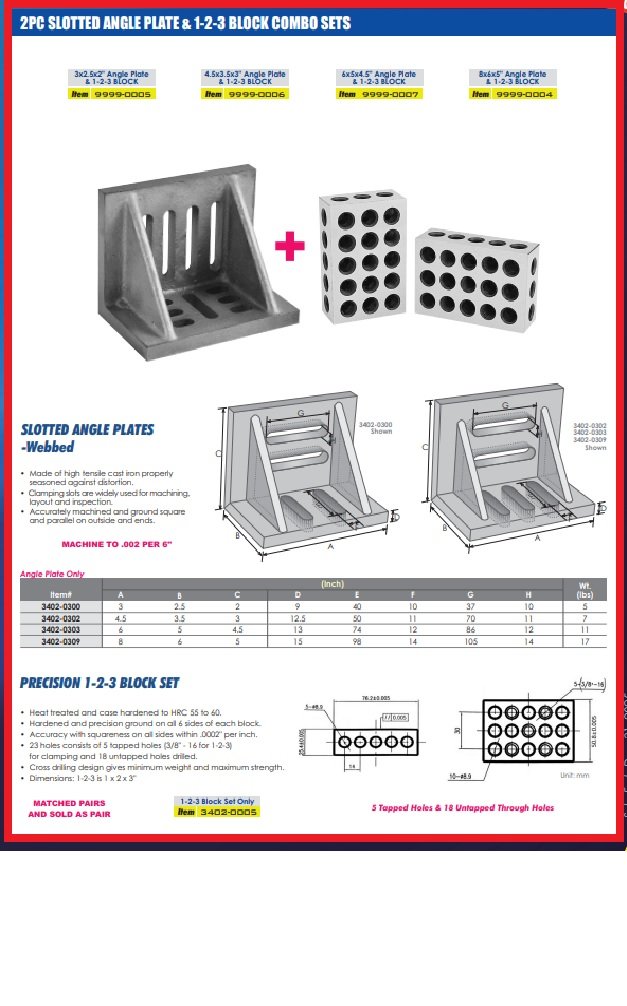

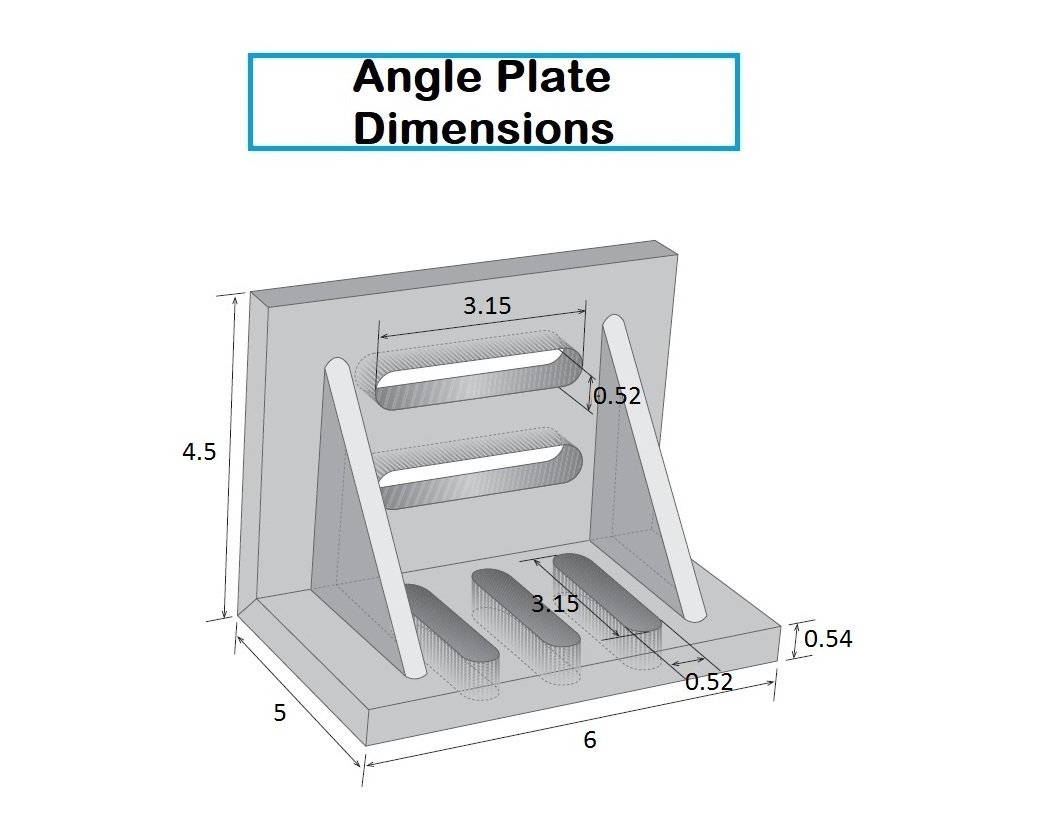

HHIP 6 X 5 X 4.5″ Webbed Slotted Angle Plate & 1-2-3 Block Set Matched Pair

• The angle plate is made of high tensile cast iron properly seasoned against distortion
• The angle plate clamping slots are widely used for machining, layout and inspection
• This angle plate is accurately machined and ground square and parallel on outside and ends

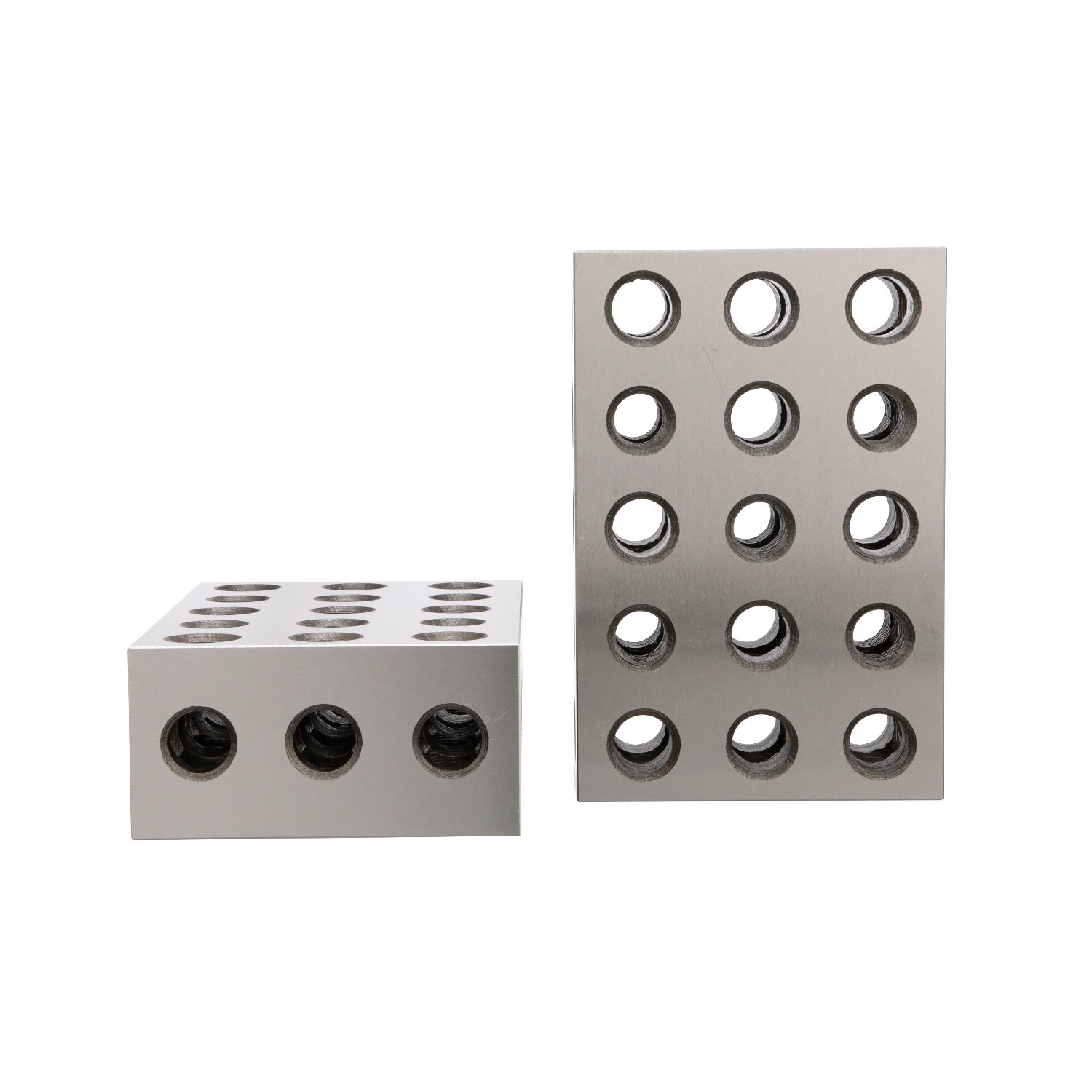

• The 1-2-3 block set is heat treated and case hardened to HRC 55 to 60 and is hardened and precision ground on all 6 sides of each block
• These 1-2-3 blocks have an accuracy with squareness on all sides within .0002″ per inch
• There are 23 holes on each block that consists of 5 tapped holes that are 3/8″-16 for clamping and 18 untapped holes
• The 1-2-3 blocks have a cross drilling design which gives them minimum weight and maximum strength

Specifications

• HHIP 6 X 5 X 4.5″ Webbed Slotted Angle Plate Angle Plate & 1-2-3 Block Set Matched Pair
• The angle plate is made of high tensile cast iron properly seasoned against distortion.
• The angle plate clamping slots are widely used for machining, layout and inspection.
• This angle plate is accurately machined and ground square and parallel on outside and ends.
• The 1-2-3 block set is heat treated and case hardened to HRC 55 to 60 and is hardened and precision ground on all 6 sides of each block.
• These 1-2-3 blocks have an accuracy with squareness on all sides within .0002″ per inch.
• There are 23 holes on each block that consists of 5 tapped holes that are 3/8″-16 for clamping and 18 untapped holes.
• The 1-2-3 blocks have a cross drilling design which gives them minimum weight and maximum strength.
• Weight: 8.6
• Dimensions: L 8, W 7, H 7

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
