5″ Lathe Chuck 3 Jaw GATOR Self-Centering Steel Body Plain Back 2 PC Hard Rev Jaws

$573.00

gator lathechuck-logo

FREE SHIPPING U.S. (exclude PO BOX), Hawaii, Alaska,.
U.S. territories and APO addresses



DELIVERY 3 – 7 DAYS



Availability: In stock

SKU: 1-105-0500 Category:

5″ Lathe Chuck 3 Jaw GATOR Self-Centering Steel Body Plain Back 2 PC Hard Rev Jaws 1-105-0600



Power of precision GATOR Lathe Chuck High Precision Steel Body Lathe Chuck. 2 years Warranty replacement jaws, hard jaws, soft jaws. Pinios, Scroll Plate, Half Ring, Fine Adjustment Screws, Pinion Sleeve, Pinion Screw, Chuck Wrench (Extended) is best price option in manual lathe chuck precision.

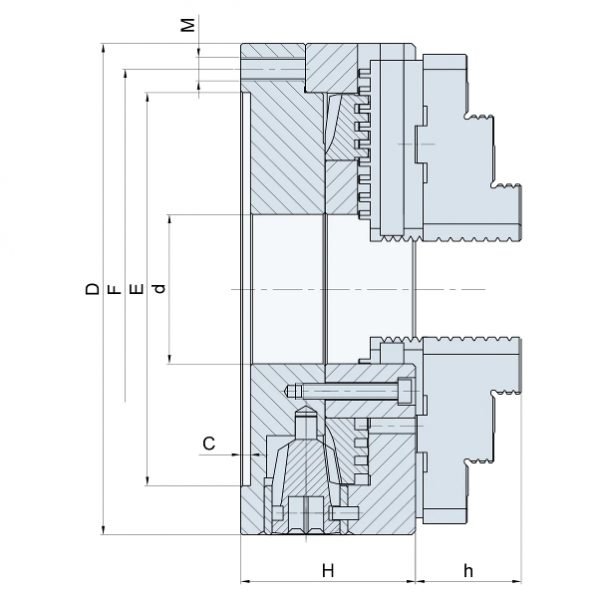

Gator Lathe Chuck Dimensions



Product Information

Chuck Type Scroll Self-Centering
Chuck Mount Plain Back
Spindle Type Requires Adapter
Chuck Dia (in) 5
Thru-Hole (in) 1.2598
Gripping Range Min-Max (in) 0.12 – 4.92
Chuck T.I.R (in) 0.0012
Max RPM 4800
Material Forged Steel
Jaws 3
Jaw Type 2 PC Hard  Reversible
Weight Gross (lbs) 12.79
Includes 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys

International destinations. AK, HI, and U.S. territories and APO addresses will incur standard rated shipping fees. For International destinations standard shipping rates will apply.

Weight 30 lbs
