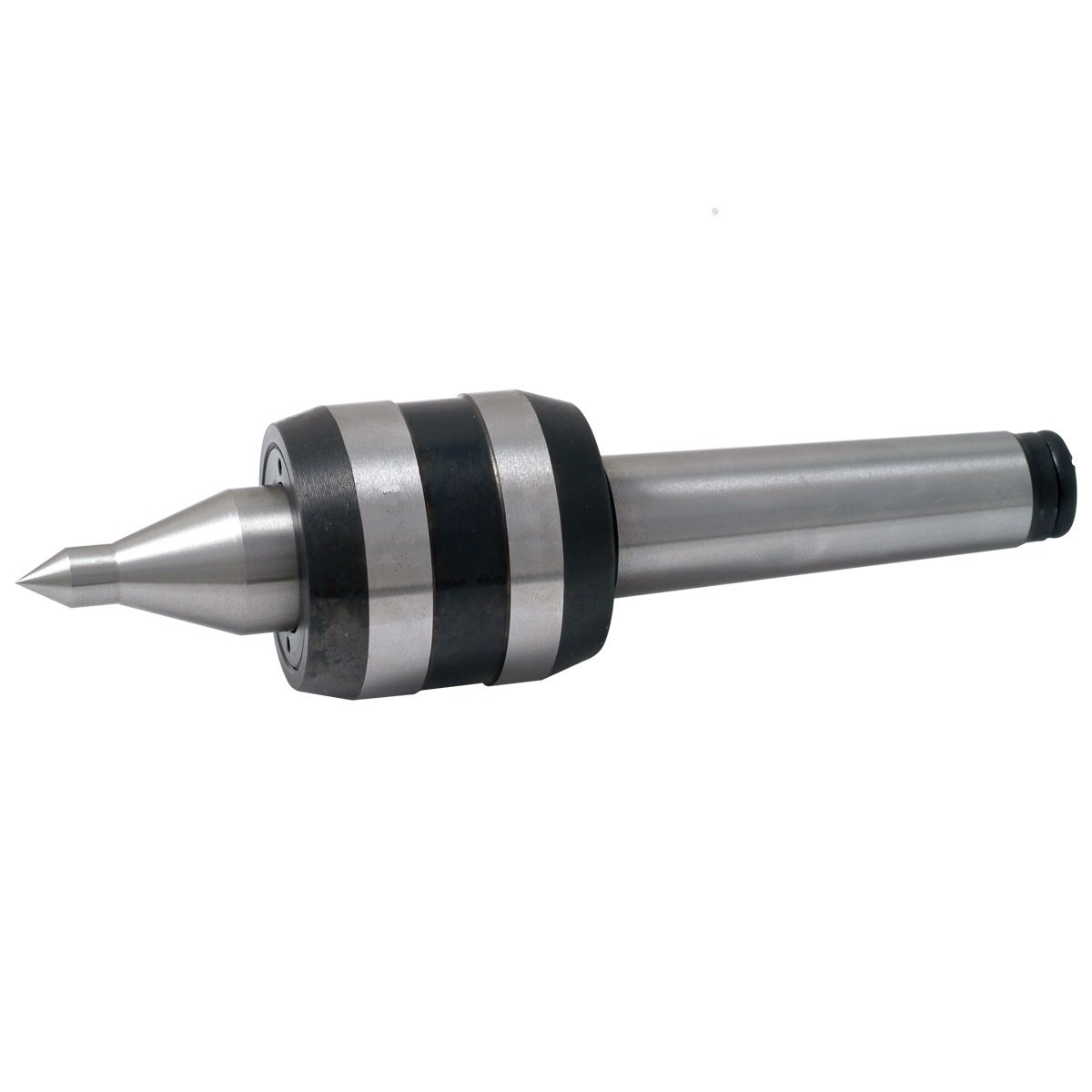

MT4 HIGH SPEED LIVE CENTER B-TYPE (3900-5048)

MT4 HIGH SPEED LIVE CENTER B-TYPE (3900-5048) (SKU: 3900-5048)

MT4 B-Type High Speed Live Center

• Has an included 60° angle
• Made of precision ground hardened tool steel
• Two specially designed high-quality bearings
• Bearings are completely protected from the ingress of coolant, dirt or swarf
• Spindle is heat treated to HRC 60
• TIR is less than or equal to .0002″
• Maximum RPM is 5,000
• Load rate is 880 lbs
• Nose length is 2.00″
• Overall length is 9″

Specifications

• MT4 B-Type High Speed Live Center
• Has an included 60° angle.
• Made of precision ground hardened tool steel.
• Two specially designed high-quality bearings.
• Bearings are completely protected from the ingress of coolant, dirt or swarf.
• Spindle is heat treated to HRC 60.
• TIR is <= .0002".
• Maximum RPM is 5,000.
• Load rate is 880 lbs.
• Nose length is 2.00″.
• Overall length is 9″.
• Weight: 4.6
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
