MT5 LIVE CENTER WITH REVOLVING BODY (3900-6105)

MT5 LIVE CENTER WITH REVOLVING BODY (3900-6105) (SKU: 3900-6105)

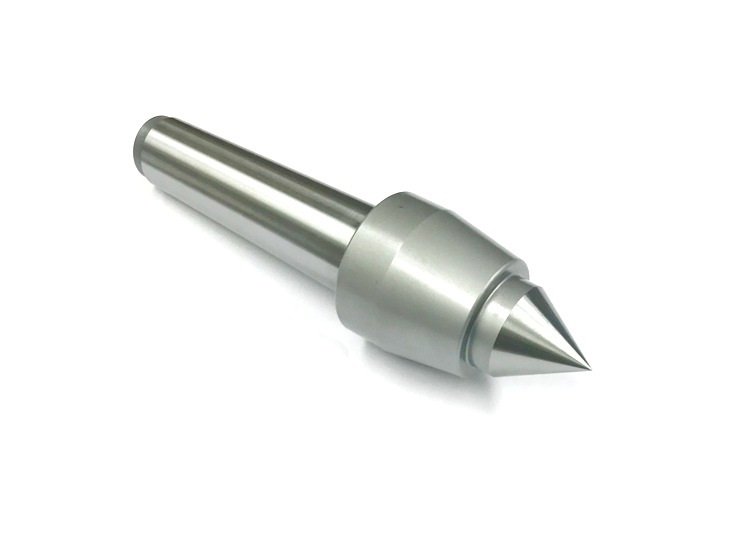

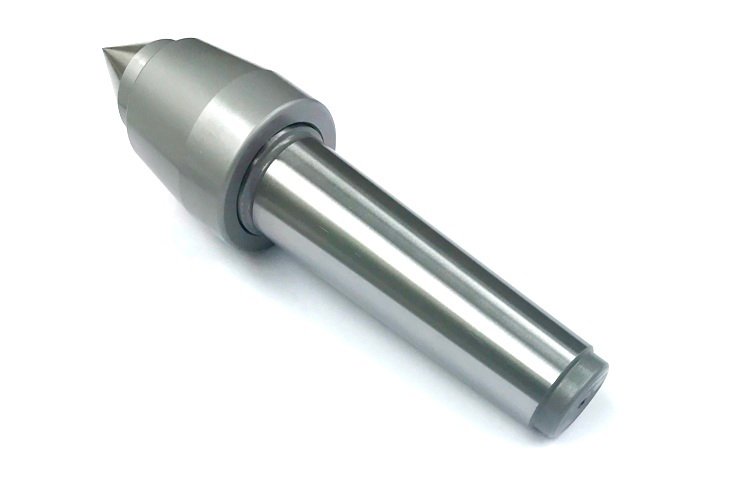

MT5 Live Center with Revolving Body

• The revolving body turns instead of the head
• Deep groove ball bearings
• Best for medium to high speed, light load applications
• The head is made of alloy steel and hardened to HRC 58
• 62
• The live center is sealed to keep it dustproof
• Concentricity is within .0002″
• Radial load is 1,100 lbs
• Maximum RPM is 2,000

Specifications

• MT5 Live Center with Revolving Body
• The revolving body turns instead of the head.
• Deep groove ball bearings.
• Best for medium to high speed, light load applications.
• The head is made of alloy steel and hardened to HRC 58~62.
• The live center is sealed to keep it dustproof.
• Concentricity is within .0002″.
• Radial load is 1,100 lbs.
• Maximum RPM is 2,000.
• Weight: 6.9
• Dimensions: L 4, W 4, H 11

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
