MT5 MEDIUM DUTY LIVE CENTER (3900-5005)

MT5 MEDIUM DUTY LIVE CENTER (3900-5005) (SKU: 3900-5005)

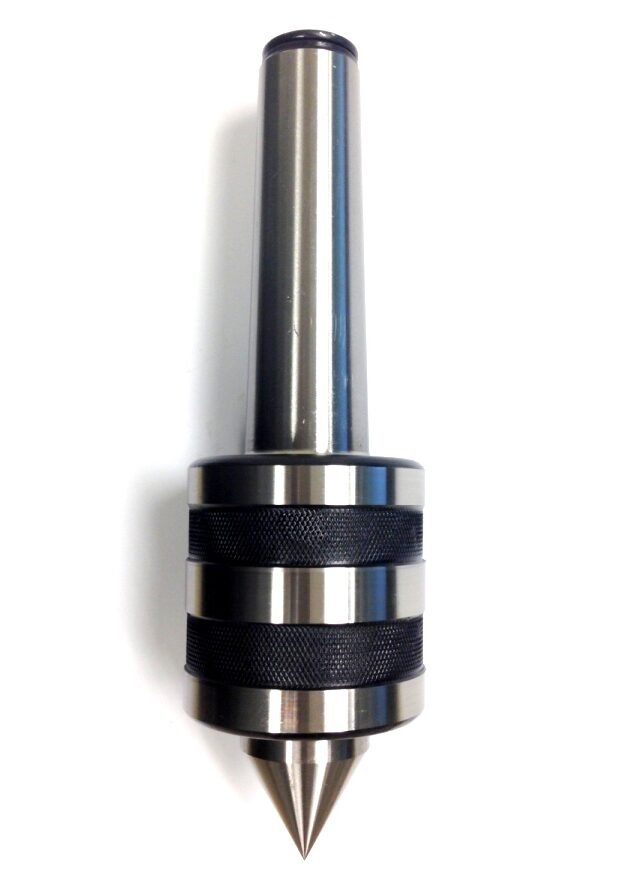

MT5 Medium Duty Live Center

• Central spindle is made of hardened alloy steel and ground for high accuracy
• Precision high quality bearings with a combination of ball bearings and thrust bearings
• Dustproof seal on the front end
• Accuracy load of .0006″
• Radial Load is 6,300N / 1,417.5 lbf
• Maximum RPM’s is 2,000

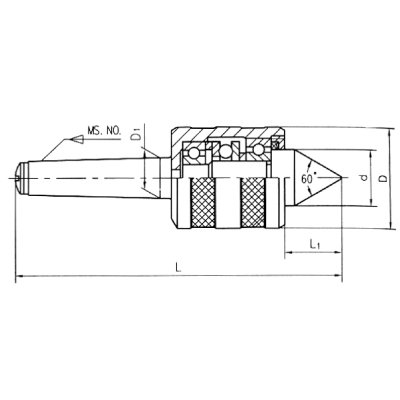

• d is 1.77
• D is 3.0
• D1 is 1.748
• L1 is 1.77
• Overall length is 10

Specifications

• MT5 Medium Duty Live Center
• Central spindle is made of hardened alloy steel and ground for high accuracy.
• Precision high quality bearings with a combination of ball bearings and thrust bearings. ~
• Dustproof seal on the front end.
• Accuracy load of .0006″.
• Radial Load is 6,300N / 1,417.5 lbf
• Maximum RPM’s is 2,500.
• d is 1.77.
• D is 3.0.
• D1 is 1.748
• L1 is 1.77.
• Overall length is 10.
• Weight: 8.1
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
