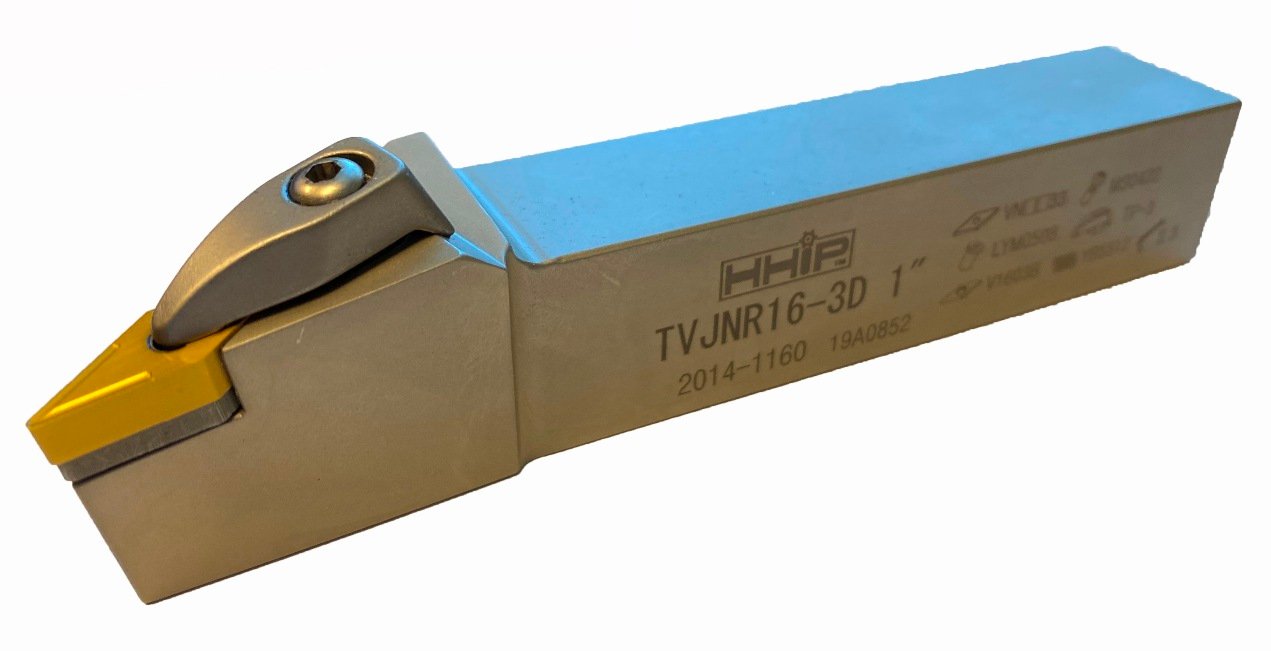

MVJNR 16-3D TURNING And PROFILING TOOL HOLDER-NEW RIGID CLAMP DESIGN

MVJNR 16-3D Turning & Profiling Tool Holder – New Rigid Clamp Design ( (2014-1160)
Right hand.
3 Degree lead angle for turning and profiling.
Zero degree relief.
Use with VNMA OR VNMG inserts.
Shim is #2100-1602.
Shim screw is #2100-4300.
Clamp is #2100-2903.
Clamp screw is #2100-4350.
Spring is #2100-4380.

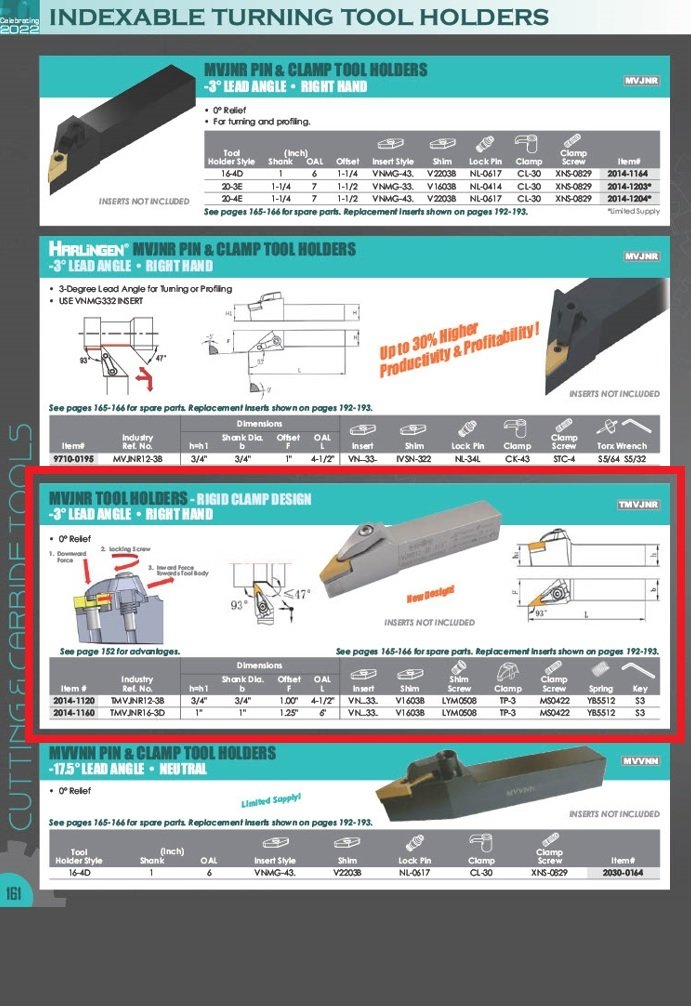

Please see chart picture for sizing information.

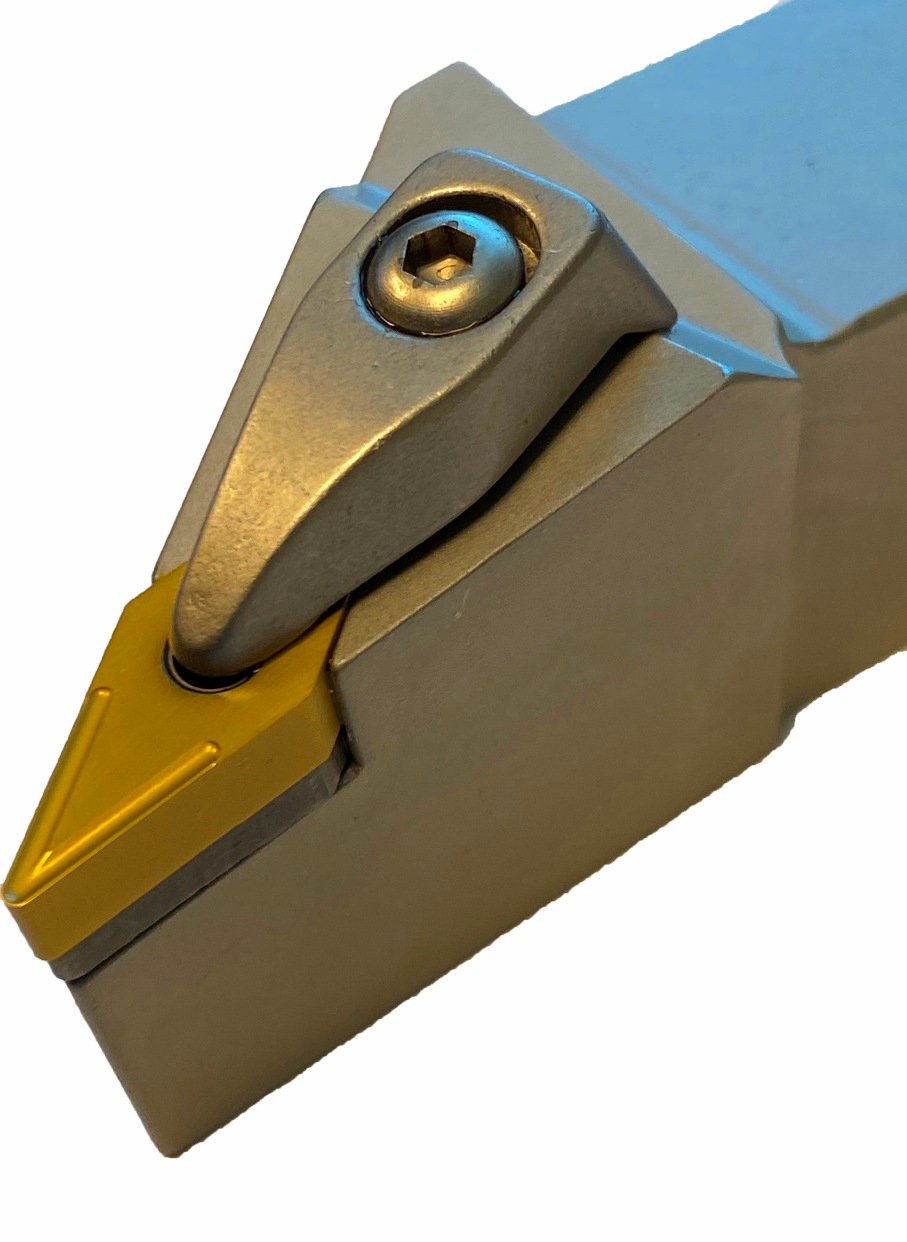

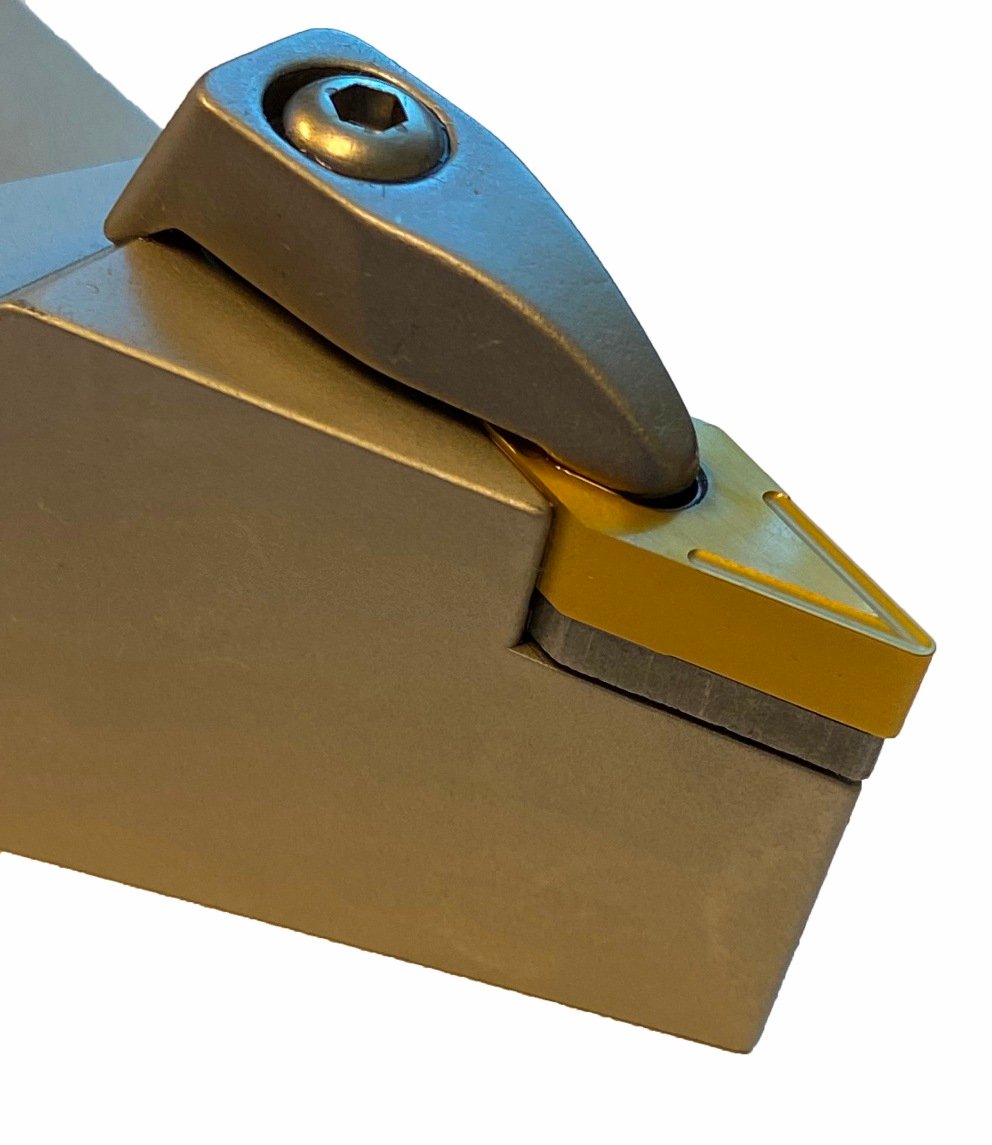

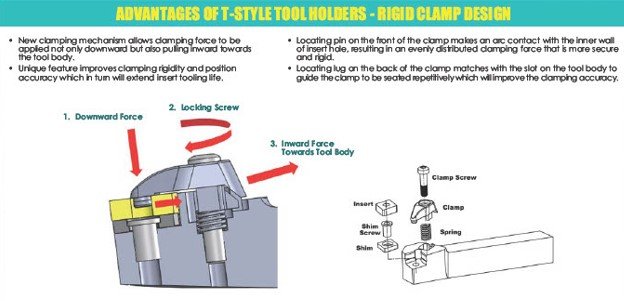

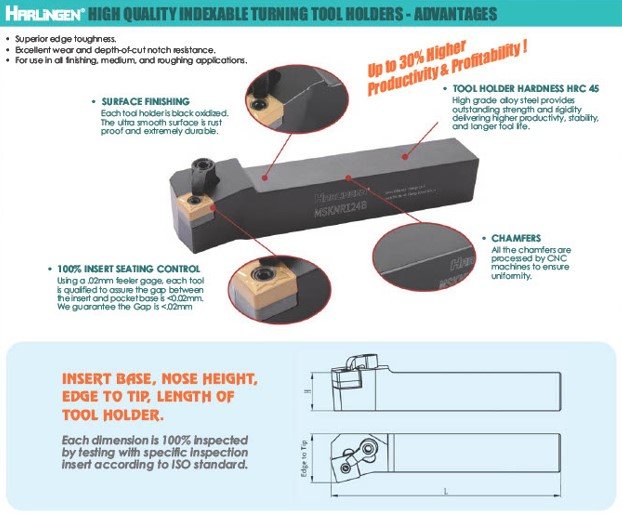

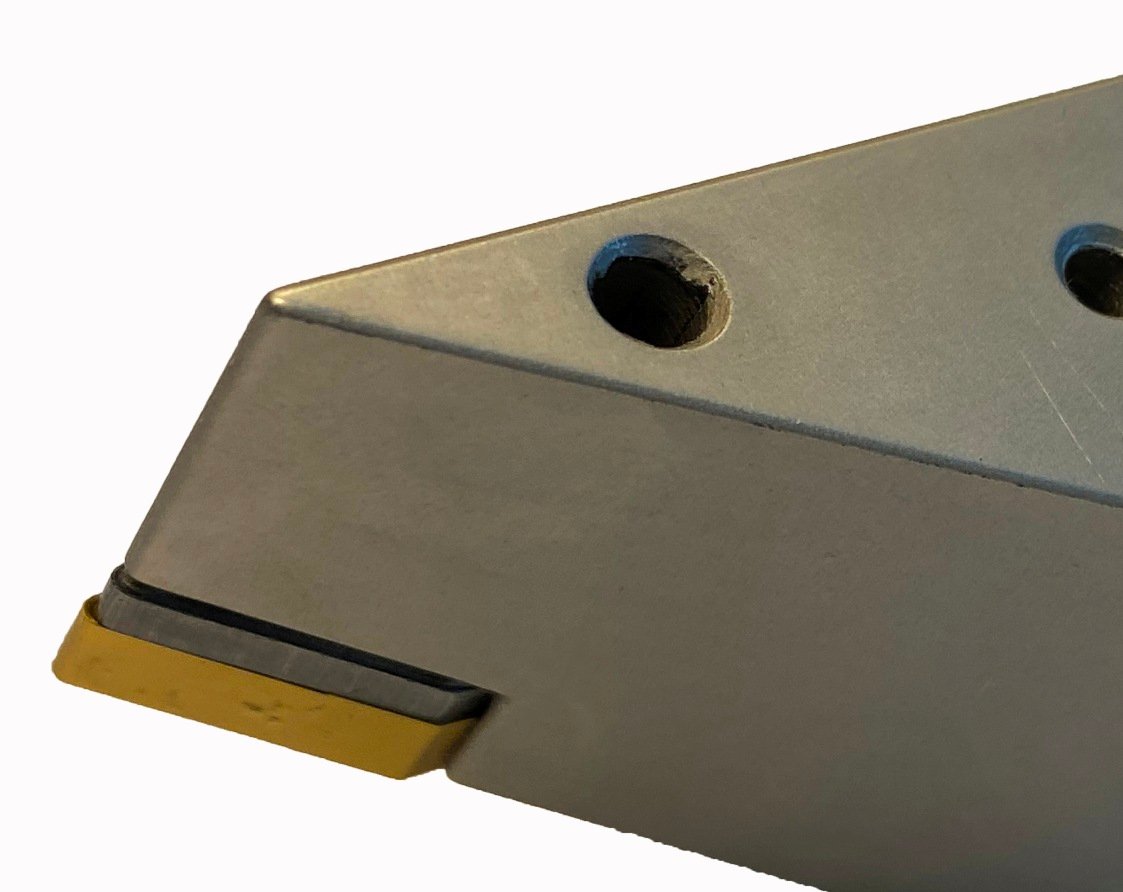

New rigid style top & hole clamping design provides increased stability & security for productive turning of large components and heavy machining.

MVJNR 16-3D Turning Tool Holder: The Ultimate Guide

The MVJNR 16-3D turning tool holder is a pivotal component in precision machining, renowned for its compatibility with 35° negative rhombic inserts and its robust design tailored for rigorous turning operations.

Key Features and Specifications

• Design and Compatibility: The MVJNR 16-3D is engineered to accommodate VNMG 332 inserts, facilitating efficient turning and profiling tasks.
• Dimensions:
  • Shank Width (B): 1.000 inch
  • Shank Height (H): 1.000 inch
  • Overall Length (L): 6.000 inches
  • Head Length (LH): 1.681 inches
  • Functional Width (WF): 1.250 inches
  • Functional Height (HF): 1.000 inch
• Cutting Parameters:
  • Cutting Edge Angle (KAPR): 93°
  • Rake Angles:
    • Radial (GAMF): -27.33°
    • Orthogonal (GAMO): -4.00°
    • Axial (GAMP): -12.78°

• • Maximum Cutting Depth (CDX): 0.493 inch
• Insert Clamping System: Employs a multi-clamp mechanism, ensuring enhanced stability and security during machining operations.
• Coolant Supply: This model does not feature through-coolant capabilities.

Advantages of the MVJNR 16-3D

• Precision and Stability: The tool holder’s design ensures precise insert positioning, resulting in superior surface finishes and dimensional accuracy.
• Durability: Constructed from high-quality materials, the MVJNR 16-3D is built to withstand the demands of heavy-duty machining.
• Versatility: Compatible with a range of VNxx 33x inserts, it caters to various turning and profiling applications.

Applications

The MVJNR 16-3D is ideal for:

• General Turning: Suitable for a broad spectrum of turning operations, delivering consistent performance across different materials.
• Profiling: Its design facilitates intricate profiling tasks, ensuring accuracy and repeatability.

Personal Experience with STU-SHOP TOOL USA’s MVJNR 16-3D

In my professional experience, STU-SHOP TOOL USA stands out as a premier provider of the MVJNR 16-3D tool holder. Their commitment to quality is evident in the durability and performance of their products. Each tool holder is rigorously tested and manufactured in compliance with ISO standards, ensuring reliability and consistency in machining operations. Additionally, their competitive pricing and comprehensive warranty make them a preferred choice for tooling solutions.

Conclusion

The MVJNR 16-3D turning tool holder is an indispensable asset for machinists seeking precision, durability, and versatility. With providers like STU-SHOP TOOL USA offering top-tier, ISO-compliant products, investing in this tool holder is a prudent decision for enhancing machining efficiency and achieving superior results.
