SNMG-433-EM COATED CARBIDE INSERT (6049-0433)

SNMG-433-EM COATED CARBIDE INSERT (6049-0433) (SKU: 6049-0433)

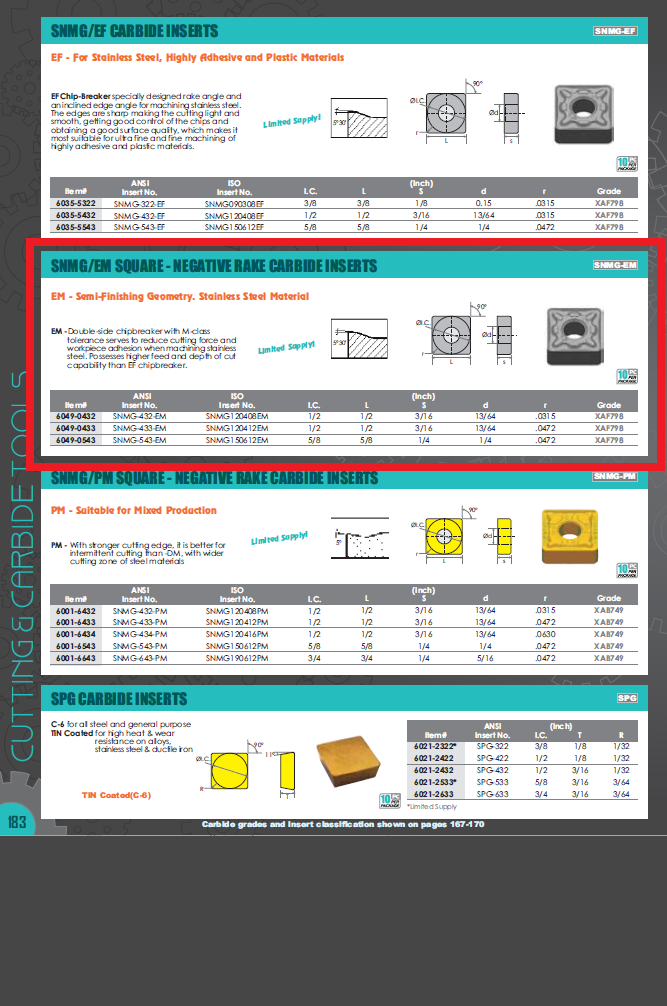

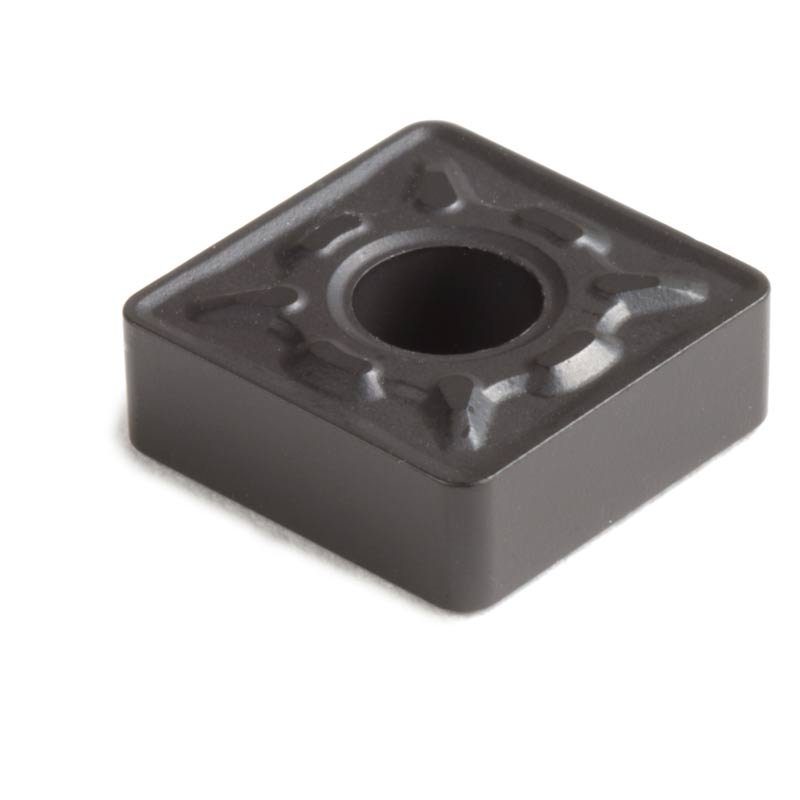

SNMG-433-EM Coated Carbide Insert

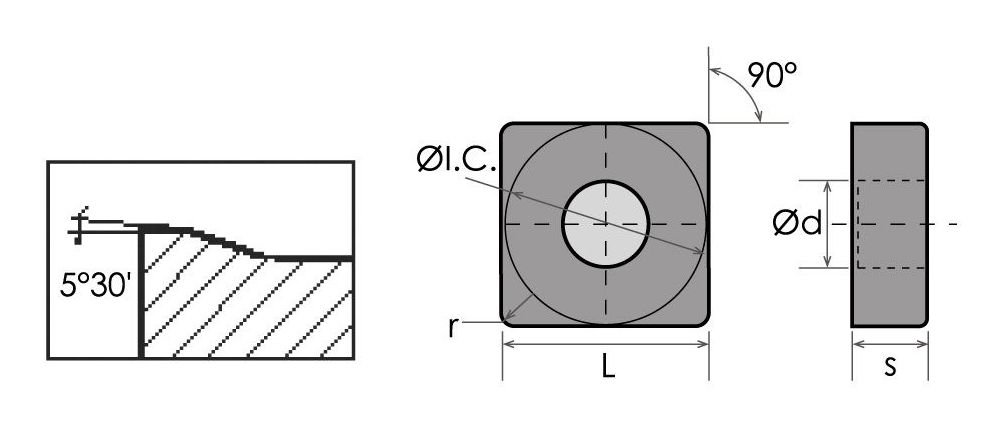

• I.C. is 1/2″
• L is 1/2″
• S is 3/16″
• d is 13/64″
• r is .0472″
• ISO insert number is SNMG120412EM
• Double-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel
• Possesses higher feed and depth of cut capability
• Grade XAF798 is a combination of 2-4 um nc-TiAIN coating and ultra-fine carbide substrate of high strength and toughness
• It is suitable for milling from light to medium load and bore machining of all kinds of materials, turning of stainless steel from finishing to semi-finishing and roughing turning of high-temperature alloys

Specifications

• SNMG-433-EM Coated Carbide Insert
• I.C. is 1/2″.
• L is 1/2″.
• S is 3/16″.
• d is 13/64″.
• r is .0472″.
• ISO insert number is SNMG120412EM.
• Double-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel.
• Possesses higher feed and depth of cut capability.
• Grade XAF798 is a combination of 2-4 um nc-TiAIN coating and ultra-fine carbide substrate of high strength and toughness.
• It is suitable for milling from light to medium load and bore machining of all kinds of materials, turning of stainless steel from finishing to semi-finishing and roughing turning of high-temperature alloys.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
