TNMG-433-DF COATED CARBIDE INSERT (6001-9433)

TNMG-433-DF COATED CARBIDE INSERT (6001-9433) (SKU: 6001-9433)

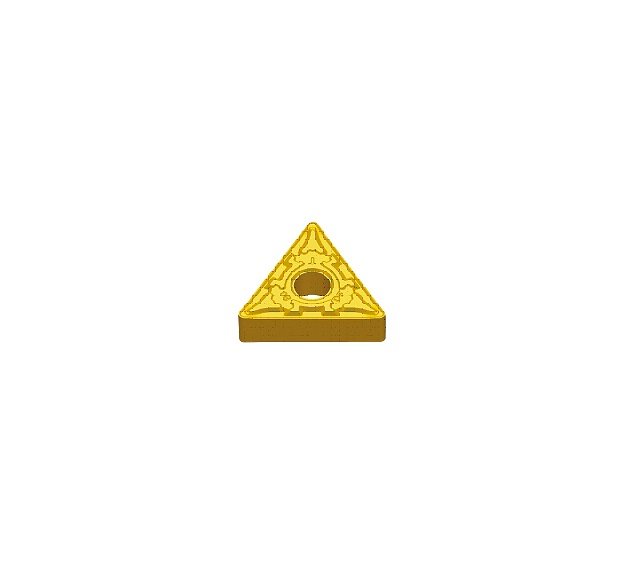

TNMG-433-DF Triangle Negative Rake Insert

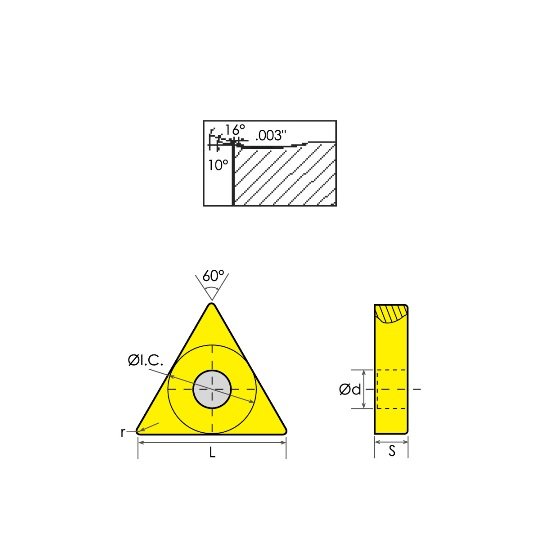

• I.C. is 1/2″
• L is 7/8″
• S is 3/16″
• 13/64″
• r is .0472″
• ISO Insert number is TNMG220412DF
• Grade XAB849 is substrate with excellent wear-resistance, in combination with MT-TiCN and a thick layer of Al2O3TiN coating
• It is an Ideal grade for the finishing steel, cast steel and stainless steel under high speed and dry machining

Specifications

• TNMG-433-DF Negative Rake Coated Insert
• I.C. is 1/2″.
• L is 7/8″.
• S is 3/16″.
• d is 13/64″.
• r is .0472″.
• ISO Insert number is TNMG220412DF.
• Grade XAB849 is substrate with excellent wear-resistance, in combination with MT-TiCN and a thick layer of Al2O3TiN coating.
• It is an Ideal grade for the finishing steel, cast steel and stainless steel under high speed and dry machining.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
