TNMG-434 COATED CARBIDE INSERT (6002-3434)

TNMG-434 COATED CARBIDE INSERT (6002-3434) (SKU: 6002-3434)

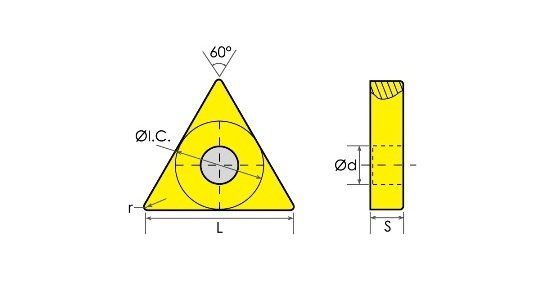

TNMG-434 Triangle Negative Rake Insert

• I.C. is 1/2″
• L is 7/8″
• S is 3/16″
• d is 13/64″
• r is .0630.”
• ISO Insert No. is TNMG220416
• Grade XAB749 offers a cutting edge with special strength and toughness, in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating
• It is a suitable grade for a wide range of applications
• It is good for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel
• 0 degree relief angle and a molded chipbreaker

Specifications

• TNMG-434 Triangle Negative Rake Coated Carbide Insert
• I.C. is 1/2″.
• L is 7/8″.
• S is 3/16″.
• d is 13/64″.
• r is .0630.”
• ISO Insert No. is TNMG220416.
• Grade XAB749 offers a cutting edge with special strength and toughness, in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating.
• It is a suitable grade for a wide range of applications.
• It is good for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
• 0 degree relief angle and a molded chipbreaker.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
