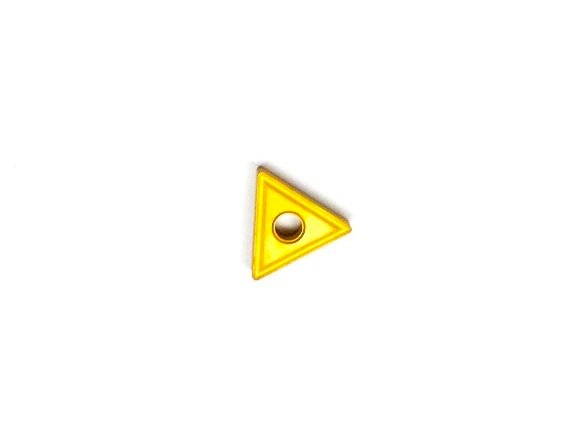

TNMG-543 COATED CARBIDE INSERT (6002-2543)

TNMG-543 COATED CARBIDE INSERT (6002-2543) (SKU: 6002-2543)

TNMG-543 Triangle Negative Rake Insert

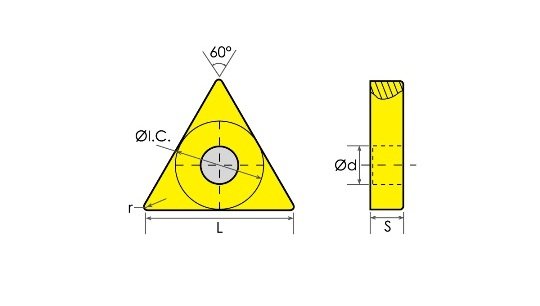

• I.C. is 5/8″
• L is 1.08″
• S is 1/4″
• d is 1/4″
• r is .0472.”
• ISO Insert No. is TNMG270612
• Grade XAB749 offers a cutting edge with special strength and toughness, in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating
• It is a suitable grade for a wide range of applications
• It is good for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel
• 0 degree relief angle and a molded chipbreaker

Specifications

• TNMG-543 Triangle Negative Rake Coated Carbide Insert
• I.C. is 5/8″.
• L is 1.08″.
• S is 1/4″.
• d is 1/4″.
• r is .0472.”
• ISO Insert No. is TNMG270612.
• Grade XAB749 offers a cutting edge with special strength and toughness, in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating.
• It is a suitable grade for a wide range of applications.
• It is good for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
• 0 degree relief angle and a molded chipbreaker.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6
