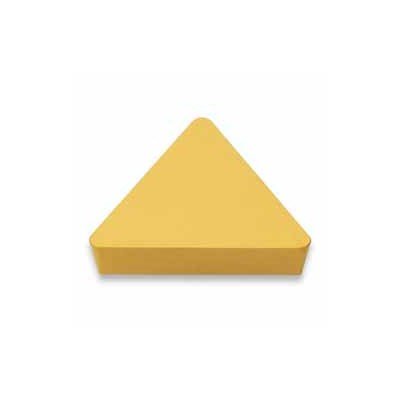

TPGN-332 COATED CARBIDE INSERT (6004-9332)

TPGN-332 COATED CARBIDE INSERT (6004-9332) (SKU: 6004-9332)

TPGN-332 TRIANGLE INSERT WITH O HOLE-XAB849 | XAB849: Substrate with excellent wear-resistance, in combination with MT-TiCN, thick layer Al2O3TiN coating. It is an ideal grade for the finishing steel, cast steel and stainless steel under high speed and dry machining.

Specifications

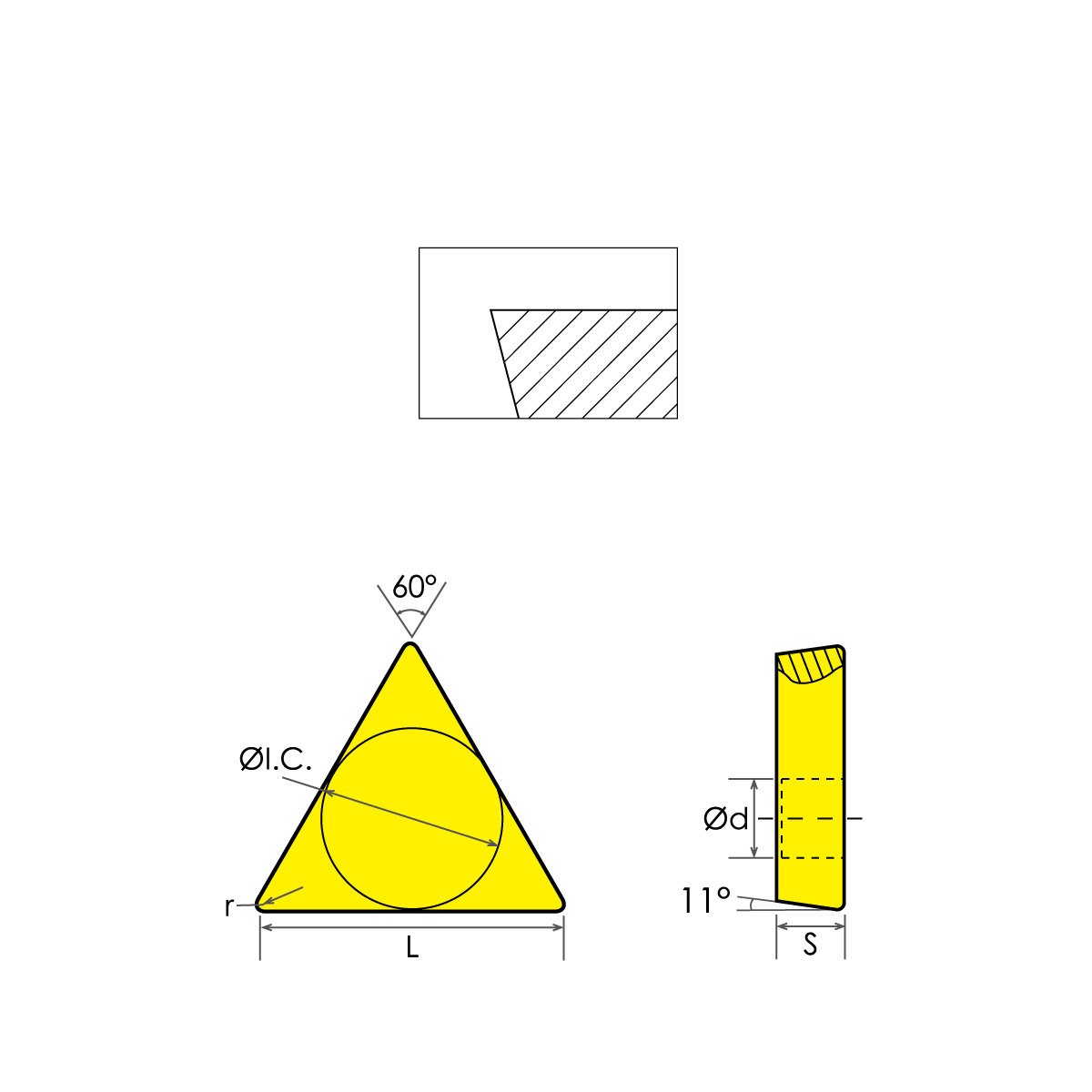

• TPGN-332 Coated Carbide Insert with No Hole
• I.C. is 3/8″.
• L is 15/32″.
• S is 5/32″.
• r is .0315″.
• ISO Insert number is TPGN16408.
• 11 degree relief angle.
• Single sided insert with no chipbreaker.
• Grade XAB849 is substrate with excellent wear-resistance, in combination with MT-TiCN and a thick layer of Al2O3TiN coating.
• It is an Ideal grade for the finishing steel, cast steel and stainless steel under high speed and dry machining.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
