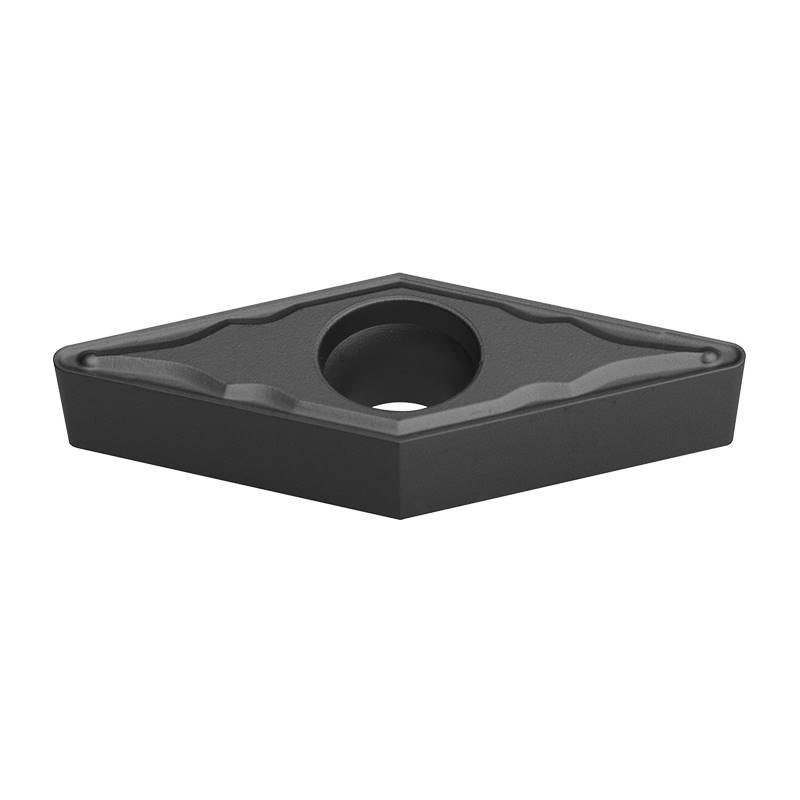

VBMT-221-EM nc-TiAIN COATED CARBIDE INSERT (6059-0221)

VBMT-221-EM nc-TiAIN COATED CARBIDE INSERT (6059-0221) (SKU: 6059-0221)

Semi-finishing geometry recommended for use with 300 Series stainless steels

• Double-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel. Possesses higher feed and depth of cut capability than EF chipbreaker
• ISO insert number is VBMT110304EM
• I.C. is .017
• L is .017
• S is 1/8
• d is 0.11
• r is .0157
• For turning and milling carbon and alloy steels, tool steel and stainless steel
• Provides a longer life than uncoated grades
• Works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron
• Unique grade material with near perfect wear resistance and high temperature resistance
• The nc-TiAIN coating, ultrafine grain substrate , and unique surface treatment make this grade suitable for high precision cutting of “difficult to machine” materials, such as stainless steel, etc

Specifications

• VBMT-221-EM nc-TiAIN 35 Degree Positive Rake Coated Insert

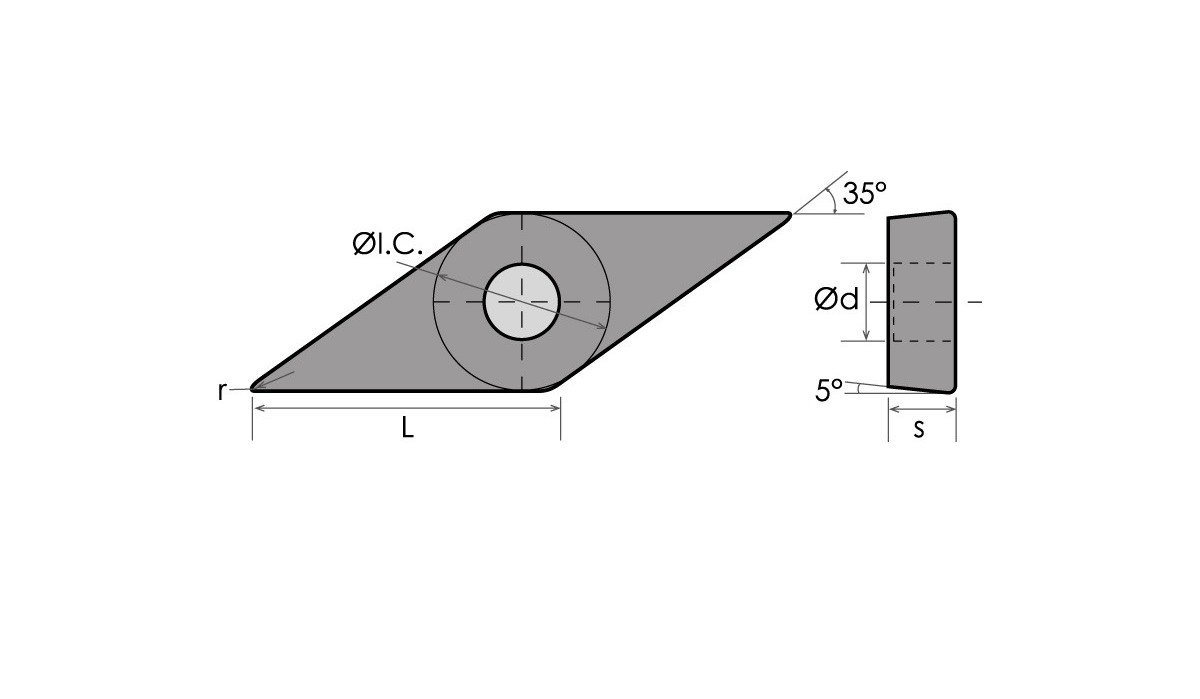

• I.C. is .017″.
• L is .017″.
• S is 1/8″.
• d is 0.11″.
• r is .0157″.
• ISO insert number is VBMT110304EM.
• Semi-finishing geometry recommended for use with 300 Series stainless steels.
• For turning and milling carbon and alloy steels, tool steel and stainless steel.
• Provides a longer life than uncoated grades.
• Grade XAF795 works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron.
• The nc-TiAIN coating, ultrafine grain substrate , and unique surface treatment make this grade suitable for high precision cutting of “difficult to machine” materials, such as stainless steel, etc.
• Double-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel.
• Possesses higher feed and depth of cut capability than EF chipbreaker.
• Weight: 0.01
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
