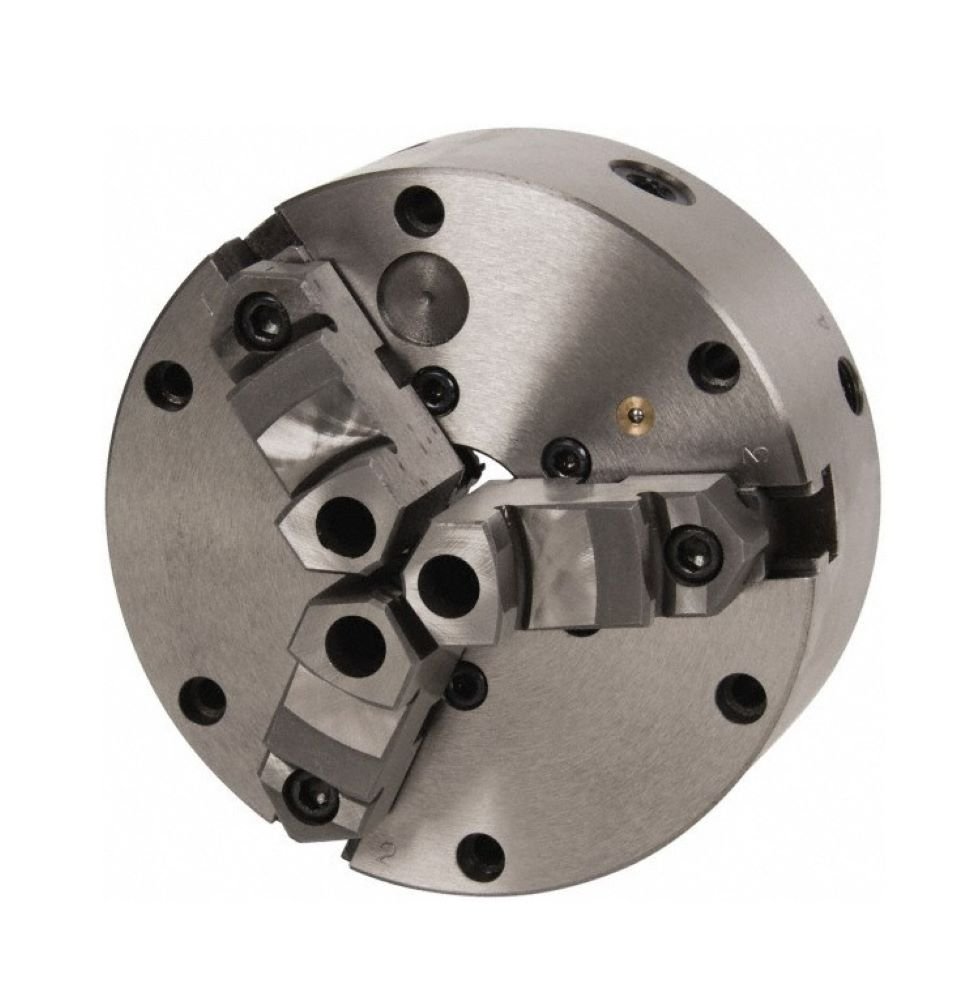

10″ Zero-Set 3-Jaw Plain Back Lathe Chuck for Large Repeat Parts 3900-4580

Adjustable Concentricity for Larger Repeat Parts and Industrial Repair Work

The 3900-4580 10″ Zero-Set 3-Jaw Plain Back Lathe Chuck gives production machinists and repair shops the capacity to hold larger round components while retaining the speed of a self-centering scroll chuck and the ability to correct measured runout.

Opposing fine-adjustment screws allow the chuck body to be shifted relative to a compatible backplate or spindle adapter. This gives the operator a controlled method for dialing in an existing diameter, bore or reference surface before performing a critical second operation.

With 0.0005″ repeatability on duplicate parts, a 2.752″ center through hole and a maximum rated speed of 2,700 RPM, this 10″ Zero-Set chuck is positioned for large-component repeat turning, industrial maintenance and repair applications where an ordinary scroll chuck may not provide enough adjustment control.

Protect valuable parts from avoidable rechucking error—measure the actual setup, correct the runout and machine with greater confidence.

Why Choose a 10″ Zero-Set Chuck?

A standard three-jaw chuck is fast, but its final running condition depends on the scroll, jaws, mounting interface, workpiece diameter and overall condition of the lathe. When a large component is removed, repaired or turned around for a second operation, it may no longer run concentrically with its previously machined features.

The Zero-Set system adds an adjustable mounting stage to the three-jaw scroll mechanism. The jaws continue to move together for fast workpiece loading, while the opposing adjustment screws permit small corrections to the position of the complete chuck assembly.

• Large 10″ chuck body: Intended for workpieces that require more chuck diameter and jaw support than smaller models provide.
• Three-jaw loading speed: All jaws move simultaneously through the scroll for efficient loading of round and hexagonal parts.
• Fine runout correction: Opposing screws let the machinist adjust the indicated position after the part is clamped.
• 0.0005″ duplicate-part repeatability: Supports repeat production under properly controlled clamping conditions.
• Two-piece reversible jaws: Provides greater workholding flexibility for internal and external gripping configurations.

Built Around Large-Part Rechucking Problems

Large components are often expensive before the second operation even begins. The workpiece may already include material cost, rough turning, welding, heat treatment or hours of previous machining. Losing concentricity during rechucking can turn that accumulated value into scrap.

The 3900-4580 is particularly useful when machining:

• Large shafts and shaft-repair components.
• Industrial bushings and sleeves.
• Hubs, pulleys and coupling components.
• Pump, gearbox and power-transmission parts.
• Automotive, agricultural and heavy-equipment repair components.
• Large flanges requiring concentric faces, bores or outside diameters.
• Rollers and cylindrical maintenance parts.
• Duplicate components produced in small or medium batches.
• Parts that must be turned around for a concentric second operation.

The exact gripping capacity is not stated in the supplied specifications. Verify workpiece diameter, jaw position, jaw engagement and machine clearance before ordering.

Opposing Screws for Controlled Run-True Adjustment

The Zero-Set adjustment screws are arranged in opposing directions around the chuck body. After the workpiece is clamped and measured with an indicator, the machinist can make small corrections by loosening one side and advancing the opposite side.

This process repositions the chuck relative to its mounting adapter. It does not independently move each jaw.

The adjustment system provides an important combination:

• Faster loading than a four-jaw independent chuck.
• More correction capability than an ordinary three-jaw scroll chuck.
• A repeatable reference for families of parts with the same gripping diameter.
• Fine control during second-operation and repair setups.

Two-Piece Reversible Jaw Construction

The chuck uses three master jaws with reversible two-piece top-jaw assemblies. This configuration supports different internal and external gripping arrangements while helping the operator adapt the chuck to a wider range of workpiece geometries.

The jaw teeth and guideways are hardened and fully ground on both sides. Precisely machined guideways help maintain controlled jaw travel, while the two-piece construction is designed to provide increased gripping capability with reduced unwanted jaw distortion.

Forged, Hardened and Ground Scroll Components

The working components responsible for jaw movement and clamping force are manufactured for repeated machine-shop use:

• Drop-forged alloy-steel scroll plate: Provides a strong core for synchronized jaw travel.
• Case-hardened scroll surfaces: Improve resistance to wear during repeated operation.
• Ground thread flanks: Both sides of the scroll threads are ground for controlled engagement.
• Hardened jaw teeth: Designed to withstand repeated engagement with the scroll.
• Fully ground jaw guideways: Support smooth, controlled movement within the chuck body.
• Hardened and ground pinions: Transfer chuck-key input to the scroll mechanism.
• Precisely machined bearing surfaces: Promote alignment and consistent mechanical operation.

Substantial Semi-Steel Body

The chuck body is manufactured from high-quality semi-steel cast iron. Its 10″ diameter and 69 lb shipping weight provide a substantial workholding platform for larger components.

That mass also makes machine compatibility essential. The lathe spindle, bearings, drive, backplate and lifting method must all be suitable for the installed assembly and intended workpiece.

Do not select a chuck solely because its diameter fits within the machine swing. Confirm spindle-nose capacity, allowable chuck mass, available clearance and safe operating speed with the lathe manufacturer or machine documentation.

2.752″ Center Through Hole

The 2.752″ center hole provides useful clearance through the chuck body for suitable shafts, bar material and long components. Actual through-spindle capacity will be limited by the smallest internal diameter in the complete installation, including the backplate, spindle bore and any internal stops.

The center-hole specification should not be interpreted as the guaranteed maximum bar capacity of the lathe.

Understanding the 0.0005″ Repeatability Specification

The published 0.0005″ repeatability applies to duplicate parts under consistent and properly controlled workholding conditions. It is not a guarantee that every part will automatically run within 0.0005″ after initial clamping.

Achievable results depend on:

• Lathe spindle and bearing condition.
• Accuracy of the machined backplate or adapter.
• Clean mounting surfaces and jaw contact areas.
• Consistent workpiece gripping diameter.
• Roundness and surface finish of the reference diameter.
• Repeatable jaw location on the scroll.
• Consistent chuck-key torque.
• Correct Zero-Set adjustment technique.
• Indicator resolution and holder rigidity.
• Tool, workpiece and machine deflection during cutting.

Final machined tolerance depends on the entire process, not the chuck alone.

Recommended Zero-Set Adjustment Procedure

1. Install the chuck on a correctly fitted plain-back adapter or backplate.
2. Clean the chuck jaws, mounting surfaces and workpiece reference diameter.
3. Clamp the workpiece using adequate jaw engagement and consistent tightening force.
4. Place a dial or test indicator against a qualified reference surface.
5. Rotate the spindle manually to locate the highest indicator reading.
6. Make a small correction with the corresponding opposing adjustment screws.
7. Rotate and measure the setup again.
8. Repeat until the required running condition is achieved.
9. Secure all mounting components and verify runout after final tightening.

Safety: Stop and isolate the machine before touching the chuck or adjustment screws. Rotate the spindle manually during inspection. Remove the chuck key, adjustment wrench and indicator before starting the lathe.

Technical Specifications

What Is Included?

• 10″ three-jaw Zero-Set plain-back lathe chuck
• Three two-piece jaw assemblies with reversible top jaws
• Six M12 mounting screws

Backplate notice: A spindle adapter or backplate is not listed as included. This plain-back chuck must be mounted to a correctly designed and machined adapter for the specific lathe spindle.

Compatibility Checks Before Ordering

• Lathe manufacturer and model.
• Spindle-nose type and size.
• Backplate availability and register dimensions.
• Bolt-circle and M12 mounting compatibility.
• Machine swing and carriage clearance.
• Permitted spindle load and overhung mass.
• Spindle bore and actual bar-passage requirements.
• Typical workpiece diameter, length and weight.
• Required jaw extension and gripping method.
• Maximum safe operating speed for the complete setup.

Maximum RPM Requires a Complete Setup Evaluation

The chuck has a published maximum rating of 2,700 RPM. This is an upper chuck rating, not the recommended speed for every job.

The safe speed may be substantially lower depending on workpiece size, jaw extension, balance, backplate design, spindle rating and machine condition. Large or irregular workpieces can generate significant centrifugal and imbalance forces even at moderate speeds.

10″ Zero-Set or 8.27″ Zero-Set?

Choose the 10″ model when larger workpieces require additional chuck diameter, jaw support or center-hole clearance and the machine is rated for its 69 lb mass.

Choose the 8.27″ model when its capacity is sufficient and lower chuck weight, reduced overhang or additional machine clearance is more important. The best selection is normally the smallest chuck that safely provides the required gripping capacity.

Three-Jaw Zero-Set or Four-Jaw Independent?

Select this three-jaw Zero-Set chuck when repeat loading speed and fine correction of round or hexagonal components are the priority.

Select a four-jaw independent chuck when machining irregular shapes, deliberately offset components or parts that require individual control of every jaw. A four-jaw chuck offers extensive centering flexibility but generally requires more setup time for each part.

Frequently Asked Questions

Can this chuck be adjusted after the workpiece is clamped?

Yes. The opposing Zero-Set screws allow the chuck body to be repositioned relative to its mounting adapter while runout is monitored with an indicator.

Are the jaws independently adjustable?

No. All three jaws move together through the scroll. The Zero-Set screws adjust the chuck body, not the individual jaws.

Does it have eight-piece top jaws?

No. The product uses two-piece jaw assemblies with reversible top jaws. “8 piece top jaws” is a transcription error found in some copied listings.

Does the chuck mount directly to a lathe spindle?

Not in every case. It has a plain back and normally requires a compatible backplate or spindle adapter.

Does the 2.752″ center hole guarantee 2.752″ bar capacity?

No. Actual bar passage is limited by the smallest opening through the chuck, adapter and machine spindle.

Can I operate every setup at 2,700 RPM?

No. Actual safe speed must account for workpiece diameter, weight, balance, jaw extension, spindle rating and mounting conditions.

Protect High-Value Parts During Critical Second Operations

The 3900-4580 10″ Zero-Set Lathe Chuck is designed for shops where a large component cannot simply be replaced after a poor rechucking setup. It combines production-friendly three-jaw operation with the adjustment control needed to reduce measured runout before machining begins.

Add the 3900-4580 to your quote today. Send us your lathe model, spindle-nose designation, current backplate dimensions and typical workpiece size for compatibility assistance.

Request price, availability and mounting support
