10pc CCMT 32.52-SM/CCMT09T308-SL Carbide Turning Inserts SP8125
Upgrade your machining efficiency with the CCMT 21.51-SM / CCMT060204 Carbide Insert from STU-SHOP TOOL USA, featuring grade SP8125 with advanced CVD coating (Multi-TiCN+Al2O3). Designed for exceptional performance, this carbide insert is ideal for semi-finishing operations, offering high precision and reliability in ISO P and M materials.
Exceptional Chip Breaking Performance
SM Chip Breaker: Optimized for smooth chip control and superior semi-finishing results.
Versatile Compatibility suitable for ISO P (steel) and ISO M (stainless steel) materials, ensuring wide application across different machining tasks.
Low Cutting Forces and Positive Rake
The CCMT 21.51-SM carbide inserts are characterized by a positive rake angle that allows for lower cutting forces. This not only extends tool life but also ensures optimal machining conditions, making these inserts ideal for a variety of materials.
Key Features:
Grade SP8125 CVD Coating: Enhanced durability and wear resistance with Multi-TiCN and Al2O3 layers.
SM Chip Breaker: Optimized for smooth chip control and superior semi-finishing results.
Versatile Compatibility: Suitable for ISO P (steel) and ISO M (stainless steel) materials, ensuring wide application across different machining tasks.
Precision Engineering:Manufactured to meet high standards for consistent quality and performance.
Trusted Brand: Proudly offered by STU-SHOP TOOL USA, known for delivering top-tier industrial tools.
Why Choose
CCMT 32.52-SM/CCMT09T308-SL Carbide Inserts?
Whether you’re looking to improve efficiency in your semi-finishing processes or require reliable inserts for your turning operations, the CCMT 32.52-SM/CCMT09T308-SL is your go-to solution. Its advanced coating and chip breaker design ensure longer tool life and reduced downtime, enhancing productivity in demanding environments.
Boost your machining performance with this professional-grade carbide insert from STU-SHOP TOOL USA, engineered for precision and efficiency.
System of Measurement Universal – ANSI, ISO
Clamping Type S – Screw-On
Insert Style C Style – 80° Rhombic

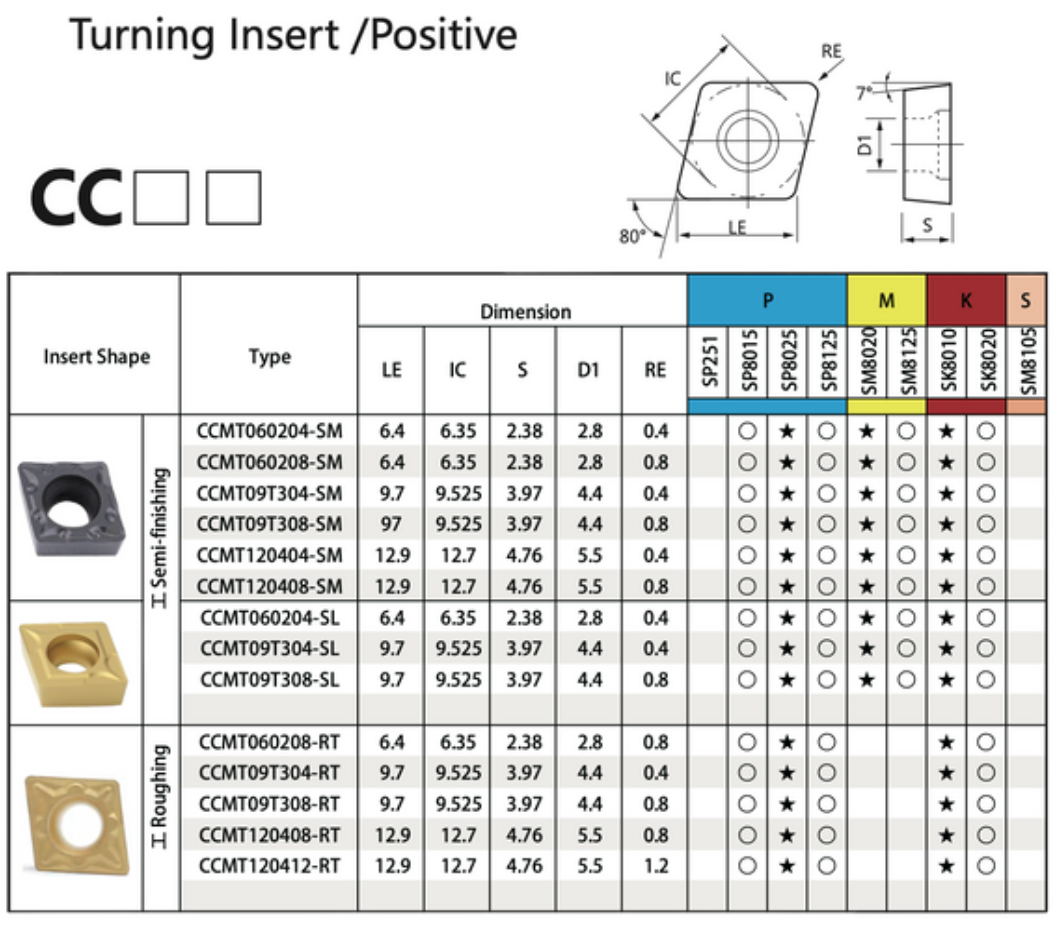

Insert Geometry & Identification
| Feature | ANSI Specification | ISO Specification |
| Insert Designation | CCMT 32.52-SM | CCMT 09T308-SL |
| Shape | Rhombic 80° (C) | Rhombic 80° (C) |
| Clearance Angle | 7° Positive (C) | 7° Positive (C) |
| Tolerance | Class M (M) | Class M (M) |
| Fixing/Chipbreaker | Cylindrical Hole (T) | Cylindrical Hole (T) |
| Cutting Edge Length | 3/8″ (3) | 9.7 mm (09) |
| Thickness | 5/32″ (2.5) | 3.97 mm (T3) |
| Nose Radius | 1/32″ (2) | 0.8 mm (08) |
