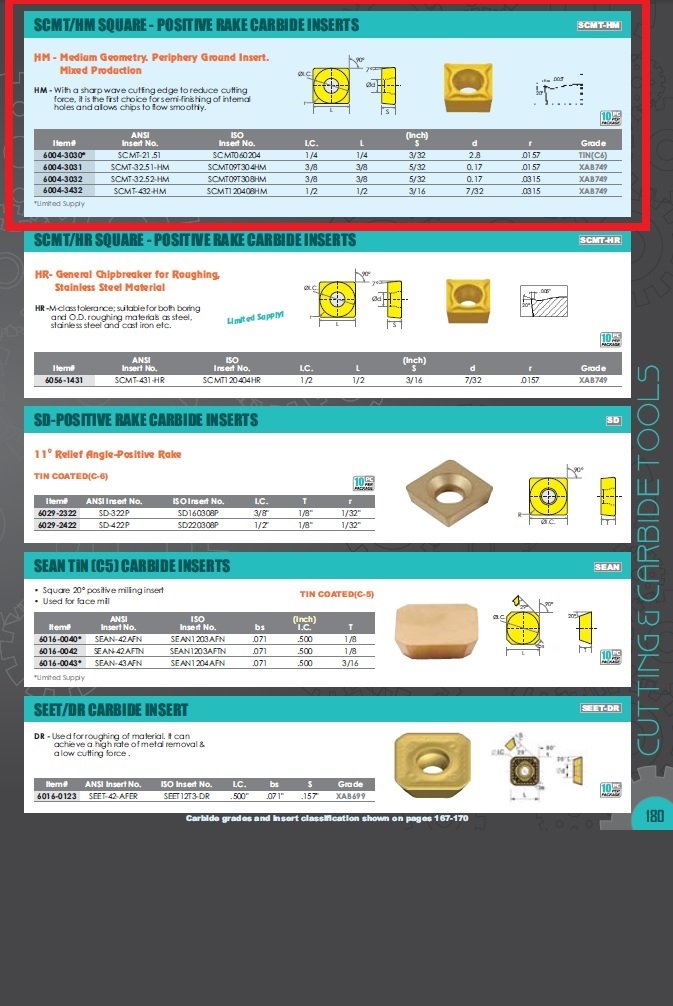

SCMT-32.51-HM COATED CARBIDE INSERT (6004-3031)
SCMT-32.51-HM Coated Carbide Insert

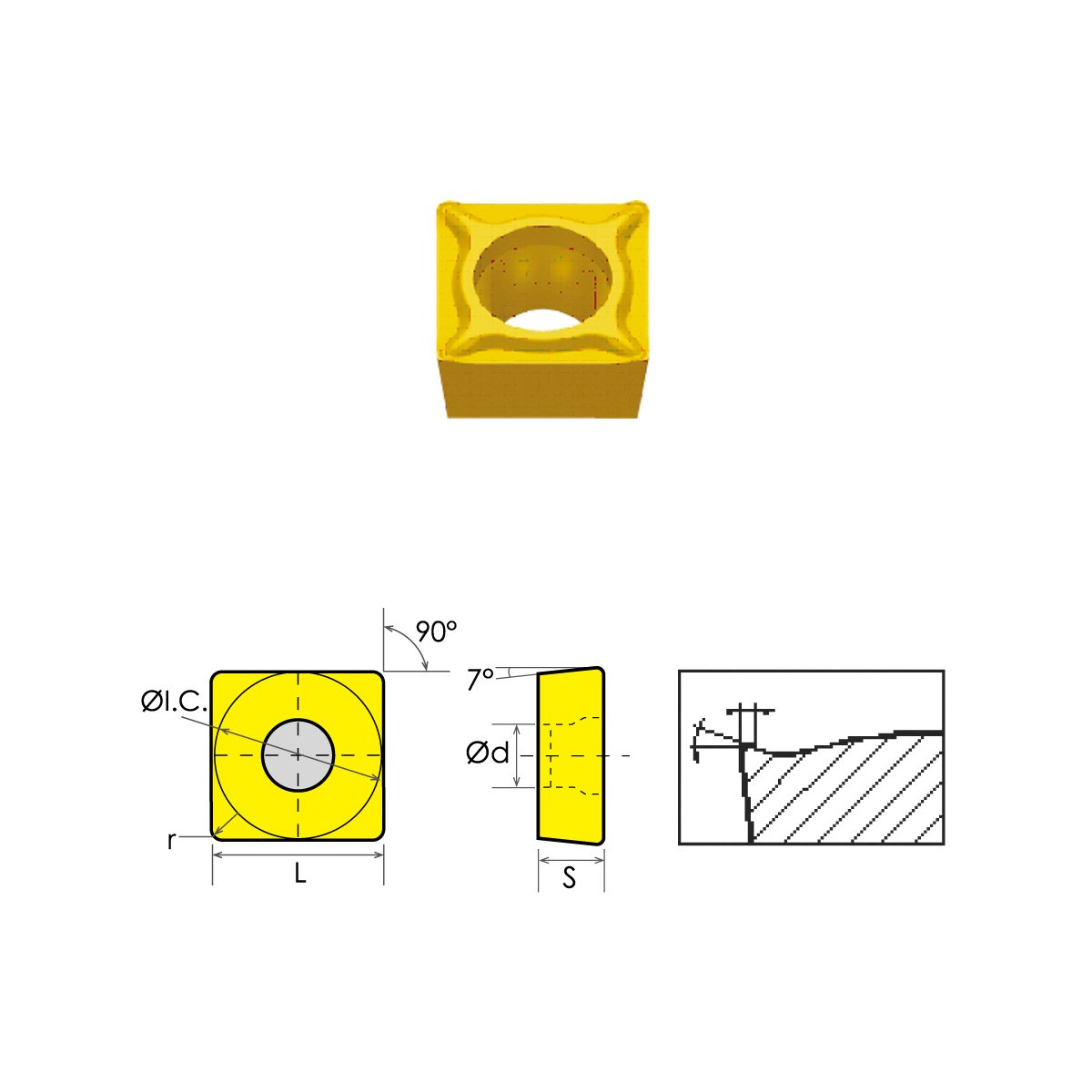

I.C. is 3/8″.
L is 3/8″.
S is 5/32″.
d is 0.17″.
r is 0.157″.
ISO insert number is SCMT09T304HM.
Grade XAB749 has a cutting edge with special strength and toughness in optimal combination with MT-TiCN, thick layer Al2O3TiN coating.
It is a suitable grade for a wide number of applications.
It is good for finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
Has a sharp wave cutting edge to reduce cutting force.
It is the first choice for semi-finishing of internal holes and allows chips to flow smoothly.
