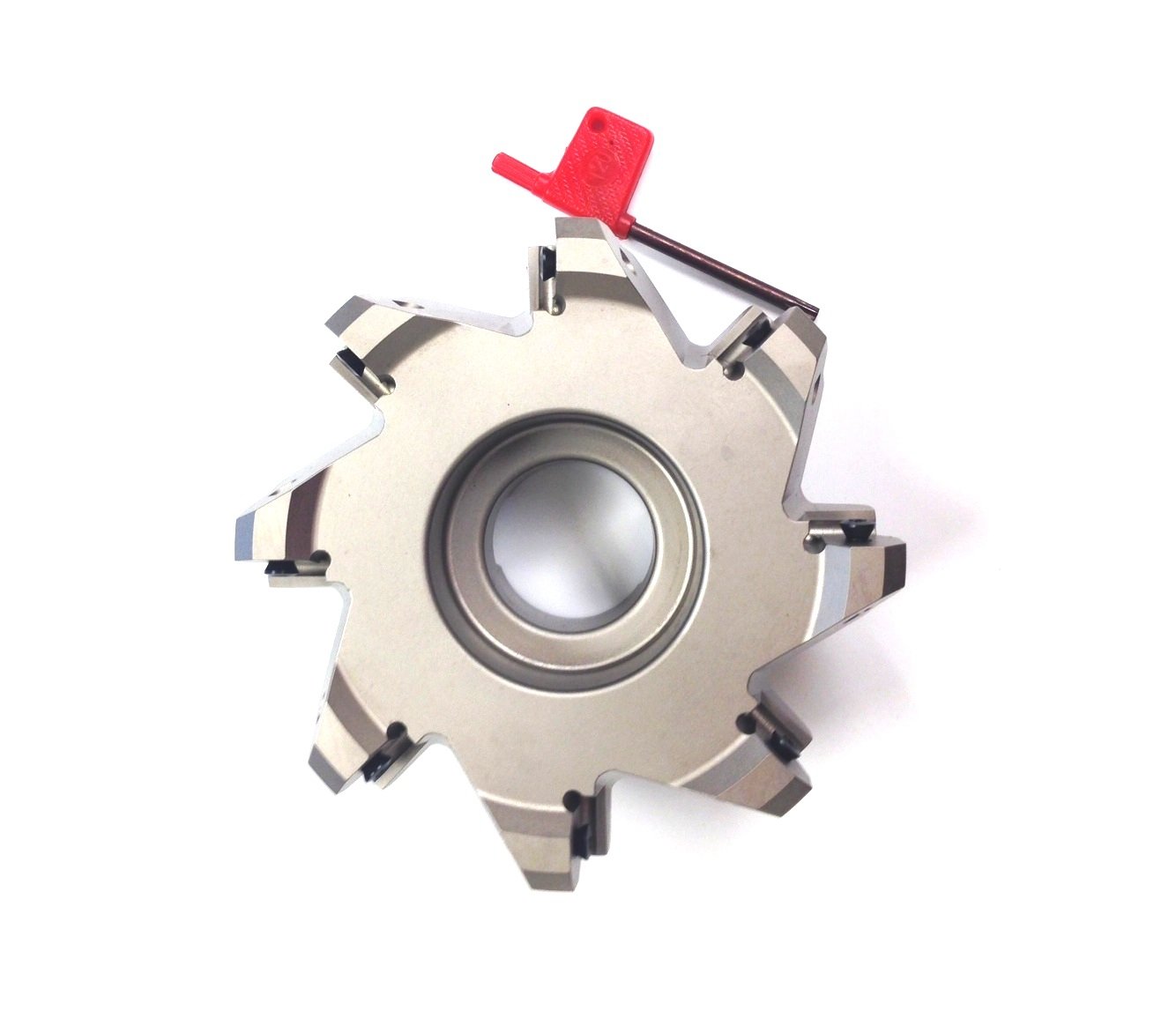

5″ X 1-1/2 BORE 45 DEGREE OCTAGON 8 INSERT INDEXABLE FACE MILL (2068-5000)

5″ X 1-1/2 BORE 45 DEGREE OCTAGON 8 INSERT INDEXABLE FACE MILL (2068-5000) (SKU: 2068-5000)

5″ X 1-1/2 Bore 45 Degree Octagon 8 Insert Indexable Face Mill

• For use with octagonal ONHU08 double side inserts (#6063-0008) with 16 cutting edges which is the most economical insert on the market for face machining application
• Negative radial rake angle and axial rake angle structure combined with thick ONHU insert body improves cutter overall resistance to impact and toughness
• Inserts are not included
• Overall height is 2-1/2″
• D1 is 5.53″
• ap is 0.196″
• Insert screw size is M5 X 14

Specifications

• 5″ X 1-1/2 Bore 45 Degree Octagon 8 Insert Indexable Face Mill
• For use with octagonal ONHU08 double side inserts (#6063-0008) with 16 cutting edges which is the most economical insert on the market for face machining application.
• Negative radial rake angle and axial rake angle structure combined with thick ONHU insert body improves cutter overall resistance to impact and toughness.
• Inserts are not included.
• Overall height is 2-1/2″.
• D1 is 5.53″.
• ap is 0.196″.
• Insert screw size is M5 X 14.
• Weight: 6.5
• Dimensions: L 6, W 6, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
