Precision Boring Head 2″, 3″ and 4″ for milling machine with Shank
High Quality Boring Head with different Shank options. Please see all specification and sizes not hetsite contact with support for any questions.
PRICE INCUDED SHANK. Choise your Shank

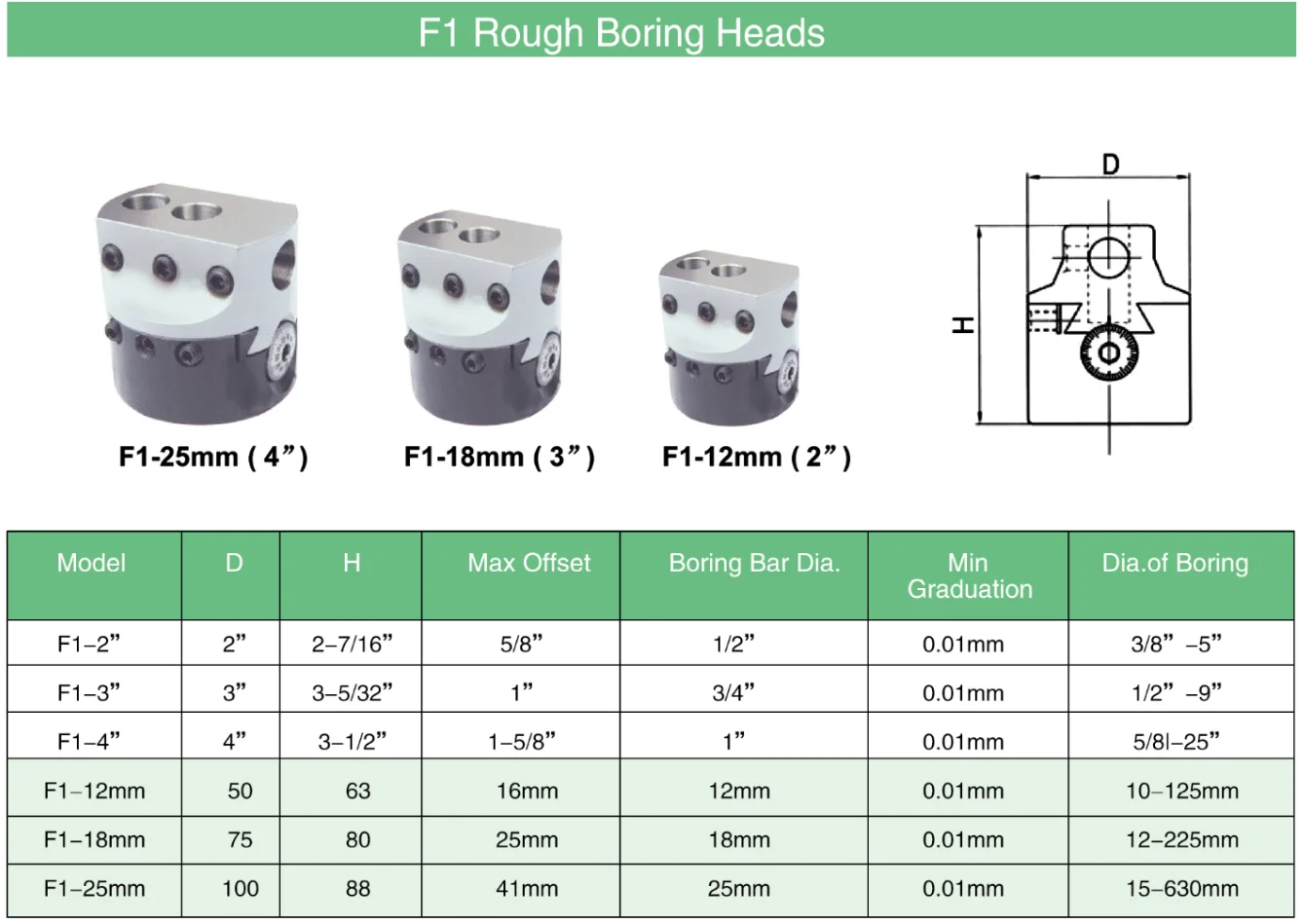

Specification
Boring Head Dia.: 50mm/75mm/100mm
Height: 63mm/80mm/88mm
Max. Offset: 16mm/25mm/41mm
Boring Bar Dia.: 12mm/18mm/25mm
Precision: 0.01mm
Boring diameter: 10-125mm/12-225mm/15-630mm

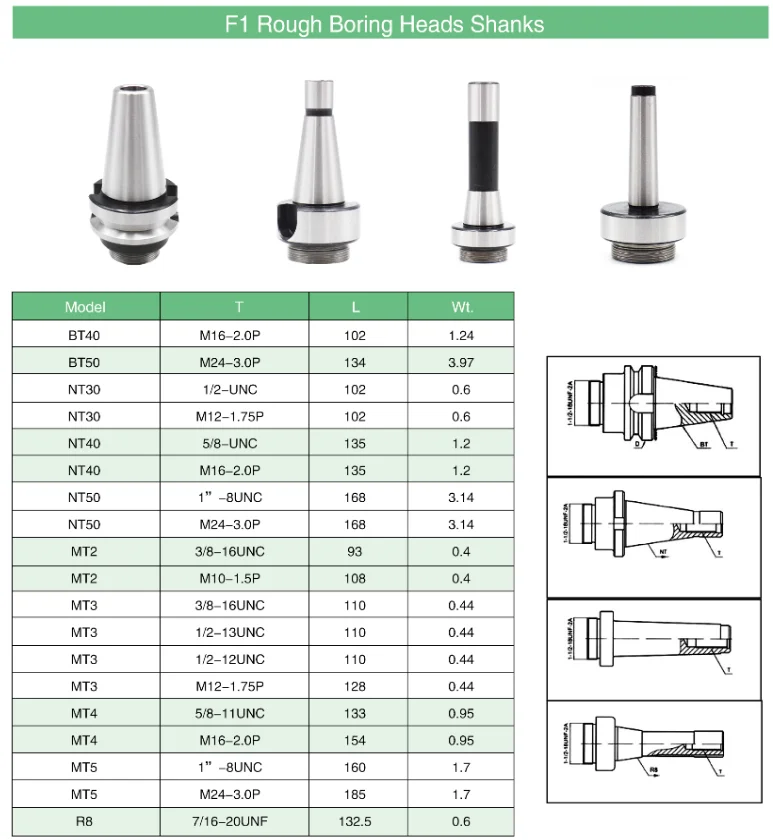

Size chart
Features
Boring head can be fine tuned,durable.
Can be boring, boring end face, cylindrical, stepped hole,and other processing.
