PRO-SERIES 0-0.12/.0005″ CENTERING INDICATOR (4400-0120) (SKU: 4400-0120)
Pro-Series 0-0.12/.0005″ Centering Indicator

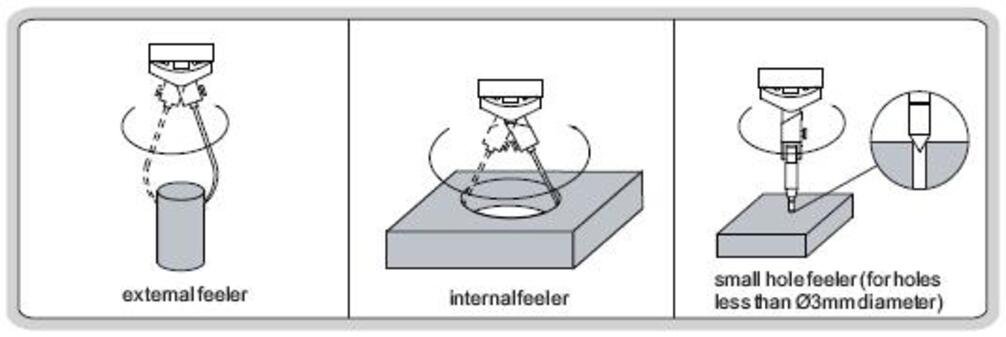

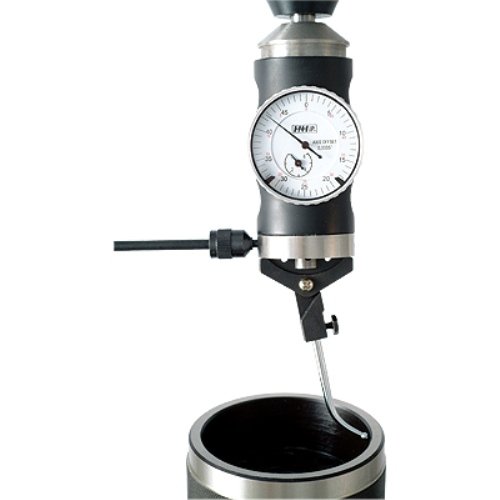

- Provides a simplified method of centering a workpiece or fixture on horizontal or vertical machines, internal or external diameters
- Face of indicator remains stationary in any desired position while the machine spindle rotates, leaving the operator with both hands free to accurately position the machine table
- Length is 6-7/8″
- Shank diameter is 3/8″
- Feeler diameter is 1/8″
- Locating accuracy within .0002″ of true center
- Operating speed not to exceed 800 RPM
- Capacity is 5/32″-12″ internal and up to 12″ external
- Kit includes 3 ID feelers that are 2, 3 & 4″ long, 3 OD feelers that are 2, 3, & 4″ long and 1 center locating feeler

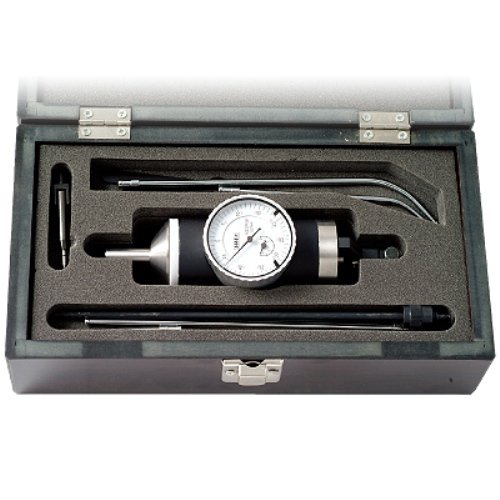

- Comes in a fitted case
Specifications
- Pro-Series 0-0.12/.0005″ Centering Indicator
- Provides a simplified method of centering a workpiece or fixture on horizontal or vertical machines, internal or external diameters.
- Face of indicator remains stationary in any desired position while the machine spindle rotates, leaving the operator with both hands free to accurately position the machine table.
- Length is 6-7/8″.
- Shank diameter is 3/8″.
- Feeler diameter is 1/8″.
- Locating accuracy within .0002″ of true center.
- Operating speed not to exceed 800 RPM.
- Capacity is 5/32″-12″ internal and up to 12″ external.
- Kit includes 3 ID feelers that are 2, 3 & 4″ long, 3 OD feelers that are 2, 3, & 4″ long and 1 center locating feeler.
- Comes in a fitted case.
- Weight: 2.55
- Dimensions: L 3, W 6, H 3
Benefits
- Supports faster setup verification and in-process inspection.
- Helps reduce measurement errors and rework in the shop.
- Appropriate for quality-control routines and repeatability.
Recommended use
- Verify power and connection compatibility before installation.
- Mount securely and protect cables from moving parts.
- Zero and verify readings before critical measurements.
USA Warehouse Stock — Fast U.S. fulfillment.
