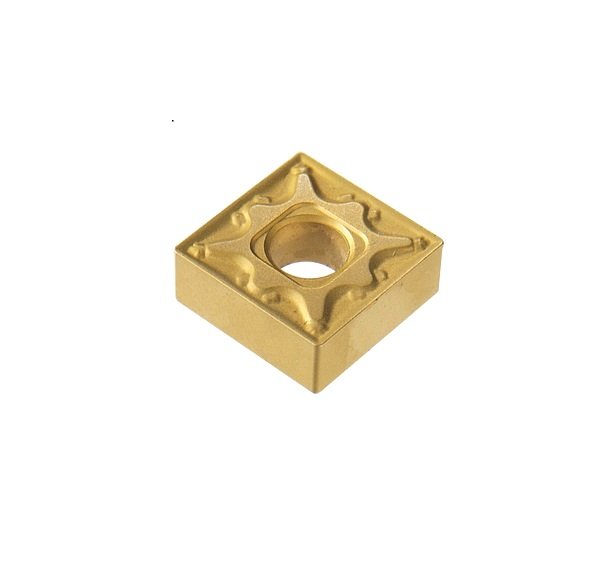

SNMG-432-DF COATED CARBIDE INSERT (6001-4432)

SNMG-432-DF COATED CARBIDE INSERT (6001-4432) (SKU: 6001-4432)

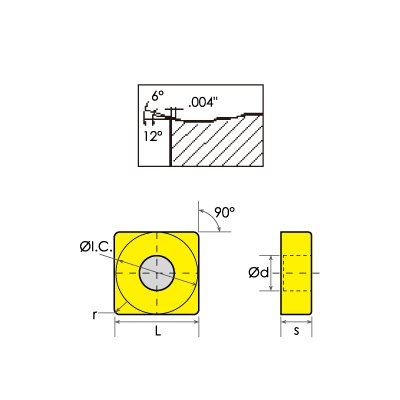

SNMG-432-DF Negative Rake Square Insert

• I.C. is 1/2″
• L is 1/2″
• S is 3/16″
• d is 13/64″
• r is .0315″
• ISO insert number is SNMG120408DF
• Grade XAB749 provides a cutting edge with special strength and toughness in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating
• It is a suitable grade for a wide number of applications
• It is good for finishing, semi-finishing and light roughing of steel, cast steel and stainless steel

Specifications

• SNMG-432-DF Negative Rake Coated Carbide Insert
• I.C. is 1/2″.
• L is 1/2″.
• S is 3/16″.
• d is 13/64″.
• r is .0315″.
• ISO insert number is SNMG120408DF.
• Grade XAB749 provides a cutting edge with special strength and toughness in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating.
• It is a suitable grade for a wide number of applications.
• It is good for finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
