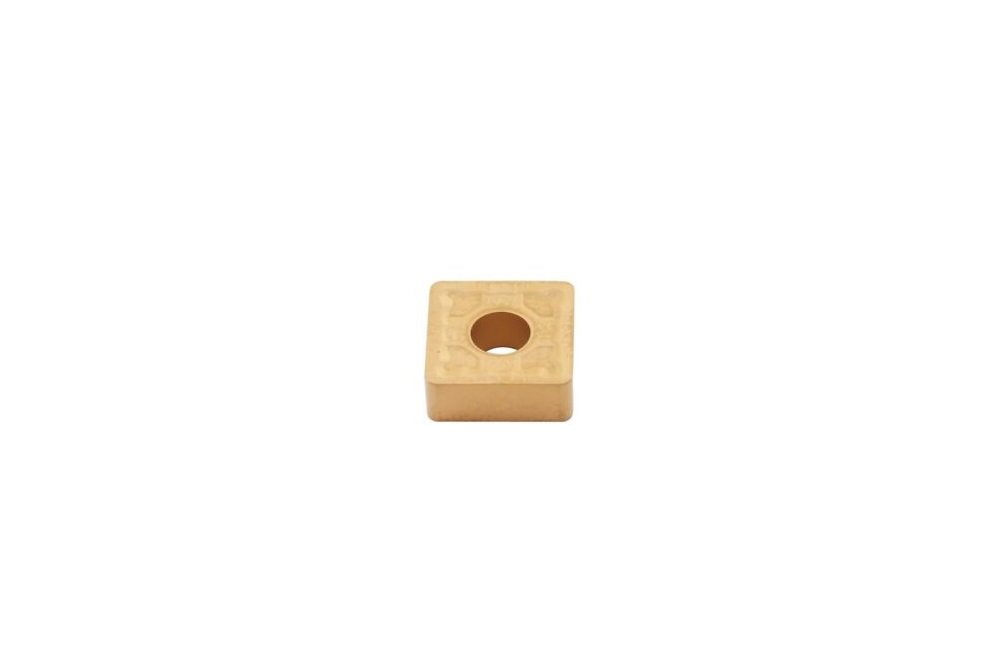

SNMG-434-PM COATED CARBIDE INSERT (6001-6434)

SNMG-434-PM COATED CARBIDE INSERT (6001-6434) (SKU: 6001-6434)

SNMG-434-PM SQUARE (-RAKE) INSERT-XAB749 | PM – With stronger cutting edge, it is better for intermittent cutting than -DM, with wider cutting zone of steel materials | XAB749: Cutting edge with special strength and toughness, in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating. It is a suitable grades for a wide application. It is good for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.

Specifications

• SNMG-434-PM Negative Rake Coated Carbide Insert

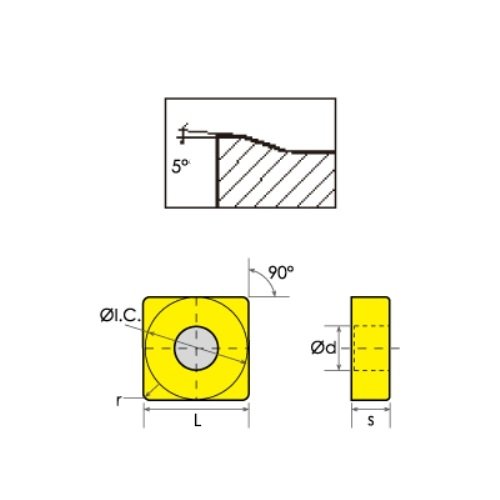

• I.C. is 1/2″.
• L is 1/2″.
• S is 3/16″.
• d is 13/64″.
• r is .0630″.
• ISO Insert No. is SNMG120416PM.
• Has a stronger cutting edge and a wider cutting zone that is better for intermittent cutting.
• Grade XAB749 provides a cutting edge with special strength and toughness in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating.
• It is a suitable grade for a wide number of applications.
• It is good for finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
