TNMG-434 C-5 TiN COATED CARBIDE INSERT (6002-0024)

TNMG-434 C-5 TiN COATED CARBIDE INSERT (6002-0024) (SKU: 6002-0024)

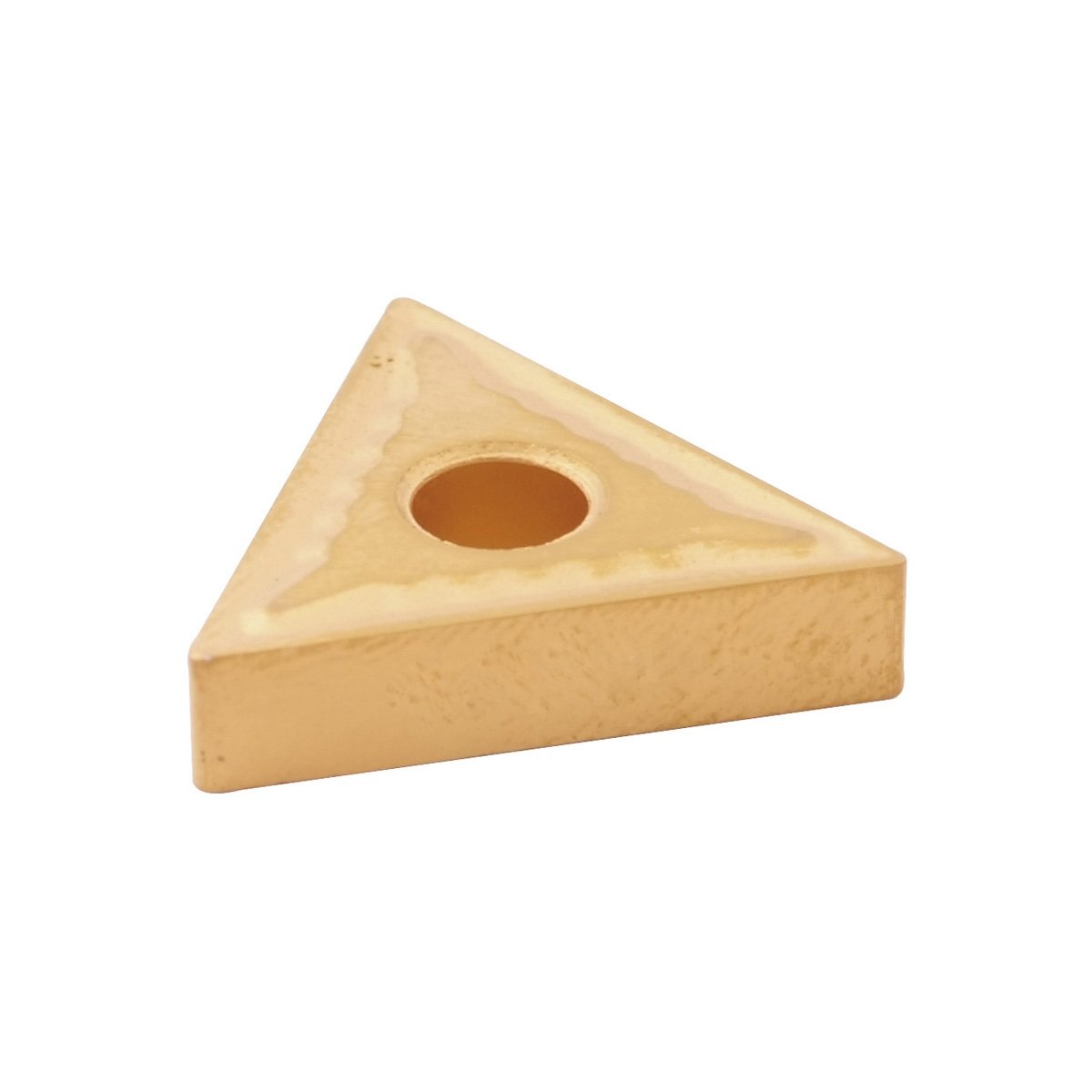

TNMG-434 C-5 TiN Coated Carbide Insert with Chipbreaker

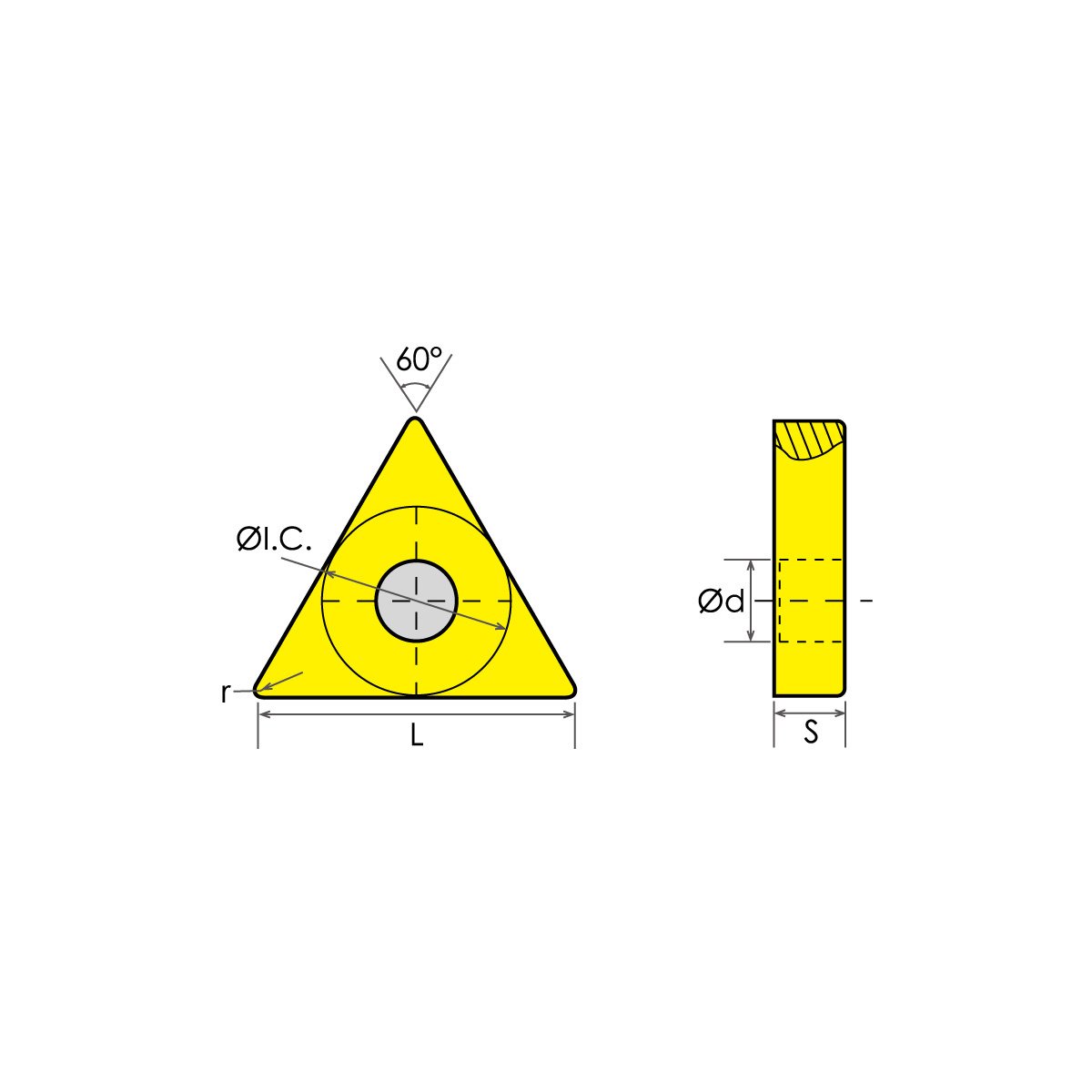

• I.C. is 7/8″
• L is 7/8″
• S is 3/16″
• d is 13/64″
• r is .0630″
• ISO insert number is TNMG220416
• 0° relief angle
• For turning and milling carbon and alloy steels, tool steel and stainless steel
• Provides a longer life than uncoated grades
• Works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron

Specifications

• TNMG-434 C-5 TiN Coated Carbide Insert with Chipbreaker
• I.C. is 7/8″.
• L is 7/8″.
• S is 3/16″.
• d is 13/64″.
• r is .0630″.
• ISO insert number is TNMG220416.
• 0° relief angle.
• For turning and milling carbon and alloy steels, tool steel and stainless steel.
• Provides a longer life than uncoated grades.
• Works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron.
• Weight: 0.01
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
